Diabolo - J38118

We have created the reference J38118 in our "Diabolo" range. This play equipment is accessible from 2 years. It can accommodate up to 25 users.

The size of the module is: 9.22 m length, 4.70 m width, 3.00 m. high. The free fall height (FFH) is 1.80 m.

Other finishes available

29 play functions

climbing
Climbing x1
Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.
role play
Role play x3
Role plays promote the child's intellectual and social skills.
sliding
Sliding x2
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x3
By playing together, children learn how to interact with other personalities and behaviors.
resting
Resting x1
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
handling
Handling x4
A great exercise for developing motor skills and abilities in young children while having fun.
taking shelter
Taking shelter x1
A refuge where the children can take shelter ensures that children have their own space.
thinking
Thinking x2
Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.
tactile stimulation
Tactile stimulation x4
Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.
climbing
Climbing x4
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
getting across
Getting across x4
 Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
Show more

Specifications

Age range: 2+
Number of users: 25 users
FFH : 1.80 m
Size: 9.22 x 4.70 x 3.00 m

Equipment installation

Number of installers: 2
Installation time: 30:00:00
Concrete volume: 0.60 m3
Surface: 62.50 m2
Total weight: 758.84 kg
Weight of the heaviest element: 46.43 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - Diabolo - J38118
Video - Diabolo - J38118

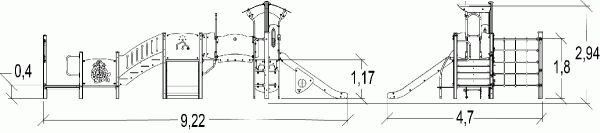

Side view
Side view

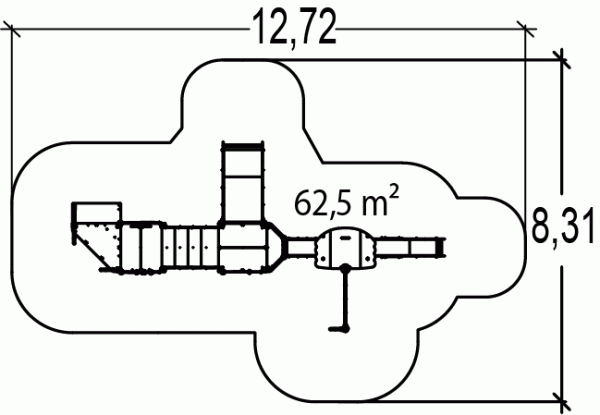

View from above
View from above

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the climbing wall

The platform and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The roof

The roof is made of 10mm thick polyethylene plates.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The sliding surfaces

The sliding surfaces are made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The climbing holds

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
