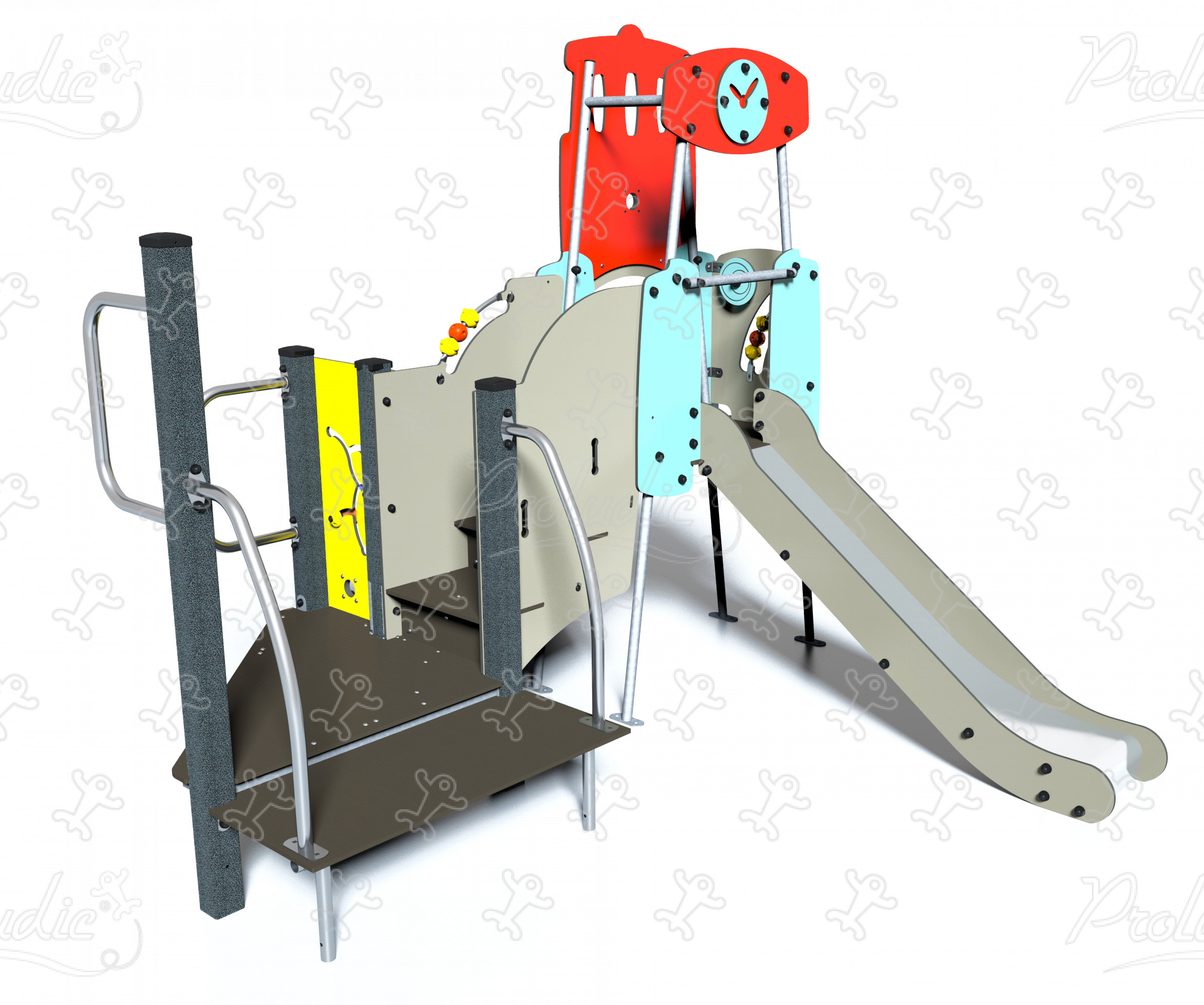

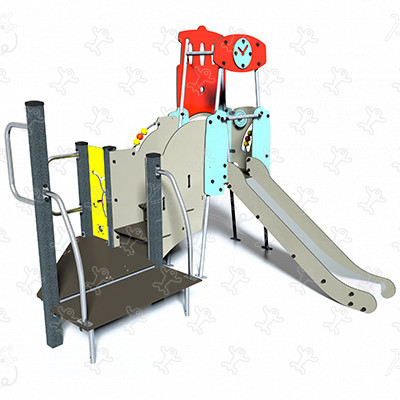

We have created the reference J4020 in our "City" range. This play equipment is accessible from 2 years. It can accommodate up to 14 users.

The size of the module is: 3.05 m length, 3.26 m width, 2.60 m. high. The free fall height (FFH) is 1.00 m.

17 play functions

climbing
Climbing x1
Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.
role play
Role play x2
Role plays promote the child's intellectual and social skills.
sliding
Sliding x1
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x3
By playing together, children learn how to interact with other personalities and behaviors.
handling
Handling x3
A great exercise for developing motor skills and abilities in young children while having fun.
visual stimulation
Visual stimulation x1
It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.
thinking
Thinking x1
Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.
tactile stimulation
Tactile stimulation x2
Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.
climbing
Climbing x2
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
getting across
Getting across x1
 Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
Show more

Specifications

Age range: 2+
Number of users: 14 users
FFH : 1.00 m
Size: 3.05 x 3.26 x 2.60 m

Equipment installation

Number of installers: 2
Installation time: 08:00:00
Concrete volume: 0.40 m3
Surface: 30.00 m2
Total weight: 318.95 kg
Weight of the heaviest element: 26.36 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Side view
Side view

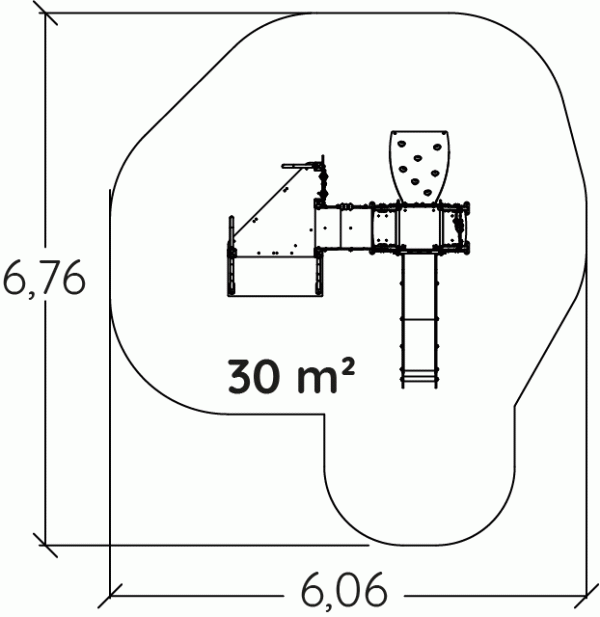

View from above
View from above

Materials

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platform

The platform is made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platform. Read more

The steps

The steps are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The sliding surface

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The abacus spheres

The abacus spheres are made of polycarbonate sheets.

Plastic parts

Plastic parts are made of injected polyamide.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
