Climbing equipment - Triple Pyramid - J4811

We have created the reference J4811 in our "Climbing equipment" range. This play equipment is accessible from 6 years. It can accommodate up to 35 users.

The size of the module is: 8.15 m length, 9.40 m width, 5.00 m. high. The free fall height (FFH) is 2.60 m.

6 play functions

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Climbing x1

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Hanging x1

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Specifications

Age range:	6+
Number of users:	35 users
FFH :	2.60 m
Size:	8.15 x 9.40 x 5.00 m

Equipment installation

Number of installers:	4
Installation time:	04:00:00
Concrete volume:	5.60 m3
Surface:	110.00 m2
Total weight:	445.78 kg
Weight of the heaviest element:	40.88 kg

Environmental Indicators

Repairability

9.51 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

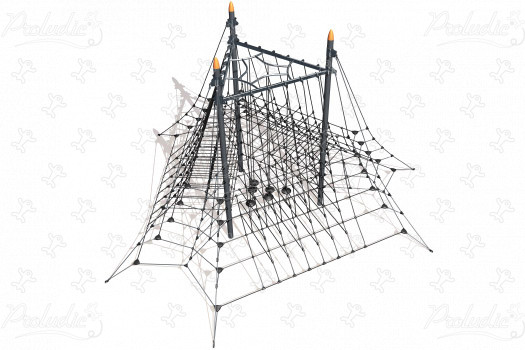

Triple Pyramid J4811 playgrounds climbing & balancing play equipment climbing equipment image 3d

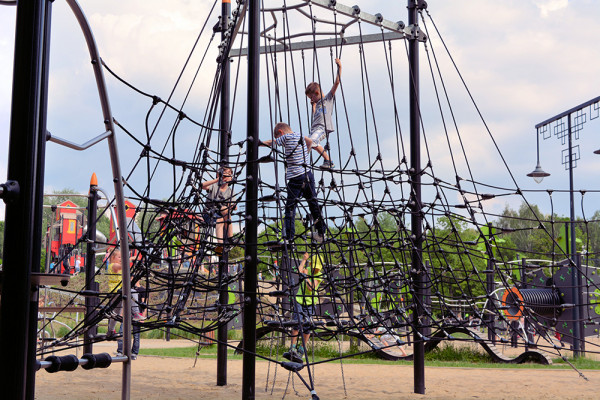

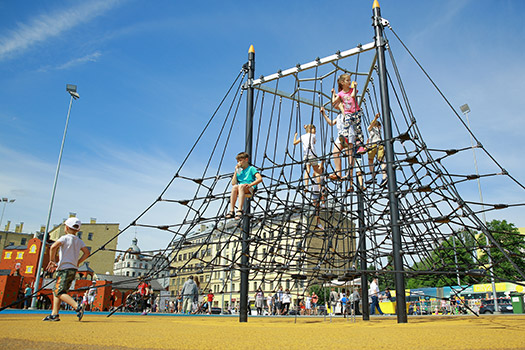

Triple Pyramid J4811 playgrounds climbing & balancing play equipment climbing equipment image photo

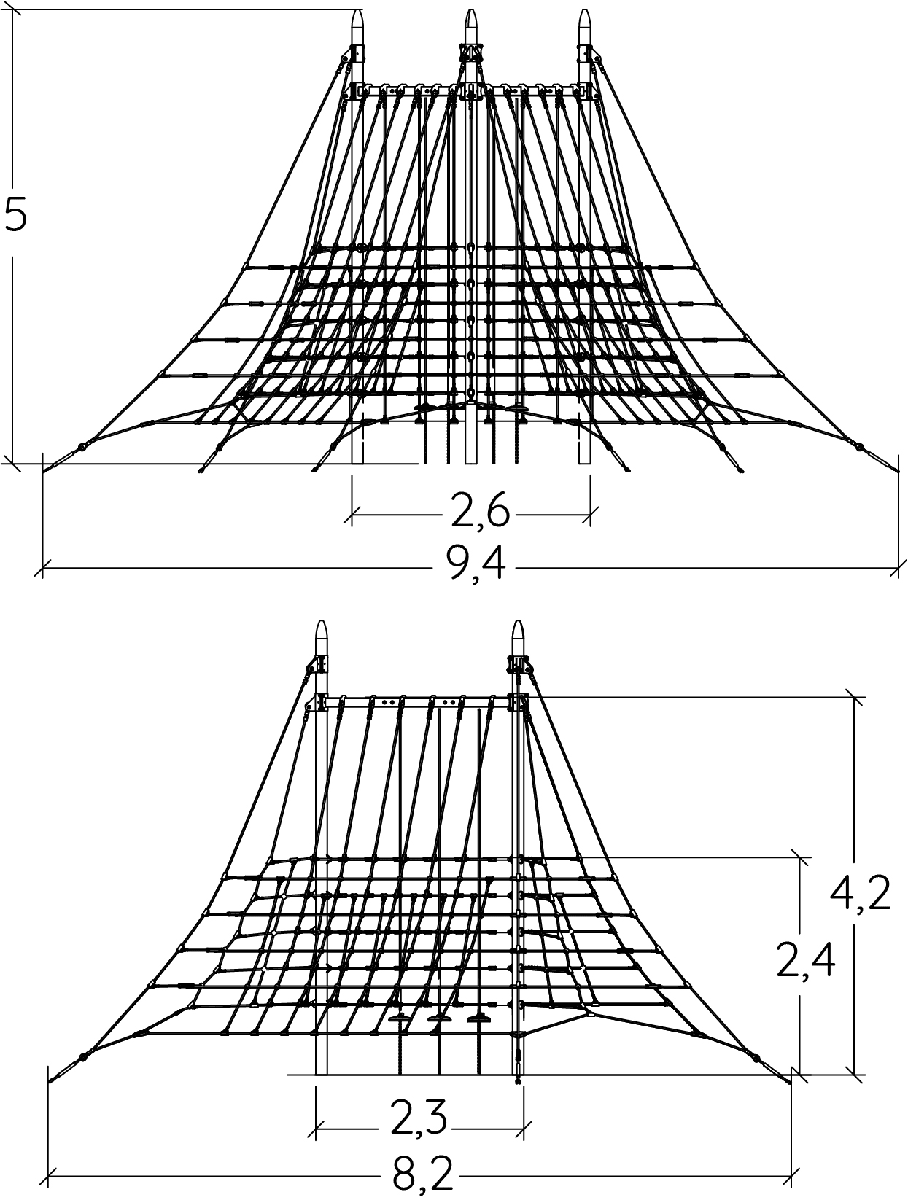

Triple Pyramid J4811 playgrounds climbing & balancing play equipment climbing equipment image side view

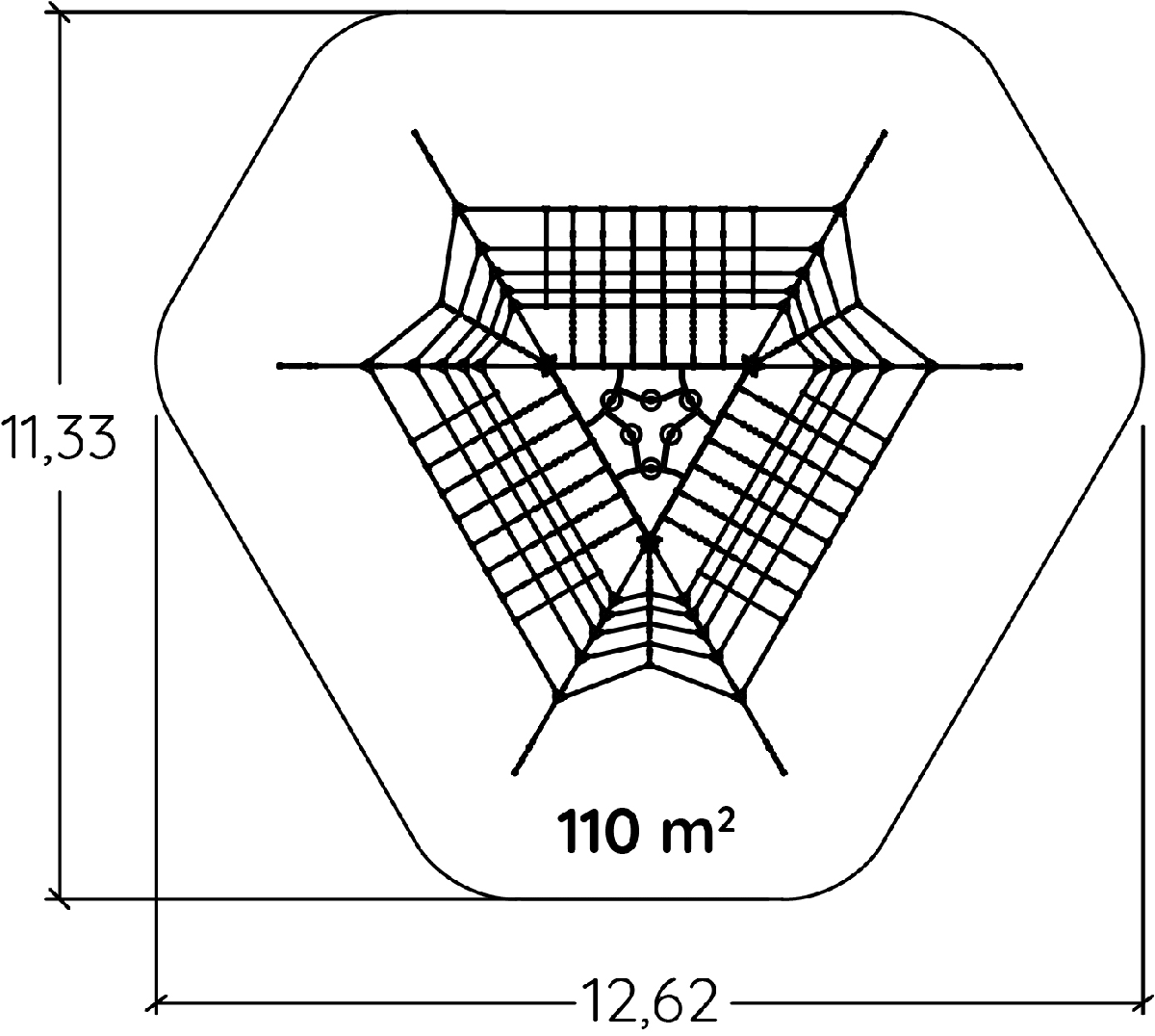

Triple Pyramid J4811 playgrounds climbing & balancing play equipment climbing equipment image view from above

Materials

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of rotary moulded polyethylene. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
