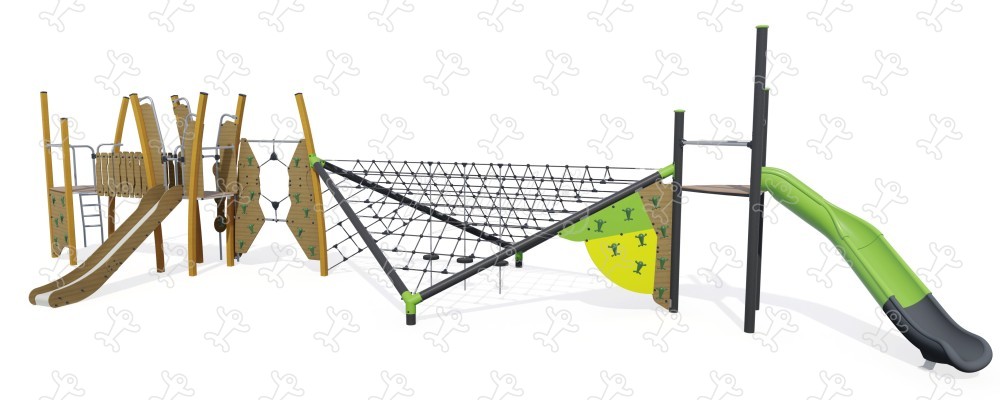

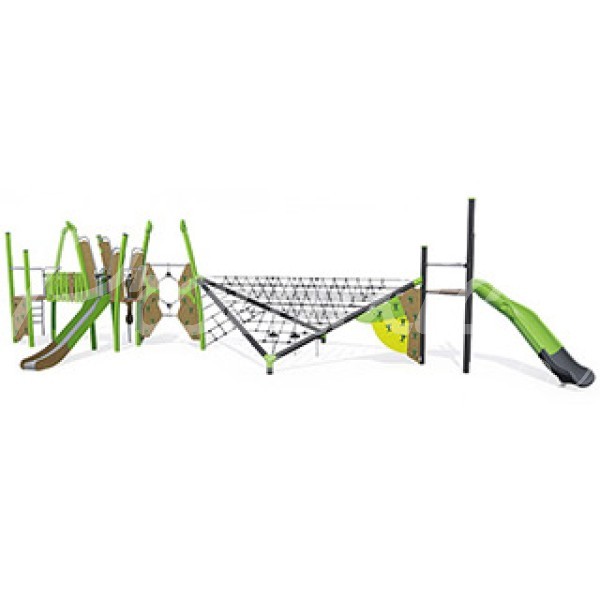

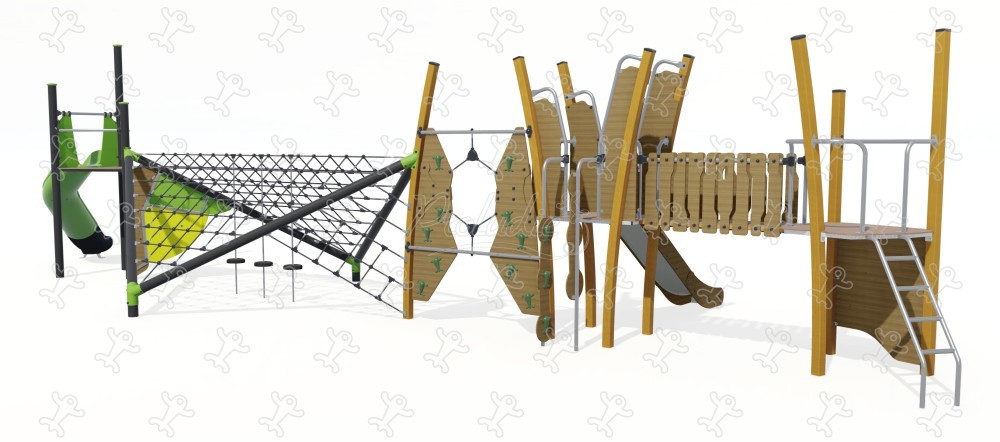

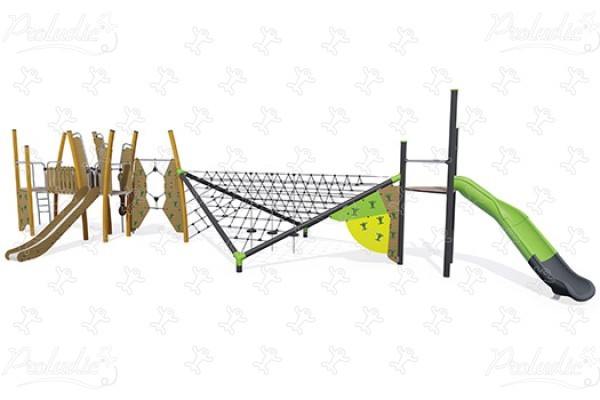

Climbing equipment - J57012-C

We have created the reference J57012-C in our "Climbing equipment" range. This play equipment is accessible from 3 years. It can accommodate up to 48 users.

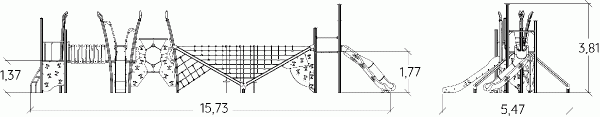

The size of the module is: 15.73 m length, 5.47 m width, 3.81 m. high. The free fall height (FFH) is 2.35 m.

Other finishes available

J57012®

21 play functions

Climbing x4

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Sliding x2

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x3

By playing together, children learn how to interact with other personalities and behaviors.

Resting x3

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x4

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	3+
Number of users:	48 users
FFH :	2.35 m
Size:	15.73 x 5.47 x 3.81 m

Equipment installation

Number of installers:	3
Installation time:	28:00:00
Concrete volume:	1.00 m3

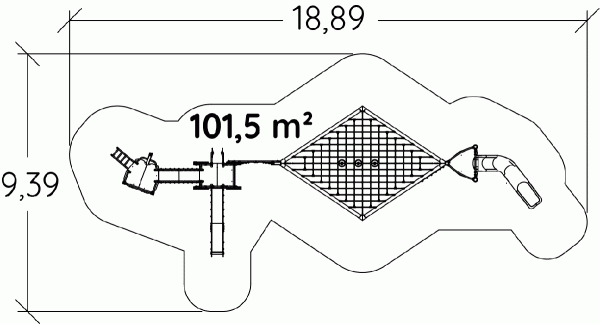

Surface:	101.50 m2
Total weight:	939.90 kg
Weight of the heaviest element:	33.65 kg

Environmental Indicators

Repairability

9.51 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The junction pieces are made of painted galvanised steel.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
