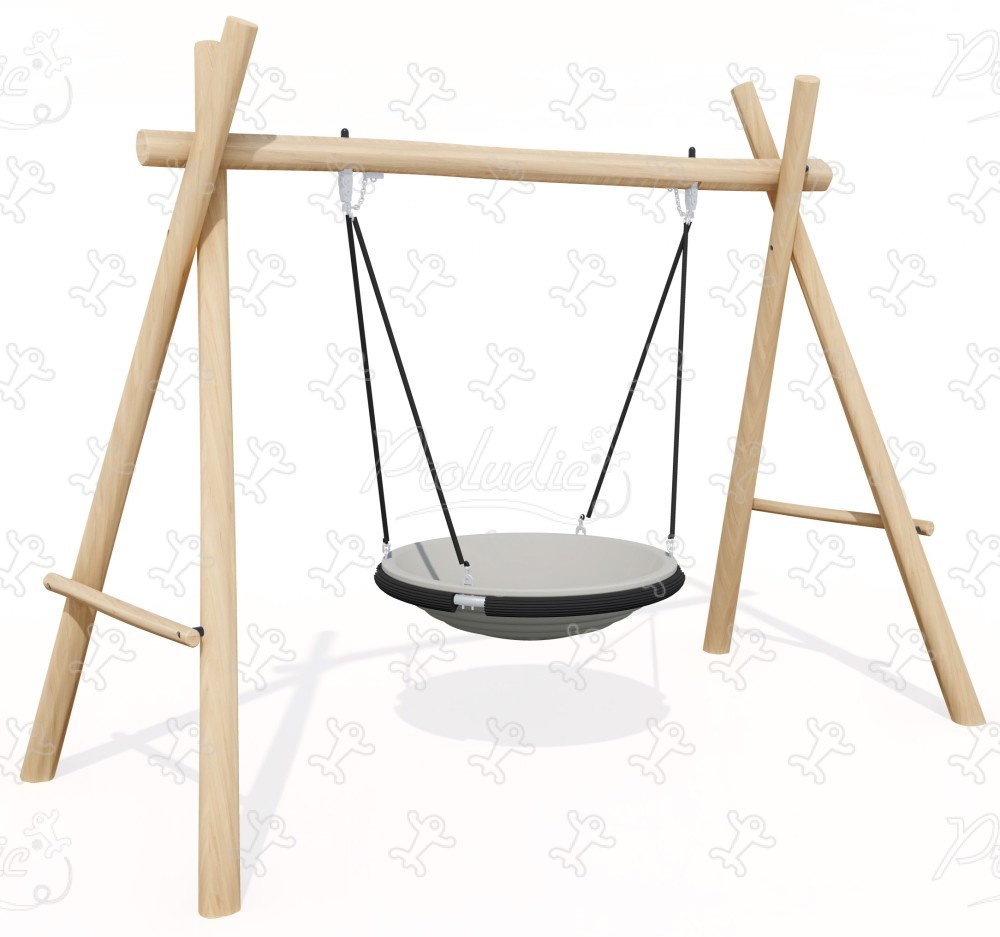

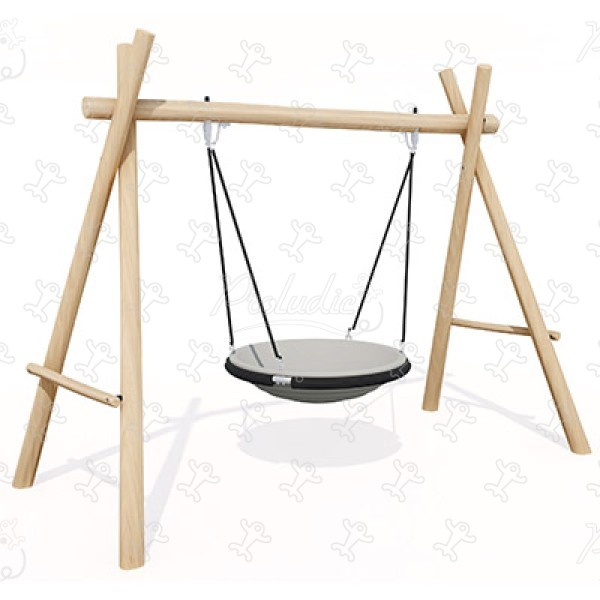

Swings - Pod seat - J491-G®

We have created the reference J491-G® in our "Swings" range. This play equipment is accessible from 2 years. It can accommodate up to 5 users.

The size of the module is: 3.90 m length, 1.75 m width, 2.89 m. high. The free fall height (FFH) is 1.55 m.

Other finishes available

3 play functions

meeting
Meeting x1
By playing together, children learn how to interact with other personalities and behaviors.
resting
Resting x1
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
swinging
Swinging x1
To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Specifications

Age range: 2+
Number of users: 5 users
FFH : 1.55 m
Size: 3.90 x 1.75 x 2.89 m

Equipment installation

Number of installers: 2
Installation time: 03:00:00
Concrete volume: 0.32 m3
Surface: 16.00 m2
Total weight: 263.37 kg
Weight of the heaviest element: 43.18 kg

Environmental Indicators

Repairability

Repairability

9.29 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

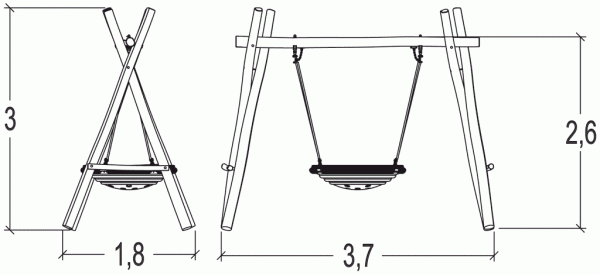

Side view
Side view

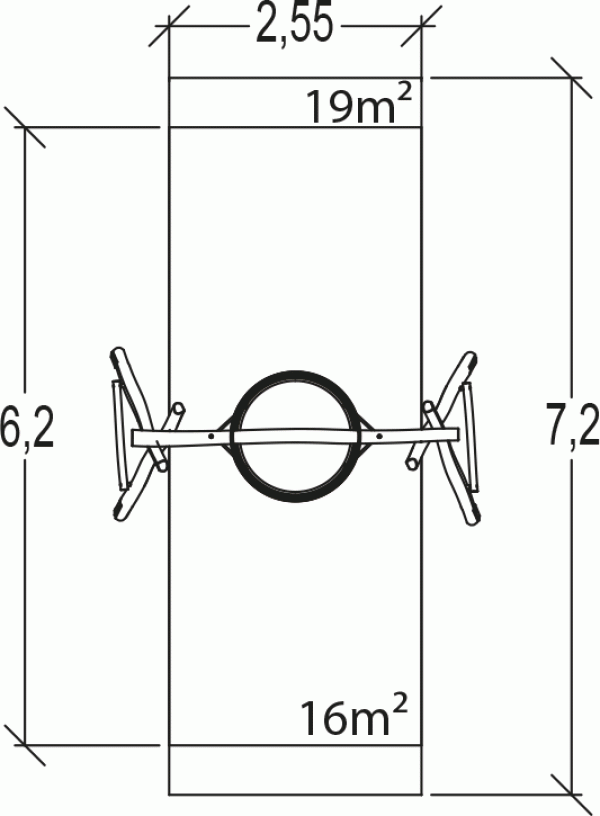

View from above
View from above

Materials

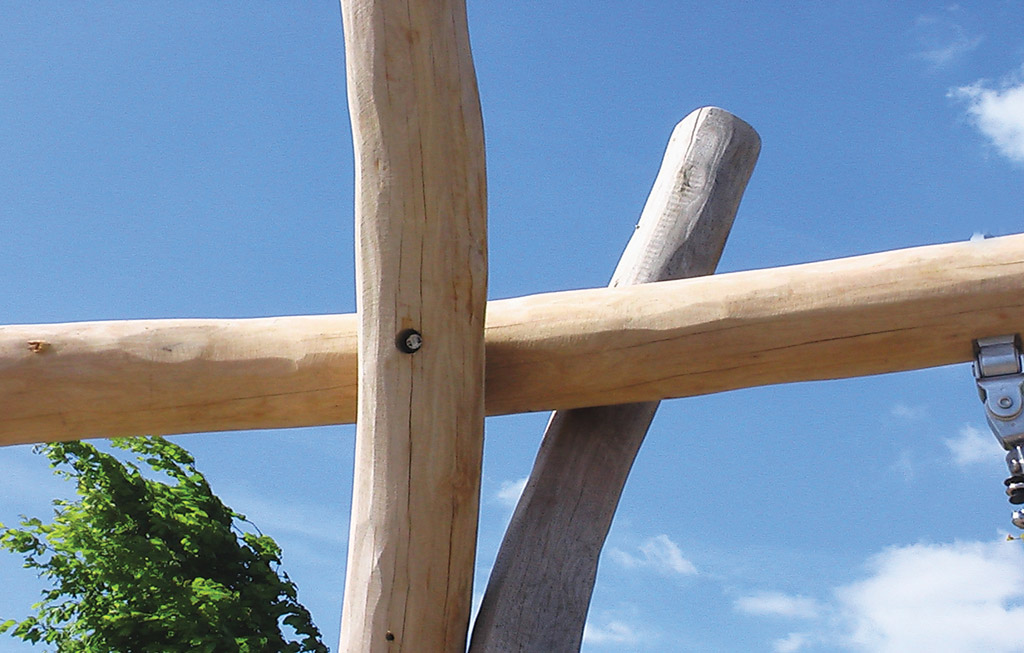

The posts and the horizontal beam

The posts and the horizontal beam (diameter 120 to 140mm), are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does... not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

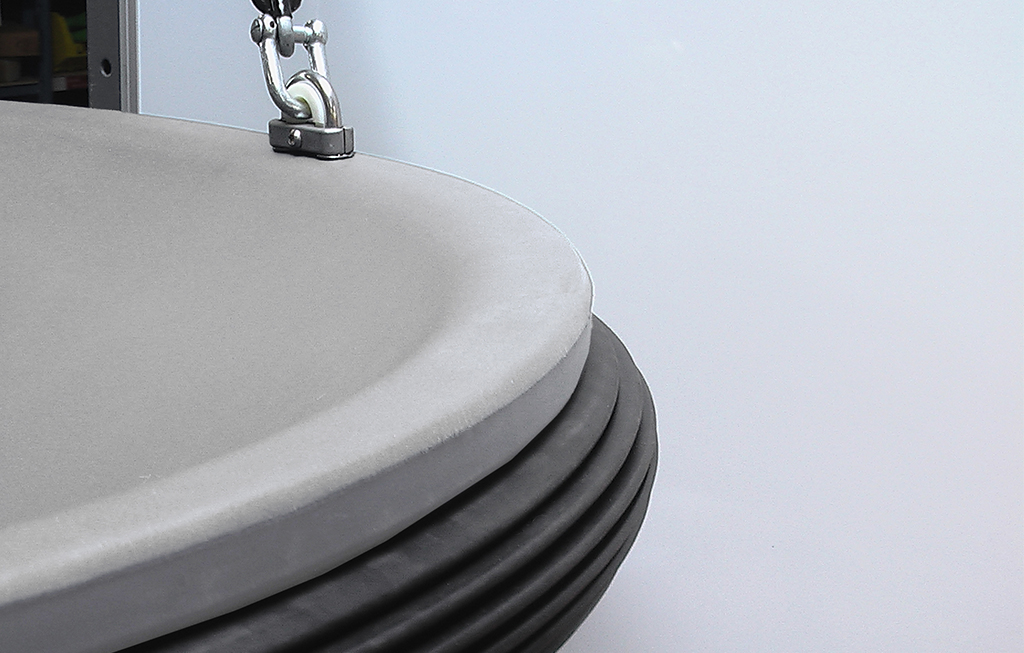

The pod

The pod is made from a single piece of 30%-recycled rotomoulded polyethylene. It is fixed to a stainless steel frame that is fitted with buffers. The pod is... suspended from galvanised steel ropes covered by PVC. Read more

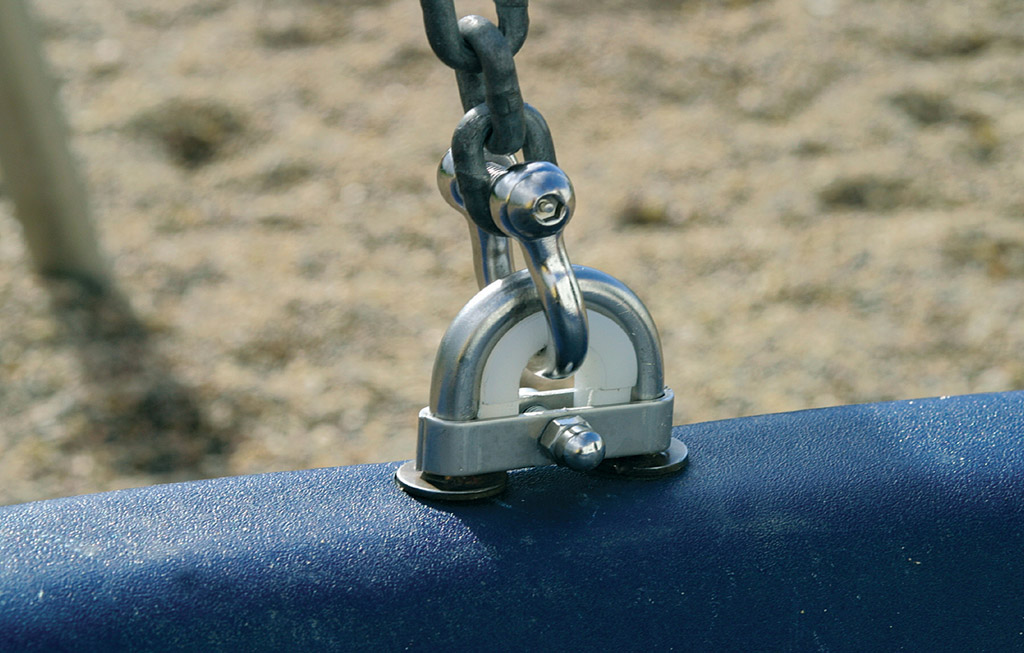

PVC sliding rings

PVC sliding rings are fitted to limit the wear of the metal parts over time. The rings are accessed by a vandal proof, stainless steel shackle. The swing chains are... made of galvanised steel. Read more

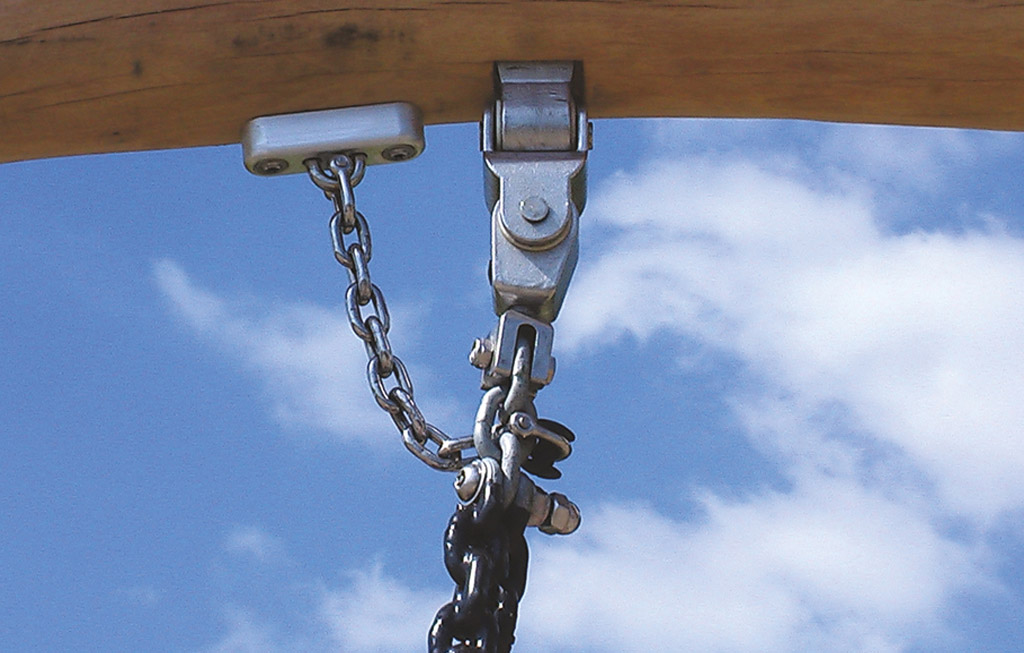

The double joined swing mechanism

The double joined swing mechanism is made of stainless steel. A safety chain provides additional support for the pod.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
