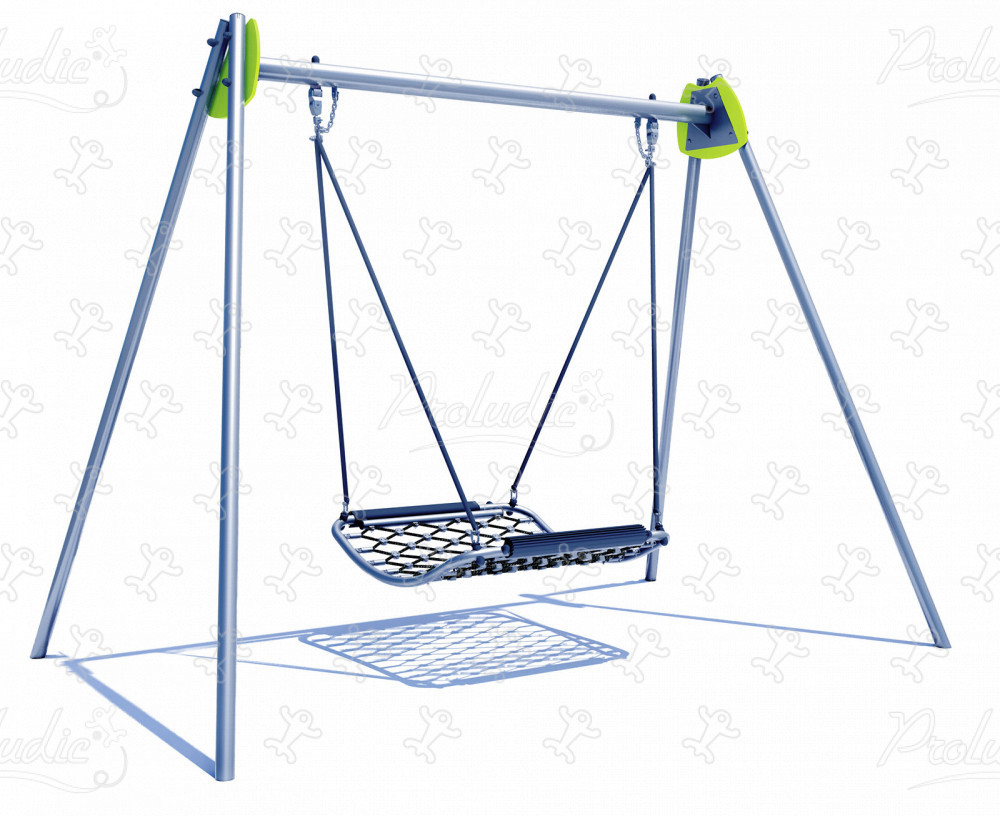

Swings - Rope Basket Swing - J445®

We have created the reference J445® in our "Swings" range. This play equipment is accessible from 2 years. It can accommodate up to 5 users.

The size of the module is: 3.36 m length, 2.08 m width, 2.58 m. high. The free fall height (FFH) is 1.42 m.

3 play functions

Swinging x1

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Specifications

Age range:	2+
Number of users:	5 users
FFH :	1.42 m
Size:	3.36 x 2.08 x 2.58 m

Equipment installation

Number of installers:	2
Installation time:	04:00:00
Concrete volume:	0.30 m3

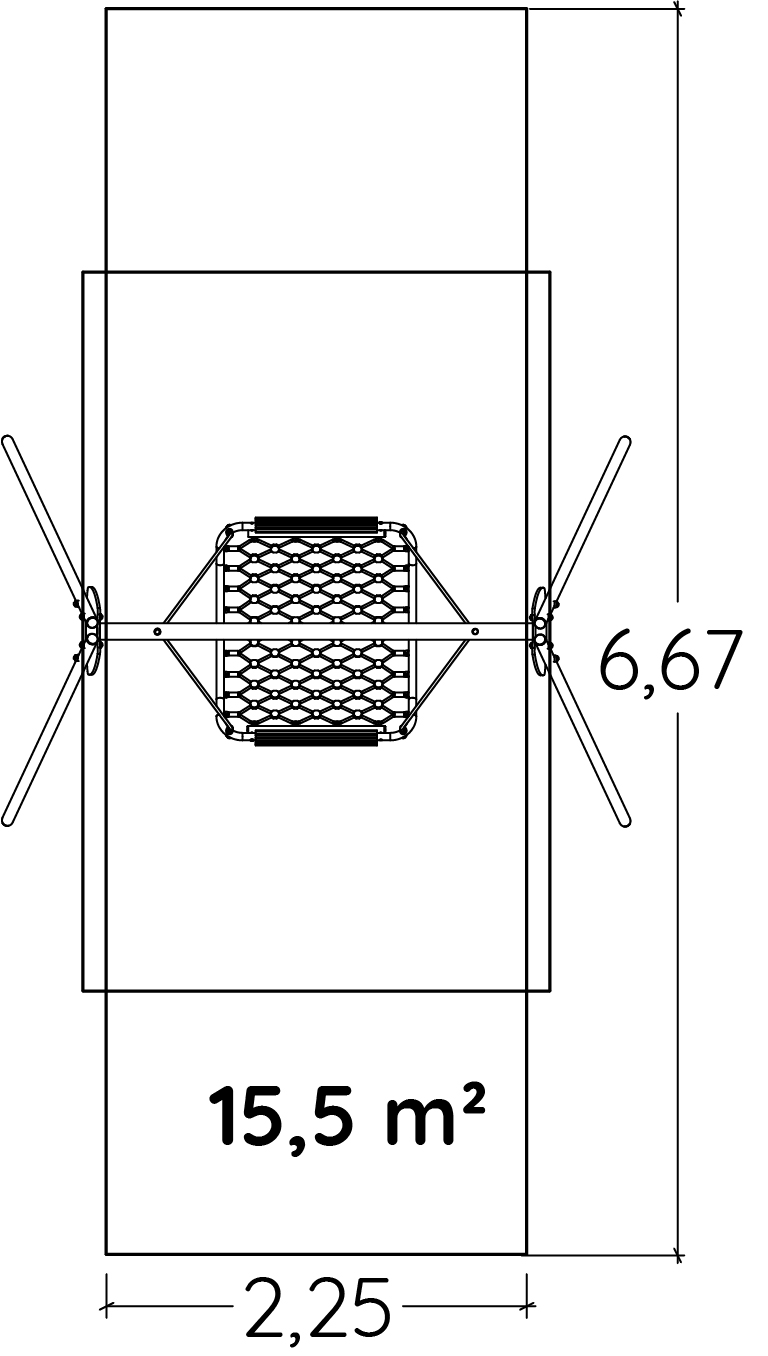

Surface:	15.50 m2
Total weight:	119.20 kg
Weight of the heaviest element:	28.01 kg

Environmental Indicators

Repairability

9.49 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

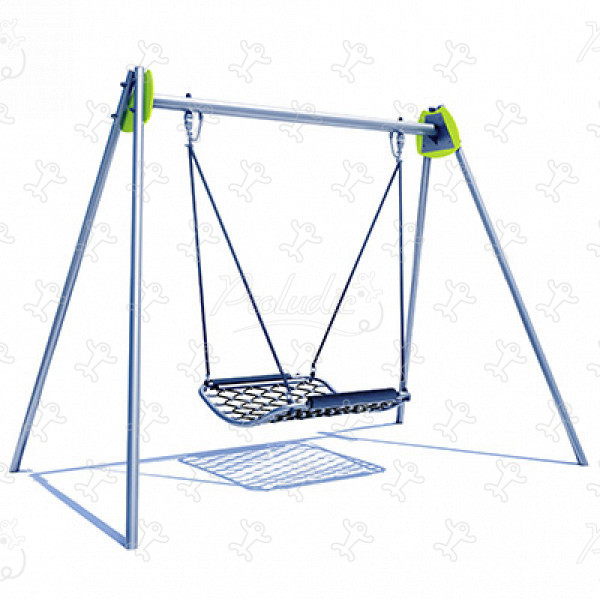

Rope Basket Swing J445® playgrounds traditional playground equipment swings image 3d

Rope Basket Swing J445® playgrounds traditional playground equipment swings image side view

Rope Basket Swing J445® playgrounds traditional playground equipment swings image view from above

Materials

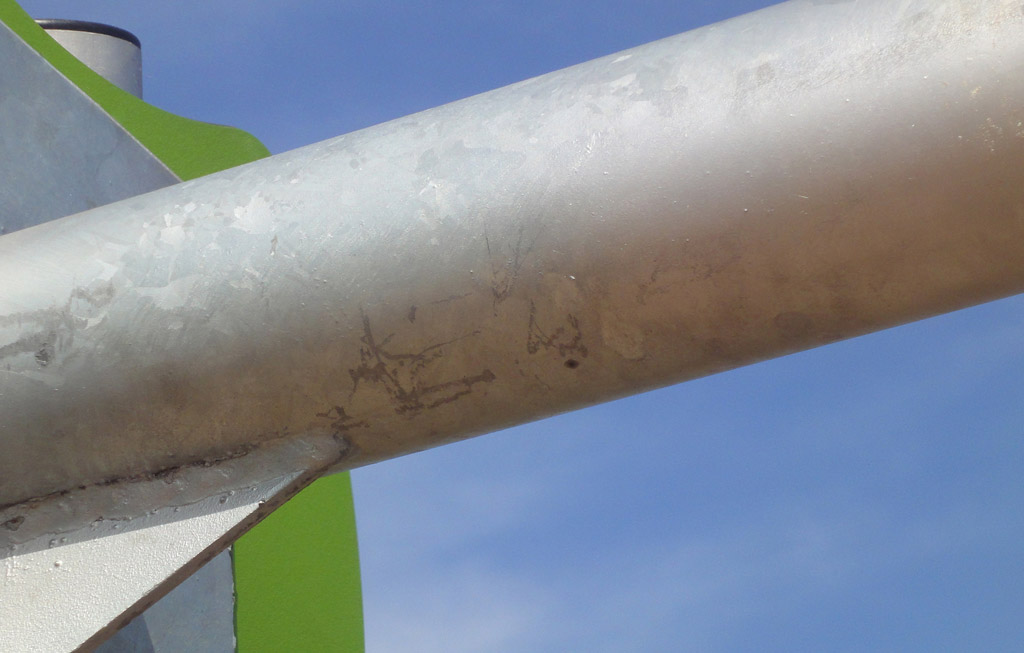

The horizontal beam is manufactured from 89mm diameter galvanised steel.

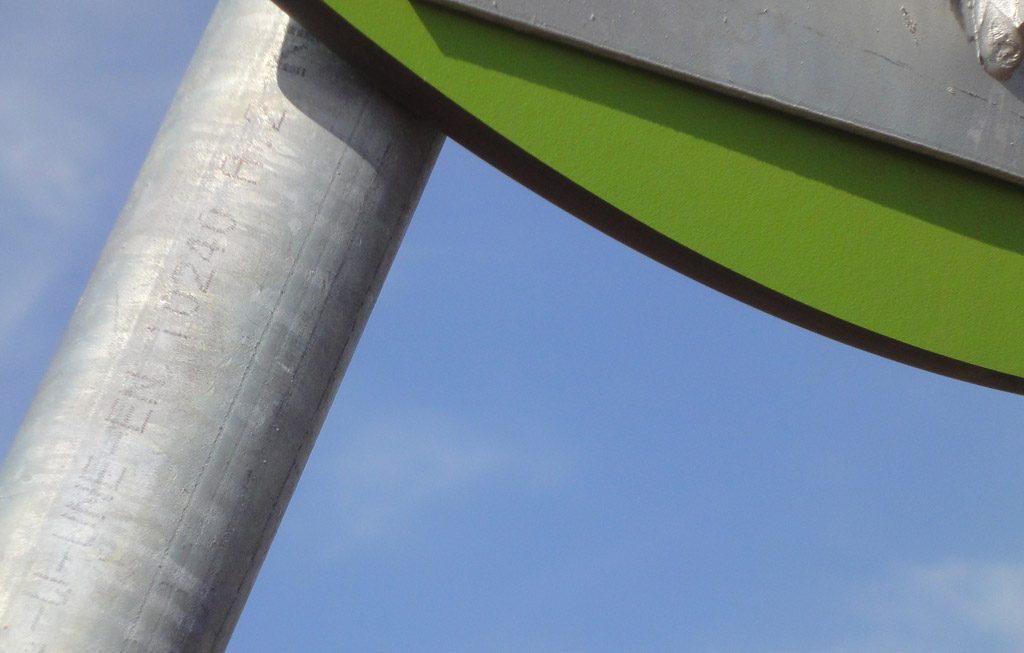

The support legs are made from 60mm galvanised steel.

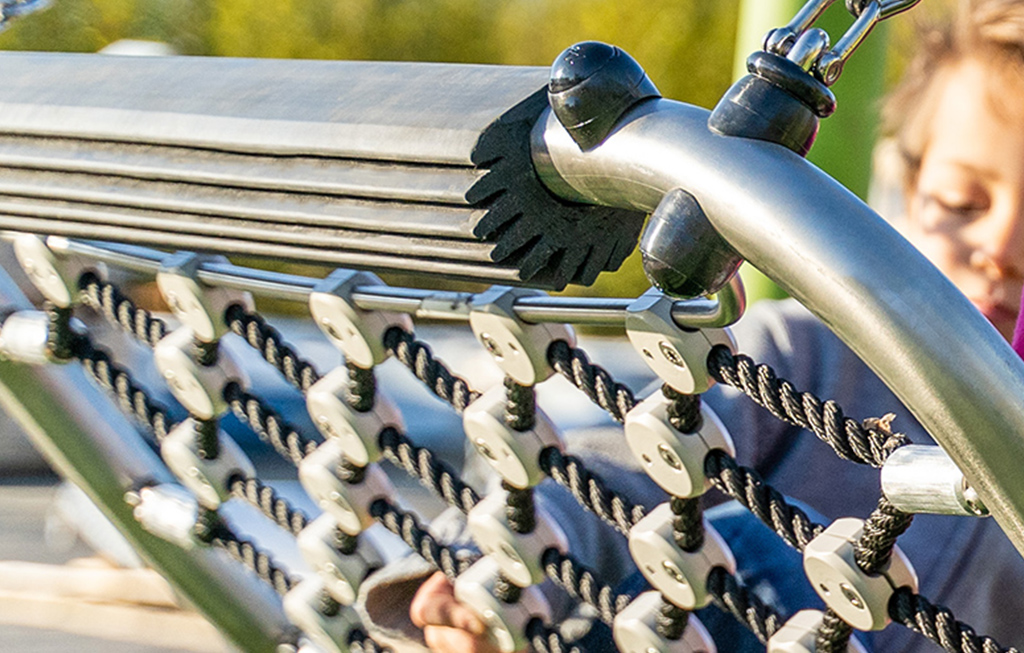

The braided rope seat is made of galvanised steel, covered in polyester. The connecting parts are in painted aluminium. The seat is fitted to a stainless steel frame... structure, made up of two 40 mm diameter posts, and is suspended from small link stainless steel chains covered with thermal retracted polyethylene. Read more

The double joined swing mechanism is made of stainless steel. A safety chain provides additional support for the pod.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
