Bench - Street Workout Equipment - J5241

We have created the reference J5241 in our "ACTI’Street" range. This activity equipment is accessible from 14 years. It can accommodate up to 1 user.

The size of the module is: 1.65 m length, 0.78 m width, 1.10 m. high. The free fall height (FFH) is 0.95 m.

In short

Sports Equation

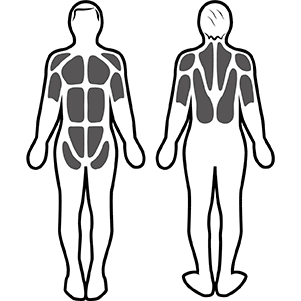

Muscle stimulation

2 sports activities

Push-ups x1

Abs x1

Specifications

Age range:	14+
Number of users:	1 user
FFH :	0.95 m
Size:	1.65 x 0.78 x 1.10 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.30 m3
Surface:	16.00 m2
Total weight:	63.16 kg
Weight of the heaviest element:	14.08 kg

Environmental Indicators

Repairability

9.17 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Bench J5241 sport and fitness acti’fun acti’street image 3d

Bench J5241 sport and fitness acti’fun acti’street image side view

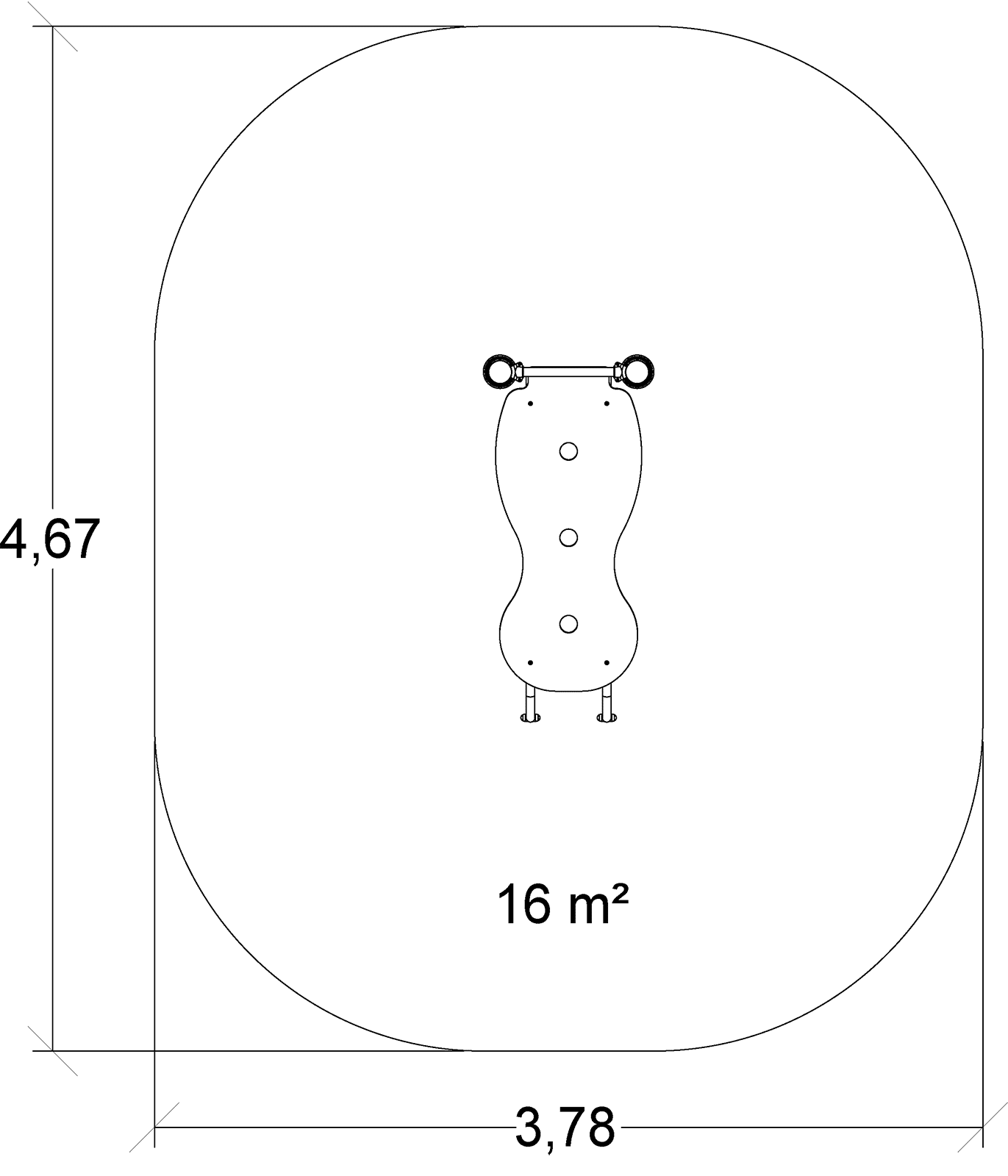

Bench J5241 sport and fitness acti’fun acti’street image view from above

Materials

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. Read more

The tubes are made of stainless steel (diameter 40mm), coated with epoxy paint (RAL 9005).

The fixing collars are made of painted aluminium.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
