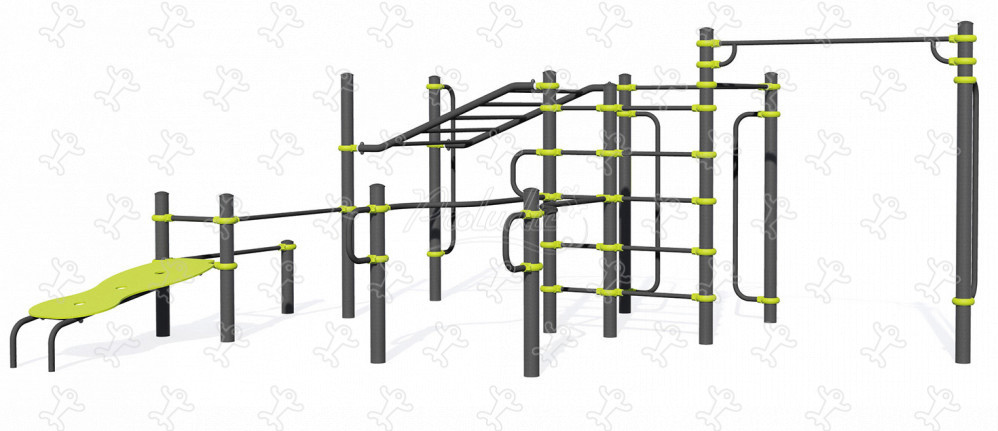

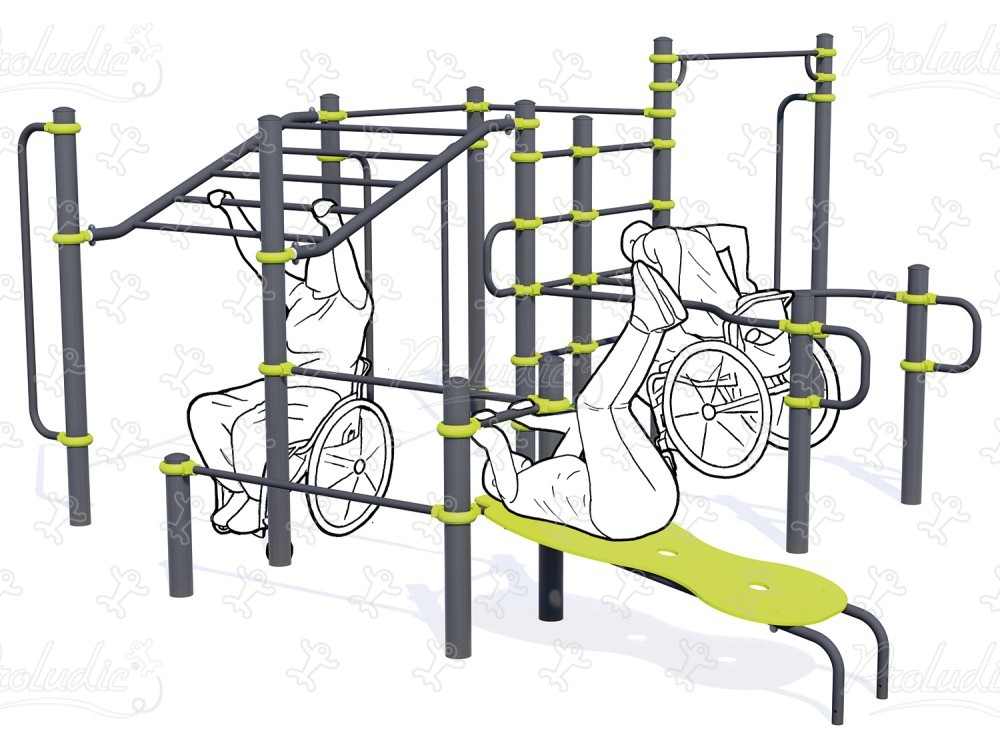

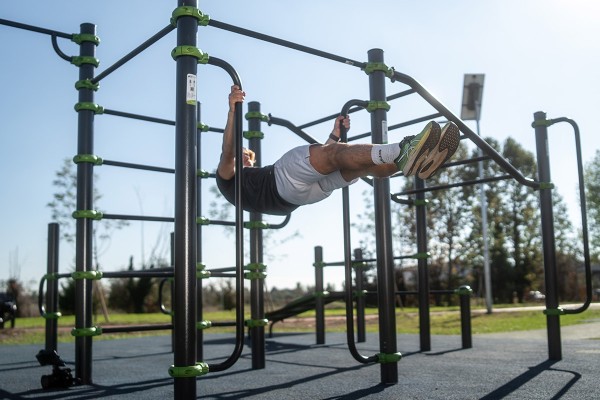

We have created the reference J5219® in our "Street Workout" range. This module is accessible from 14 years. It can accommodate up to 16 users.

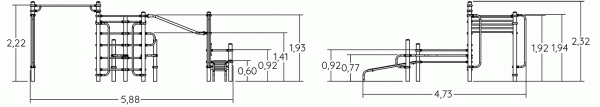

The size of the module is: 5.88 m wide, 4.73 m. deep, 2.32 m. high. The free fall height (FFH) is 1.70 m.
Specifications
| Age range: | 14+ |
| Number of users: | 16 users |
| FFH : | 1.70 m |
| Size: | 5.88 x 4.73 x 2.32 m |
Equipment installation
| Number of installers: | 3 |
| Installation time: | 10:00:00 |
| Concrete volume: | 2.20 m3 |

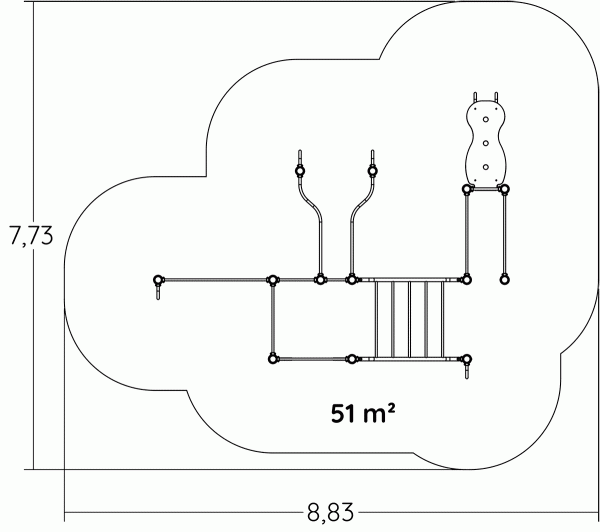

| Surface: | 50.50 m2 |
| Total weight: | 393.99 kg |
| Weight of the heaviest element: | 22.86 kg |
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification
- JXXXX TÜV certification
- JXXXX* Proludic Certification
Materials
The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. Read more
The fixing elements are made of painted aluminium.
The tubes are made of electro-galvanized steel (diameter 34 mm) and stainless steel (diameter 40 mm), coated with epoxy paint. Electrogalvanization ensures... corrosion resistance and gives a high quality finish. Stainless steel guarantees the longevity and robustness of the equipment over time. The epoxy paint provides better grip. Read more
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
