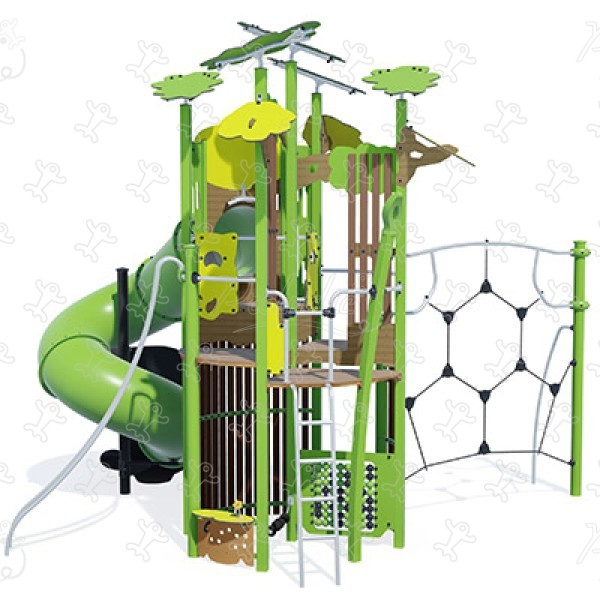

Maxi Ka'Yop

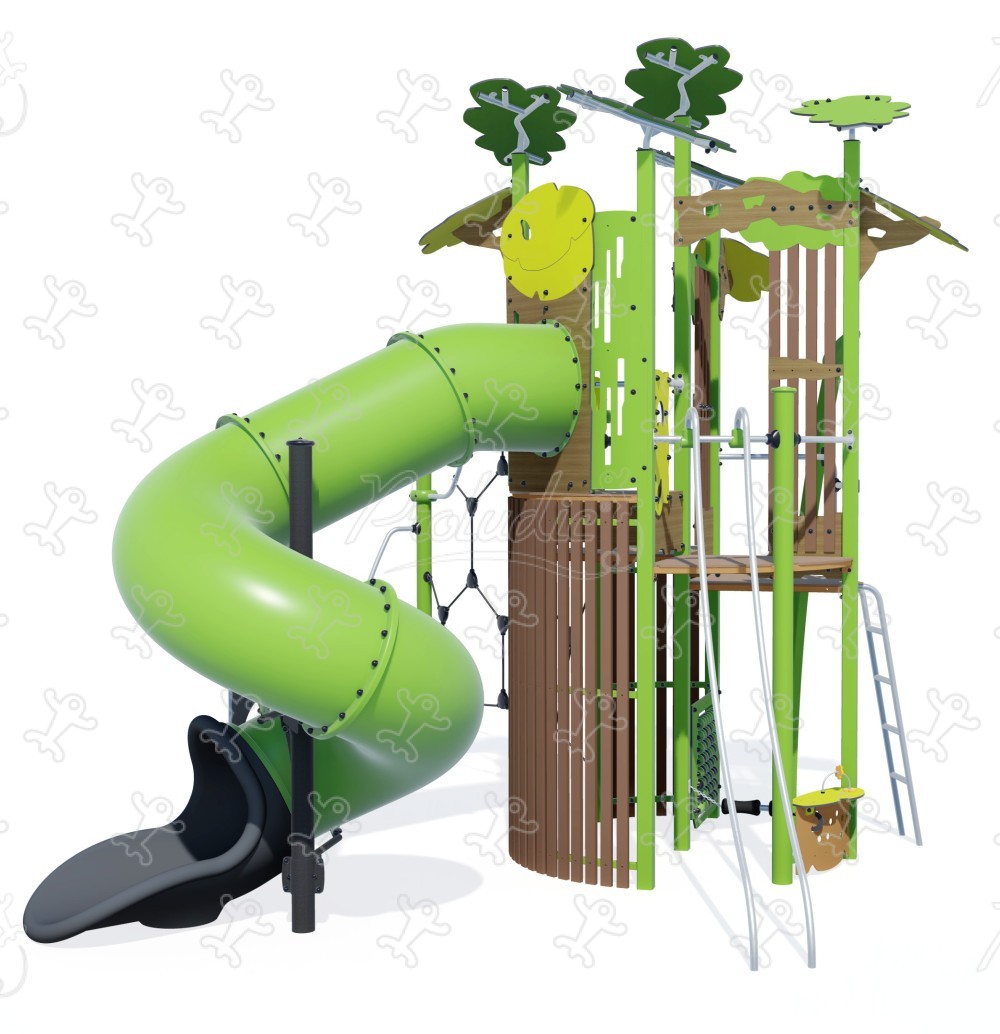

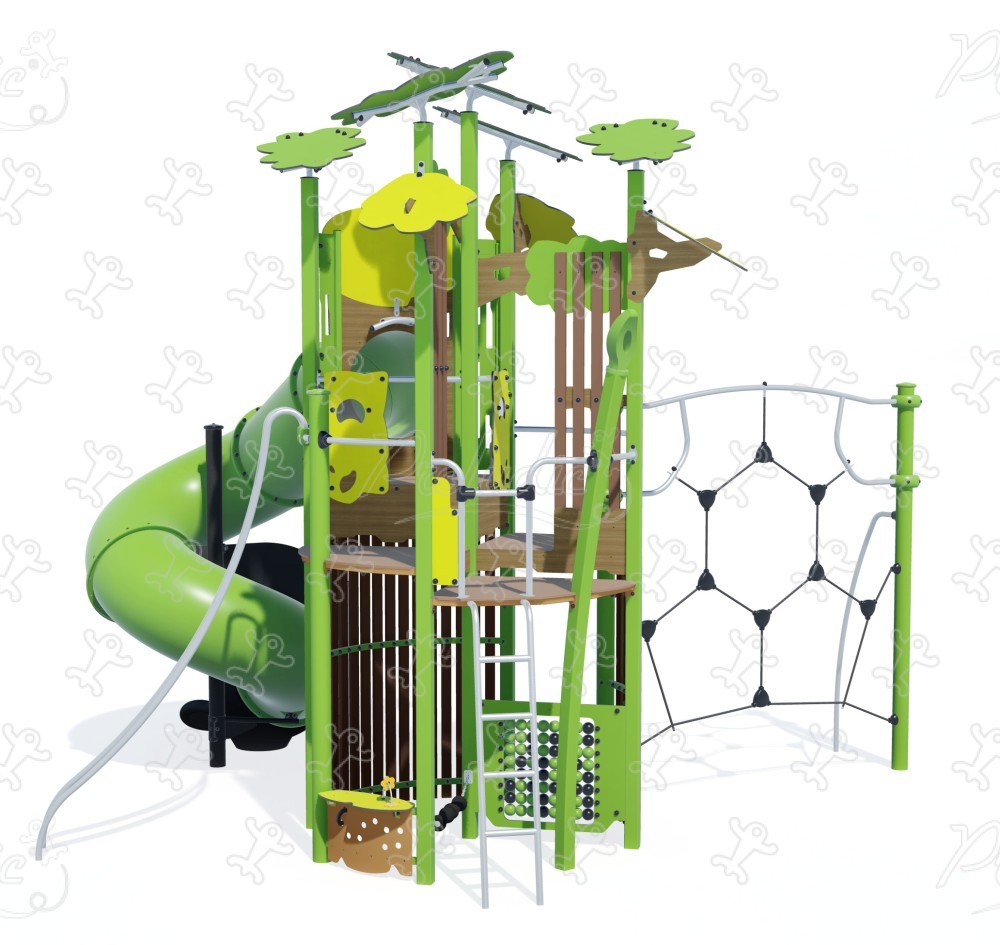

We have created the reference J56003® in our "Kanopé" range. This module is accessible from 2 years. It can accommodate up to 32 users.

The size of the module is: 6.70 m wide, 5.80 m. deep, 5.20 m. high. The free fall height (FFH) is 3.00 m.

25 play functions

climbing
Climbing x3
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
getting across
Getting across x1
 Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
sliding
Sliding x3
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
handling
Handling x3
A great exercise for developing motor skills and abilities in young children while having fun.
role play
Role play x3
Role plays promote the child's intellectual and social skills.
thinking
Thinking x2
Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.
tactile stimulation
Tactile stimulation x2
Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.
swinging
Swinging x1
To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.
resting
Resting x1
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
hiding
Hiding x2
Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.
meeting
Meeting x1
By playing together, children learn how to interact with other personalities and behaviors.
visual stimulation
Visual stimulation x1
It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.
taking shelter
Taking shelter x1
A refuge where the children can take shelter ensures that children have their own space.
sound stimulation
Sound stimulation x1
Popular and often shared by numerous children, fun sound activities bring even more life to play areas!
Show more

Specifications

Age range: 2+
Number of users: 32 users
FFH : 3.00 m
Size: 6.70 x 5.80 x 5.20 m

Equipment installation

Number of installers: 2
Installation time: 20:00:00
Concrete volume: 1.20 m3
Surface: 62.50 m2
Total weight: 1287.68 kg
Weight of the heaviest element: 41.00 kg

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification

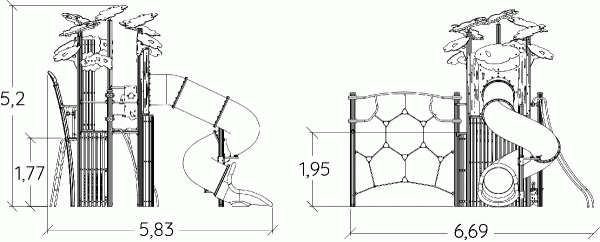

Side view
Side view
View from above
View from above

Other finishes

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The caps are made of injection moulded polyamide.

The platform

The platform is made from a 12.5mm thick textured and non-slip compact material (HPL).

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The slatted fences

The slatted fences are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.

The decorative fence panels

The decorative fence panels are made of 3mm thick painted aluminium sheets.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixing elements

The fixing elements are made of injection moulded polyamide.

The slides

The slides are made of rotomoulded polyethylene.

The 16mm diameter rope

The 16mm diameter rope is made of galvanised steel cable covered with polyester. The net fittings are made of polyamide.

The caps

The caps are made of rotary moulded polyethylene.

The abacus spheres

The abacus spheres are made of soft, rotomoulded polyvinyl chloride.

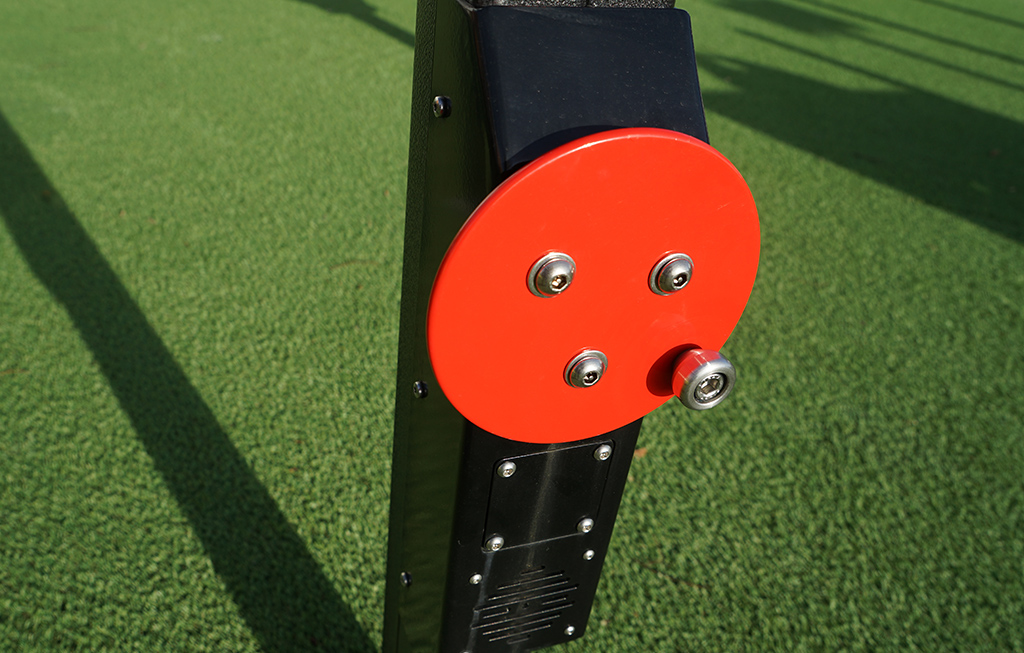

The sound generator and the wheel

The sound generator and the wheel are made of painted steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
