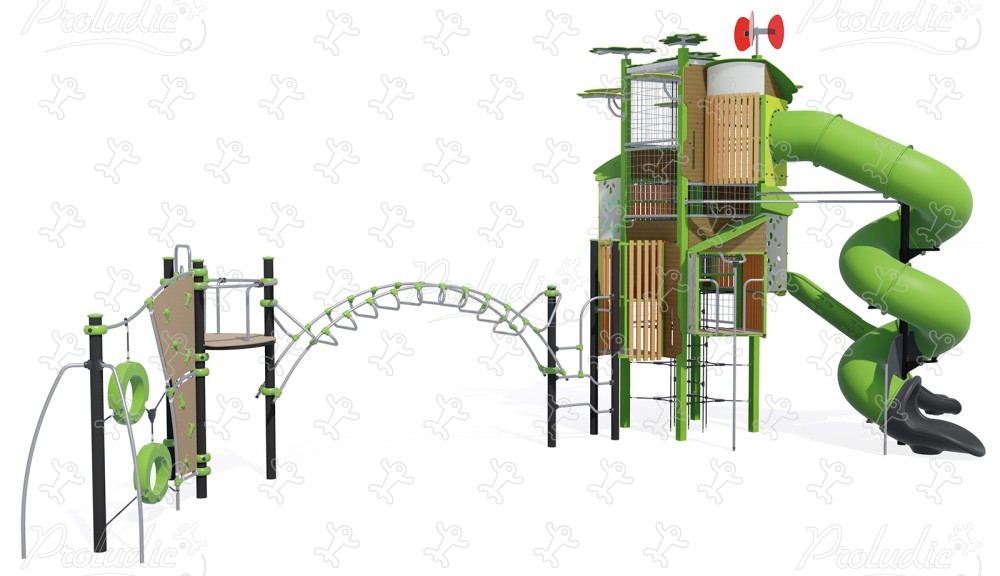

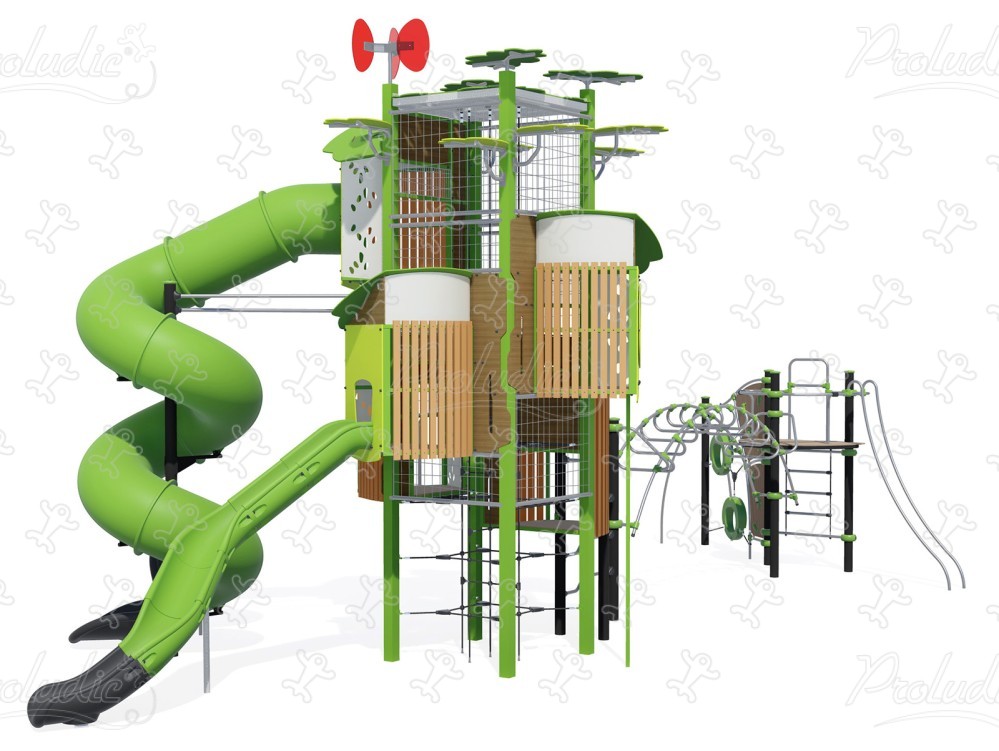

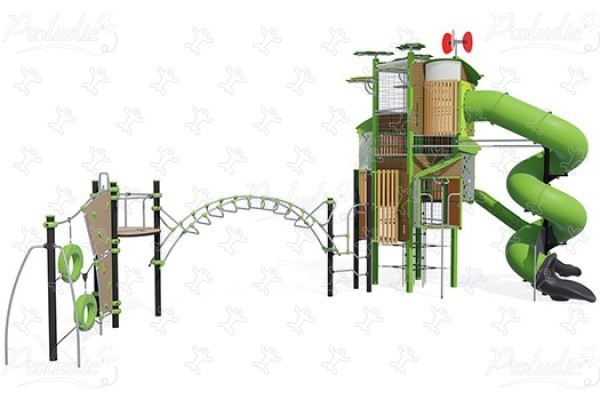

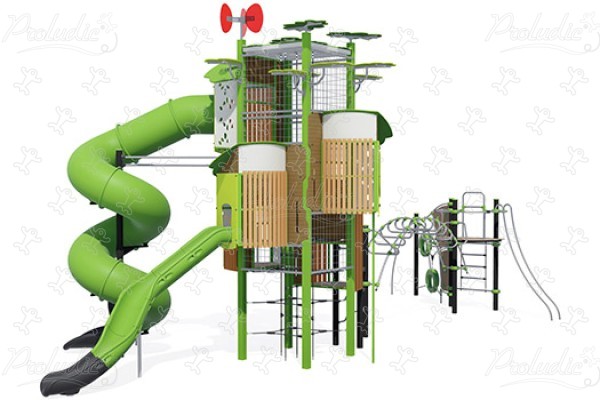

Kanopé - J56104

We have created the reference J56104 in our "Kanopé" range. This play equipment is accessible from 5 years. It can accommodate up to 44 users.

The size of the module is: 15.98 m length, 6.99 m width, 6.86 m. high. The free fall height (FFH) is 2.87 m.

37 play functions

climbing
Climbing x1
Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.
role play
Role play x1
Role plays promote the child's intellectual and social skills.
sliding
Sliding x4
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x2
By playing together, children learn how to interact with other personalities and behaviors.
resting
Resting x7
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
hanging
Hanging x1
This fun activity allows you to explore a new way of playing, of managing space and the void below.
hiding
Hiding x4
Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.
taking shelter
Taking shelter x5
A refuge where the children can take shelter ensures that children have their own space.
visual stimulation
Visual stimulation x2
It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.
climbing
Climbing x4
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
getting across
Getting across x4
 Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
crawling
Crawling x1
Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
Show more

Specifications

Age range: 5+
Number of users: 44 users
FFH : 2.87 m
Size: 15.98 x 6.99 x 6.86 m

Equipment installation

Number of installers: 3
Installation time: 45:00:00
Concrete volume: 1.50 m3
Surface: 121.00 m2
Total weight: 2902.84 kg
Weight of the heaviest element: 78.33 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

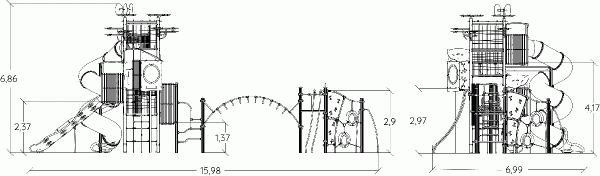

Side view
Side view

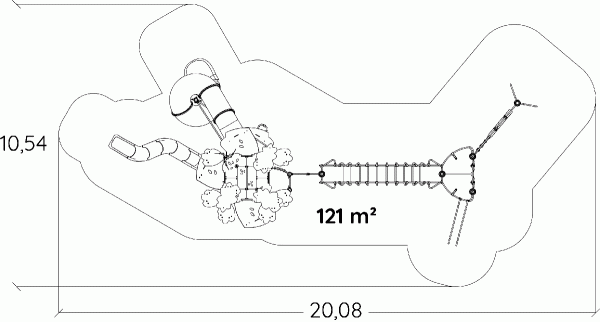

View from above
View from above

Materials

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The 120 x 120mm posts

The 120 x 120mm posts are made of painted galvanised steel, ensuring robustness and durability.

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The slatted fences

The slatted fences are made of composite wood (slats of 70 x 30 mm), which is a chip and split resistant waterproof material with UV protection.

The wall panels

The wall panels are made of 3mm perforated aluminium sheet coated with a polyester epoxy lacquer.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The panels

The panels are made of stainless steel mesh netting, Ø 6mm.

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The net fittings

The net fittings are made of polyamide and are used to link three cords together.

The footrests

The footrests are made from rubber, 14mm thick.

The slides

The slides are made of rotomoulded polyethylene.

The porthole

The porthole is made from 8mm thick methacrylate (PMMA).

The platforms

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The rubber ring

The rubber ring is a monobloc element made of polyethylene with an outside diameter of 70cm and inside diameter of 45cm.

The climbing wall

The climbing wall is made from a 12.5mm thick textured and non-slip compact material (HPL).

The climbing holds

The climbing holds are made of polyamide for its strength and rigidity.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
