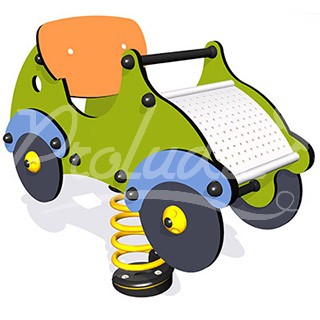

We have created the reference J834-GG® in our "Grafic finish" range. This module is accessible from 1 year. It can accommodate up to 1 user.

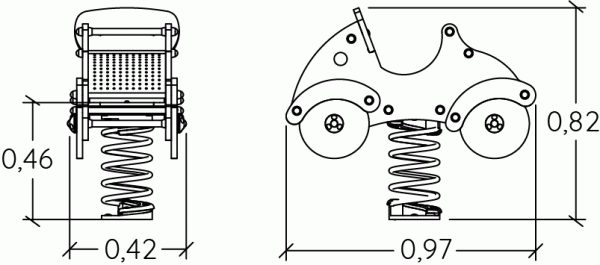

The size of the module is: 0.97 m wide, 0.42 m. deep, 0.82 m. high. The free fall height (FFH) is 0.60 m.

3 play functions

swinging
Swinging x1
To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
role play
Role play x1
Role plays promote the child's intellectual and social skills.

Specifications

Age range: 1 - 5
Number of users: 1 user
FFH : 0.60 m
Size: 0.97 x 0.42 x 0.82 m

Equipment installation

Number of installers: 1
Installation time: 01:15:00

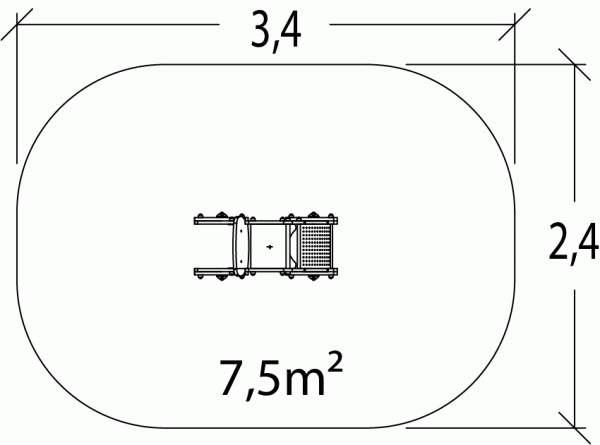

Surface: 7.50 m2
Total weight: 44.90 kg
Weight of the heaviest element: 11.39 kg

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification

Materials

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The seat

The seat is made from a 12.5mm thick textured and non-slip compact material (HPL).

The spring

The spring is made from Grade 35SCD6 steel, shot blasted, stress relieved, zinc coated and finished with two coats of epoxy polyester powder. Proludic have... patented an exceptionally strong and secure polyamide fixing for the spring, ensuring a long product life. Read more

The handle and the footrests

The handle and the footrests are made of PVC.

The bonnet

The bonnet is made of 3mm perforated aluminium sheet coated with a polyester epoxy lacquer.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
