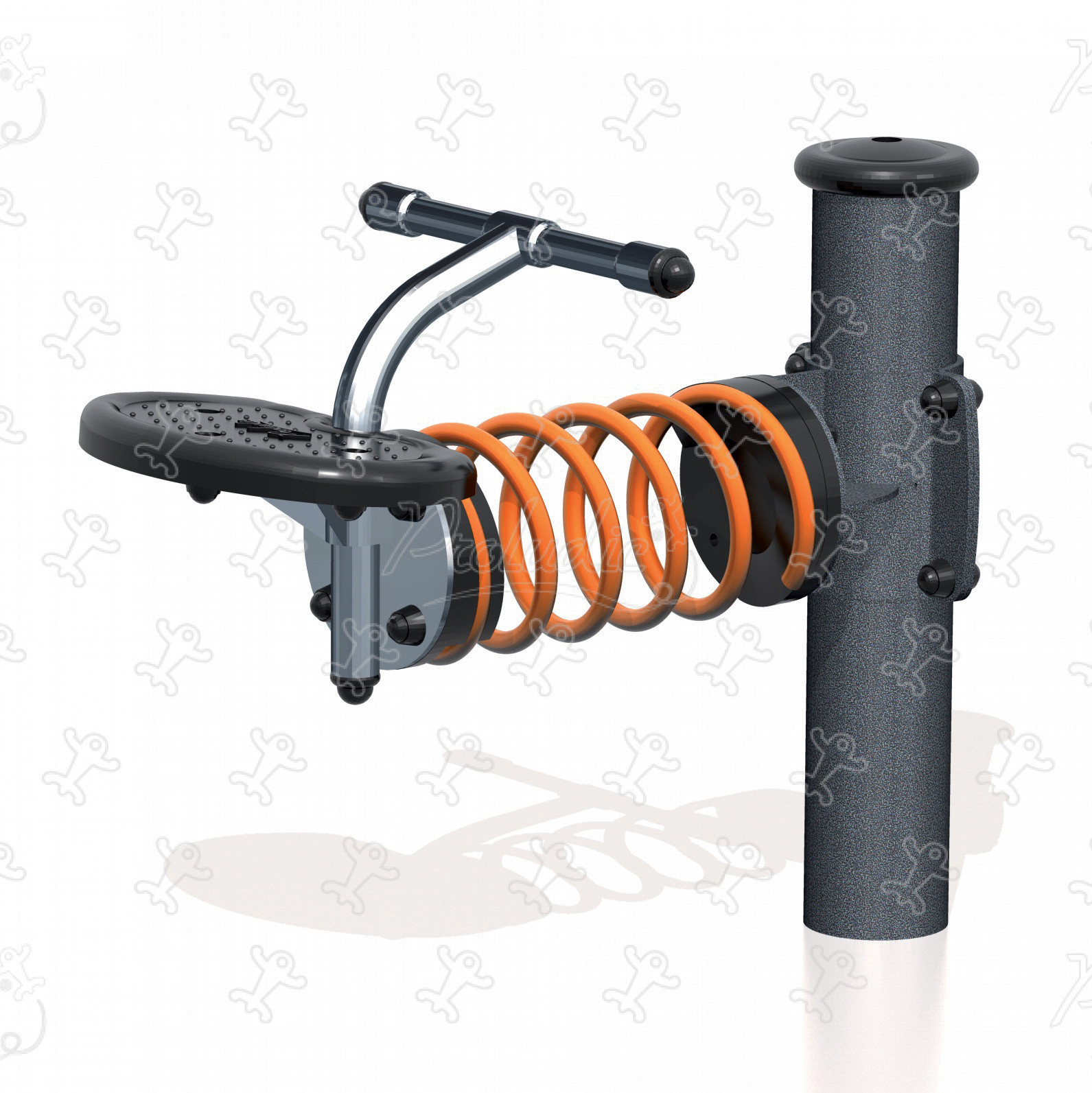

We have created the reference J868 in our "Springers" range. This module is accessible from 2 years. It can accommodate up to 1 user.

The size of the module is: 0.90 m wide, 0.40 m. deep, 0.70 m. high. The free fall height (FFH) is 0.60 m.

2 play functions

swinging
Swinging x1
To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.
resting
Resting x1
By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Specifications

Age range: 2+
Number of users: 1 user
FFH : 0.60 m
Size: 0.90 x 0.40 x 0.70 m

Equipment installation

Number of installers: 1
Installation time: 01:00:00
Concrete volume: 0.10 m3
Surface: 8.00 m2
Total weight: 33.06 kg
Weight of the heaviest element: 23.21 kg

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification
Side view
Side view
View from above
View from above

Materials

The 125mm diameter post

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance.

The springs

The springs are made from Grade 35SCD6 steel, shot blasted, stress relieved, zinc coated and finished with two coats of epoxy polyester powder. Proludic have... patented an exceptionally strong and secure polyamide fixing for the spring, ensuring a long product life. Read more

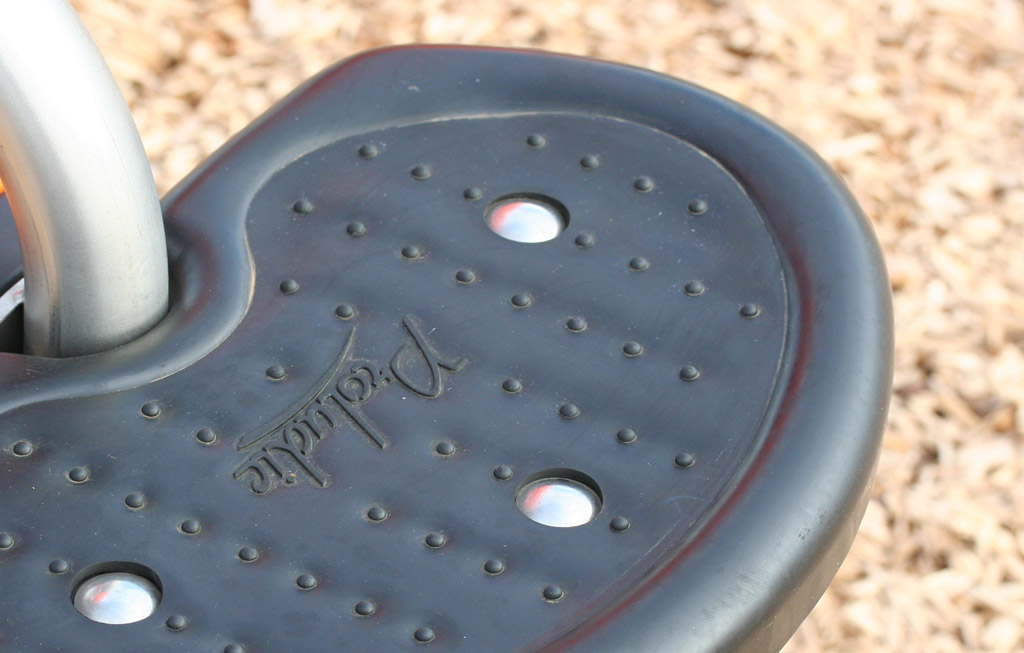

The seats

The seats are made of shock-absorbing rubber with non-slip surfaces.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
