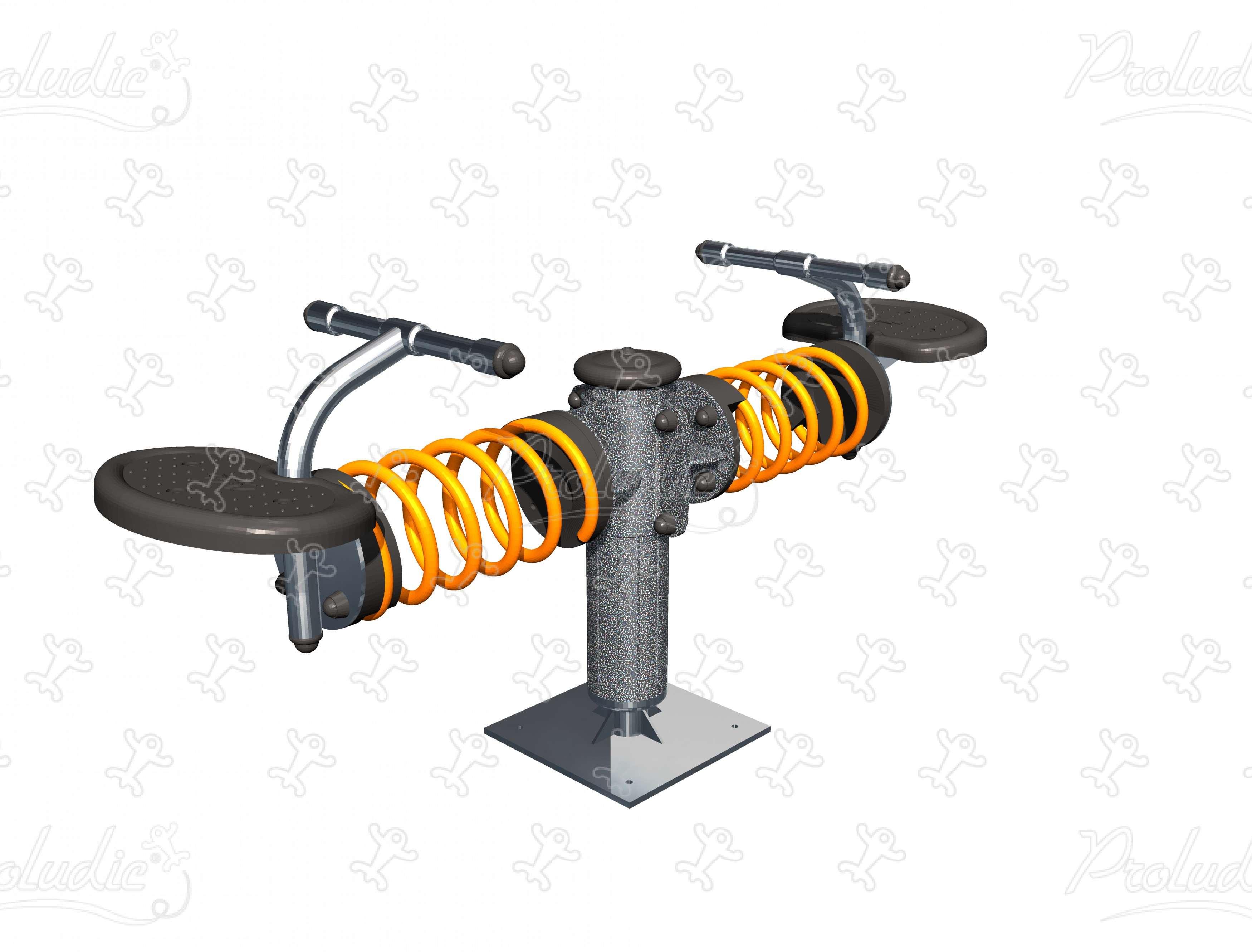

Rotating equipment - Rotatwin - J3603

We have created the reference J3603 in our "Rotating equipment" range. This play equipment is accessible from 2 years. It can accommodate up to 2 users.

From the dynamic range, this J3603 springer type enhanced seesaw play equipment, designed for 2 simultaneous users.

3 play functions

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Rotating x1

Turning allows the child to experience thrills, to experience speed and to feel the exhilaration of their head and body turning uncontrollably.

Swinging and rocking x1

It allows children to leave their stable position and experiment with uncoordinated movements.

Specifications

Age range:	2+
Number of users:	2 users
FFH :	0.60 m

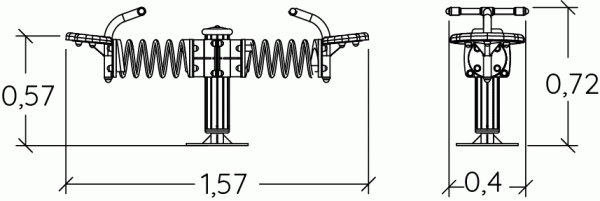

Size:	1.57 x 0.40 x 0.72 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.20 m3

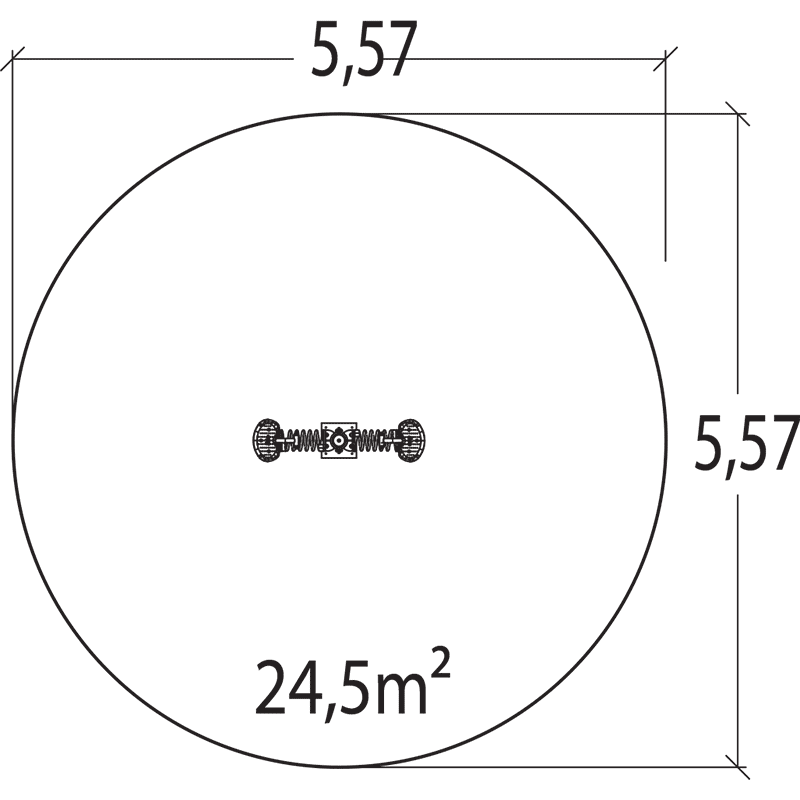

Surface:	24.50 m2
Total weight:	70.72 kg
Weight of the heaviest element:	60.04 kg

Environmental Indicators

Repairability

9.06 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Video - Rotating equipment - Rotatwin - J3603

Materials

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of injection moulded polyamide. Read more

The springs are made from Grade 35SCD6 steel, shot blasted, stress relieved, zinc coated and finished with two coats of epoxy polyester powder. The polyamide... attachment ensures longevity and an exceptional safety for the system. Read more
