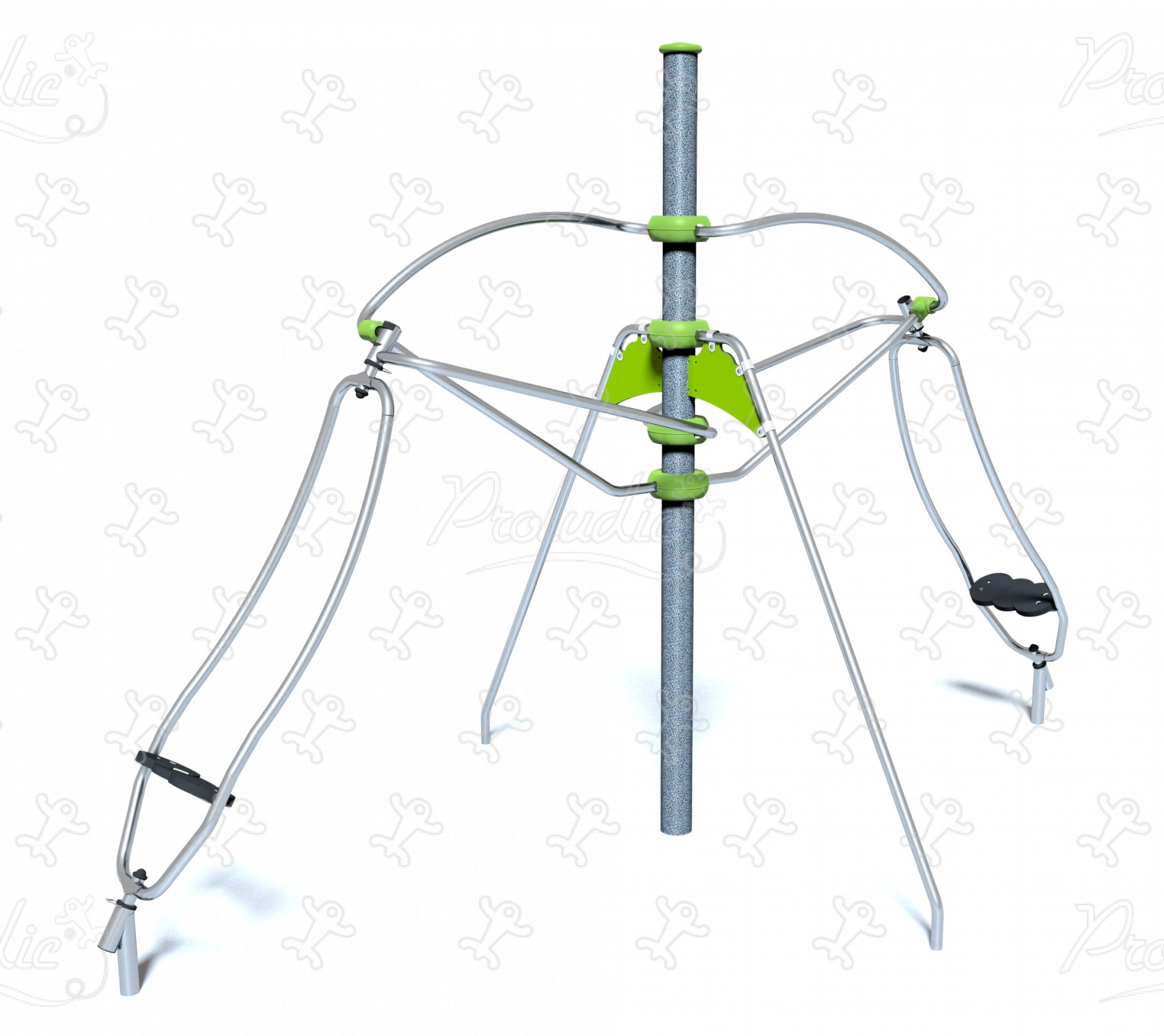

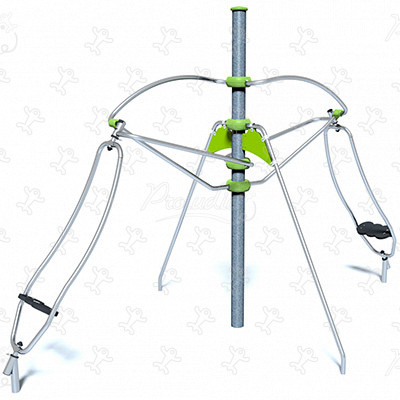

We have created the reference J2594-M in our "Rotating equipment" range. This module is accessible from 7 years. It can accommodate up to 2 users.

The size of the module is: 4.55 m wide, 2.70 m. deep, 3.00 m. high. The free fall height (FFH) is 0.70 m.

4 play functions

rotating
Rotating x1
Turning allows the child to experience thrills, to experience speed and to feel the exhilaration of their head and body turning uncontrollably.
meeting
Meeting x1
By playing together, children learn how to interact with other personalities and behaviors.
hanging
Hanging x1
This fun activity allows you to explore a new way of playing, of managing space and the void below.
balancing
Balancing x1
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Specifications

Age range: 7+
Number of users: 2 users
FFH : 0.70 m
Size: 4.55 x 2.70 x 3.00 m

Equipment installation

Number of installers: 2
Installation time: 05:15:00
Concrete volume: 0.32 m3
Surface: 26.00 m2
Total weight: 116.16 kg
Weight of the heaviest element: 11.36 kg

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification

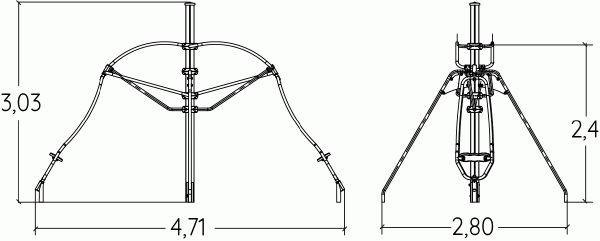

Side view
Side view

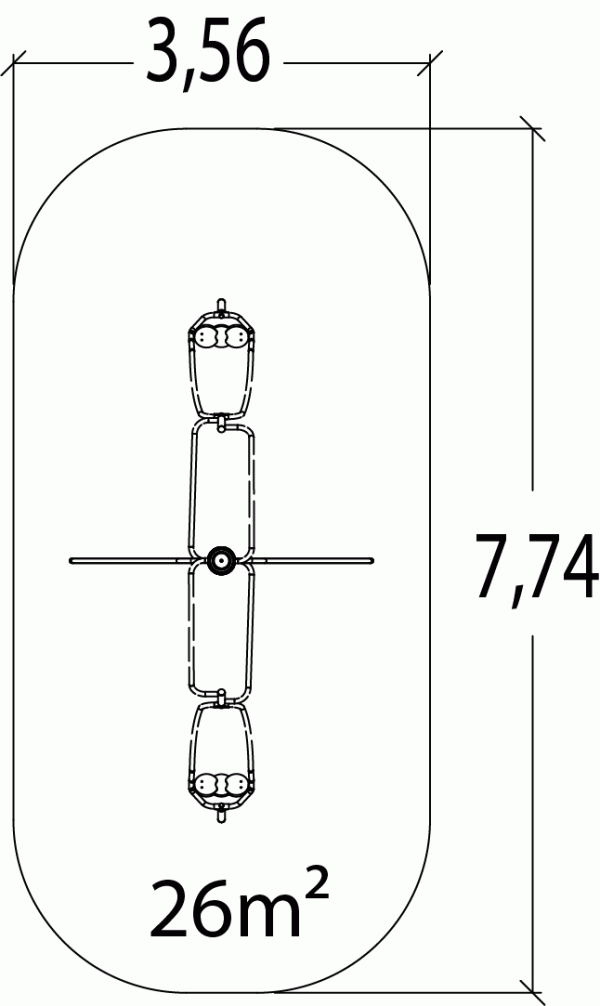

View from above
View from above

Other finishes

Materials

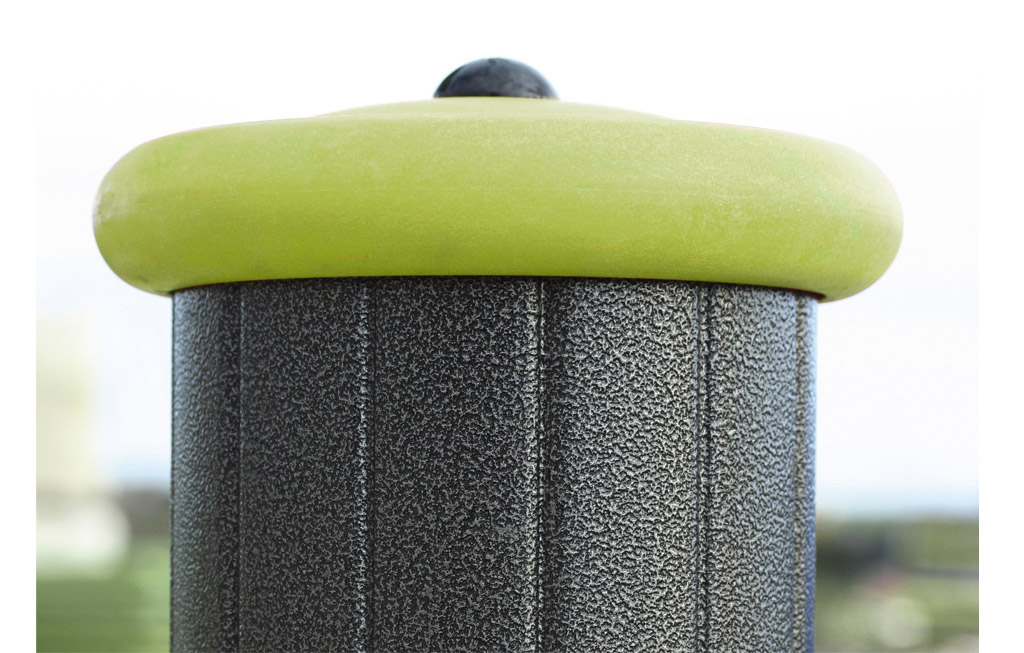

The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play feautures.

The tubes

The tubes are made of of 40mm, 60mm and 101.6mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The seat

The seat is made of shock absorbing moulded honeycomb rubber.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
