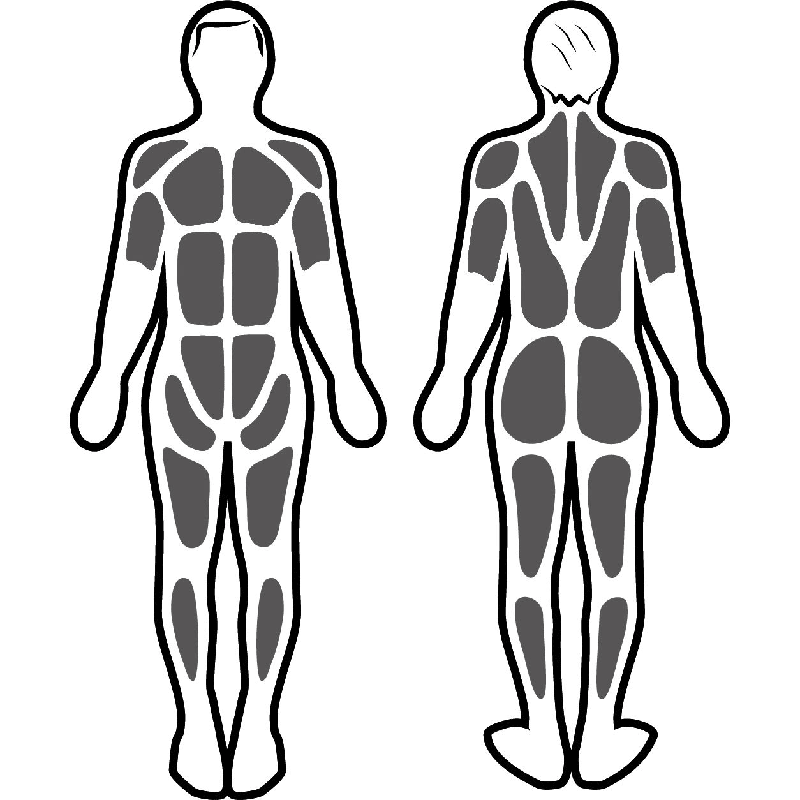

Muscle stimulation

Muscle stimulation

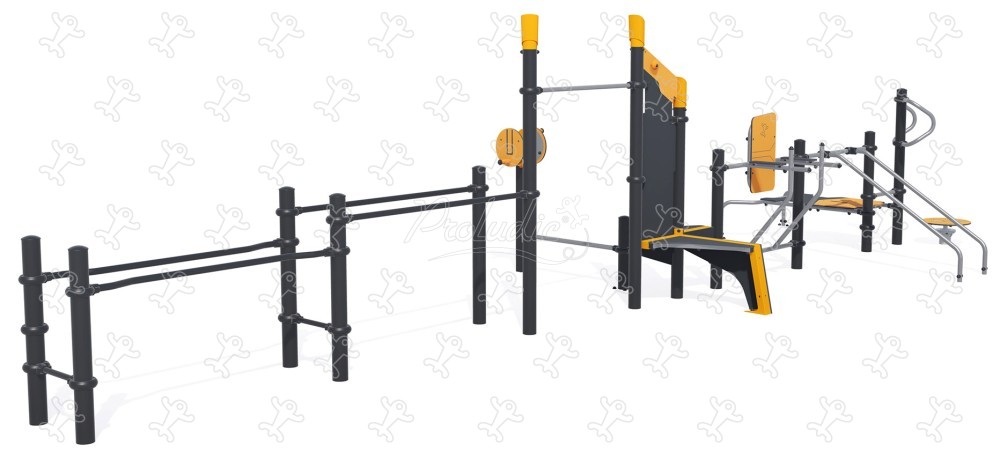

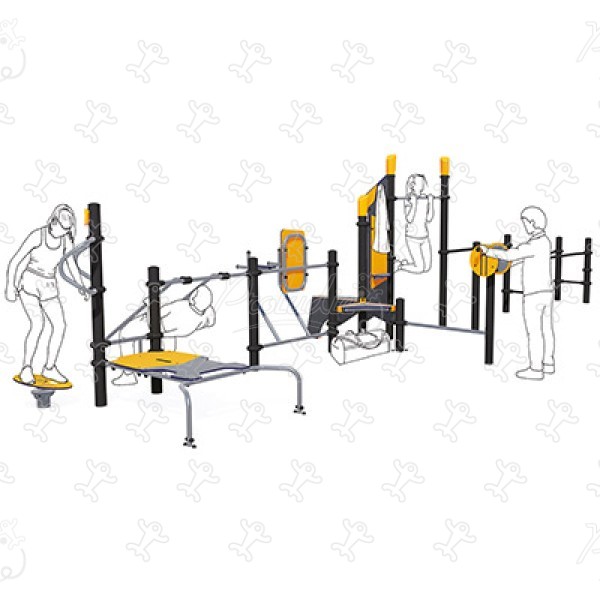

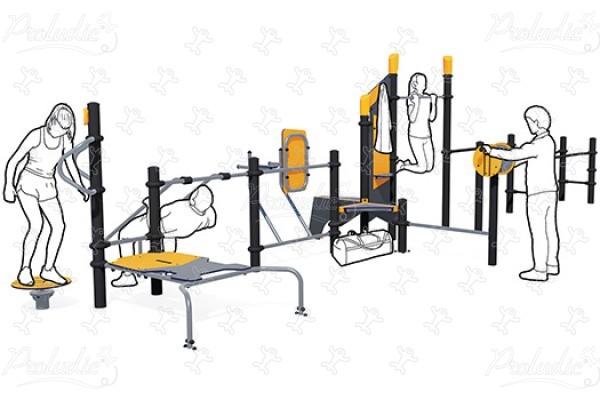

ACTI’Fit - Multi-generational fun-sport station - J37102®

We have created the reference J37102® in our "ACTI’Fit" range. This activity equipment is accessible from 10 years. It can accommodate up to 11 users.

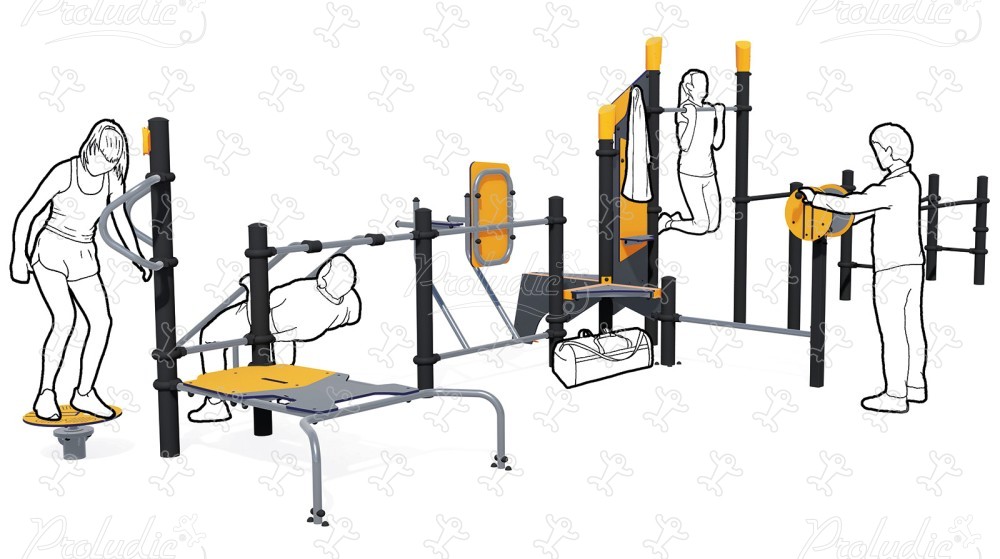

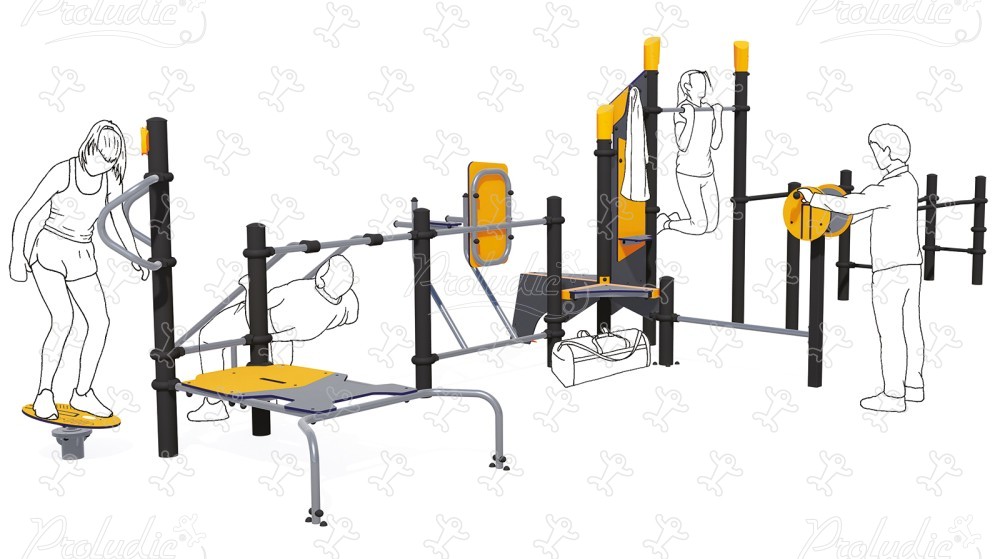

Multi-generational station that encourages mixed-use. The variety of the different items of equipment, which complement one another perfectly, provides a sports and meeting place for everyone. The arm bike and the balance board are particularly suitable for older adults, while the dip bars and pull-up equipment will cater more for sports buffs.

17 sports activities

balancing
Balancing x1
hanging
Hanging x1
Pull-ups
Pull-ups x4
Dips
Dips x4
Push-ups
Push-ups x4
Abs
Abs x2
spinning
Spinning x1
Show more

7 ludo-sport motivations

Application Acti'Fun
Application Acti'Fun
Multimedia
Multimedia
Sensations
Sensations
Progressive design
Progressive design
Sharing
Sharing
Diversity
Diversity
Challenge
Challenge
Show more

Specifications

Age range: 10+
Number of users: 11 users
FFH : 1.10 m
Size: 9.86 x 3.55 x 2.35 m

Equipment installation

Number of installers: 2
Installation time: 20:00:00
Concrete volume: 1.80 m3
Surface: 62.00 m2
Total weight: 423.98 kg
Weight of the heaviest element: 21.53 kg

Environmental Indicators

Repairability

Repairability

8.65 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - ACTI’Fit - Multi-generational fun-sport station - J37102®
Video - ACTI’Fit - Multi-generational fun-sport station - J37102®

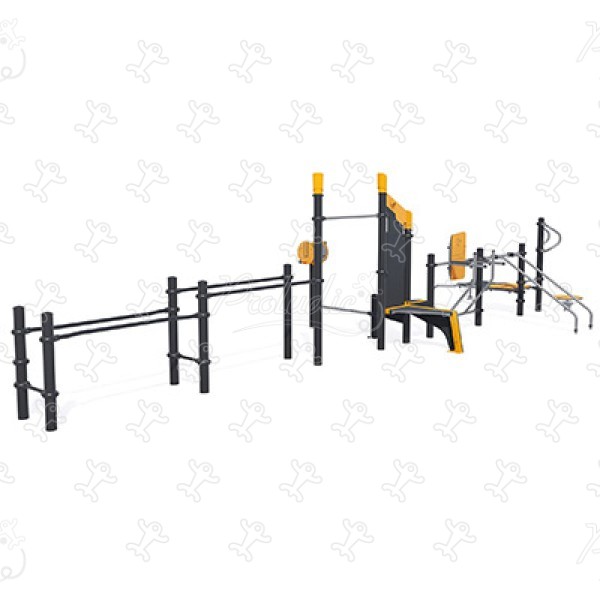

Side view
Side view

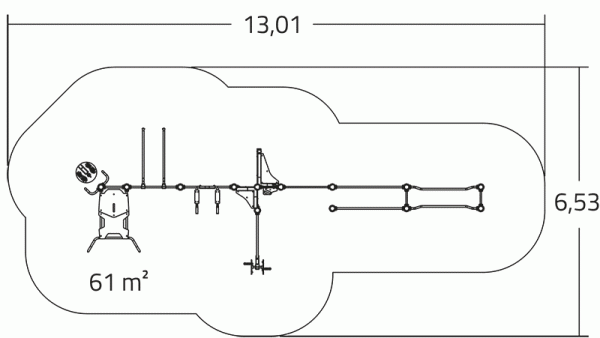

View from above
View from above

Materials

The 102mm diameter posts

The 102mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance.

The caps

The caps are made of painted aluminium (A) or rotary moulded polyethylene (B).

The tubes

The tubes are made of 40mm and 33mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The tubes used for the Parallel bars and Suspension bars

The tubes used for the Parallel bars and Suspension bars are made of electro-galvanized steel (diameter 34 mm) and stainless steel (diameter 40 mm), coated with epoxy paint. Electrogalvanization ensures... corrosion resistance and provides a high quality finish. Stainless steel guarantees the longevity and robustness of the equipment over time. The epoxy paint ensures better grip. Read more

The fixing collars

The fixing collars are made of painted aluminium.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The Central Column seating

The Central Column seating is supported by a painted galvanized steel frame structure.

The Balancing board

The Balancing board is fitted to a galvanized steel post, diameter 114 mm. A ball and socket joint ensures ease of movement.

The stainless steel rotation system

The stainless steel rotation system is equipped with bearings.

The smartphone holder

The smartphone holder is made of polyamide for its strength and rigidity.

The Coat Hook

The Coat Hook is made of polypropylene.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
