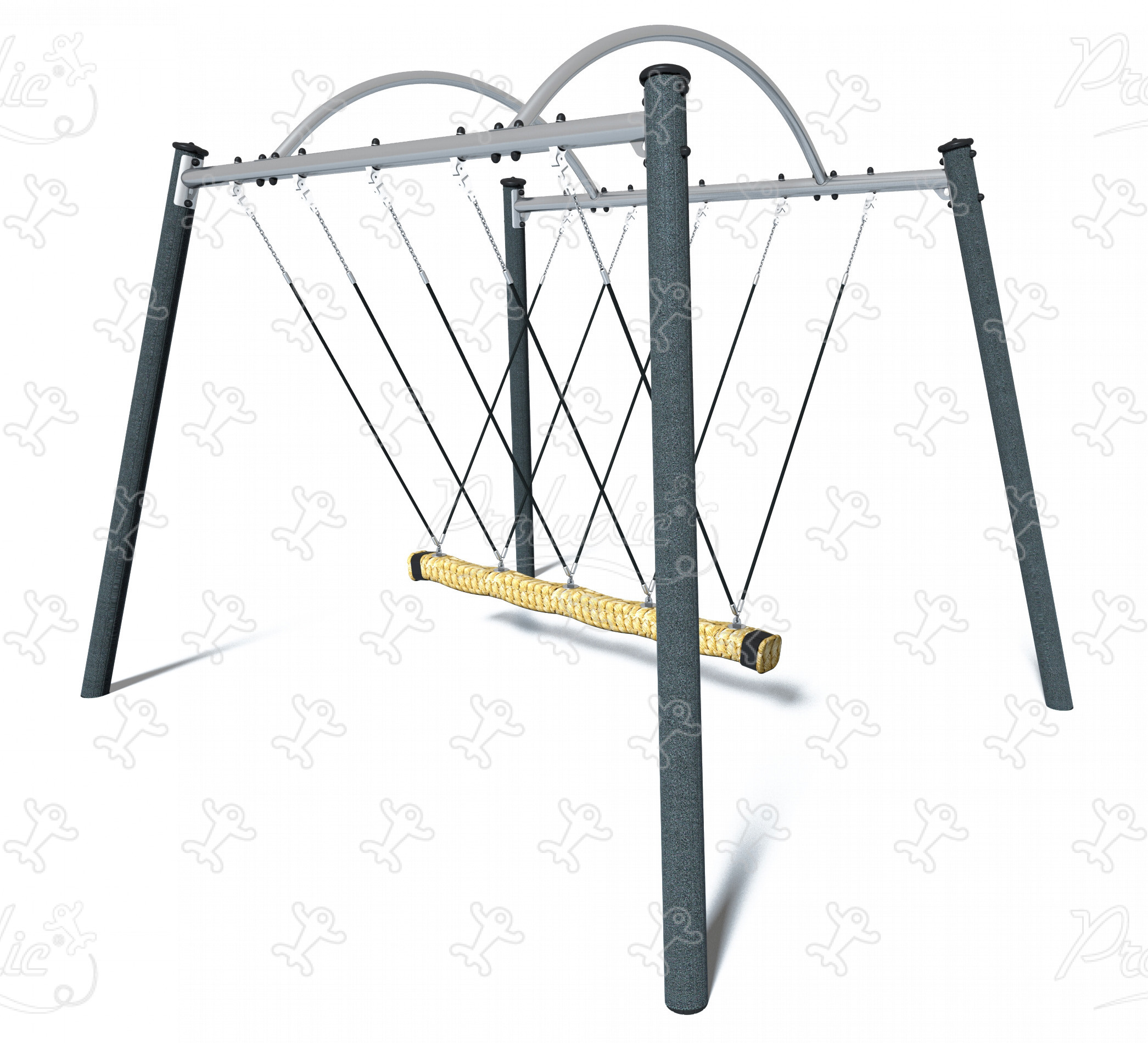

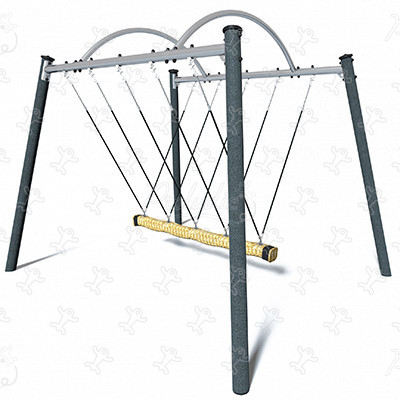

We have created the reference J442-M in our "Swings" range. This module is accessible from 2 years. It can accommodate up to 4 users.

The size of the module is: 3.06 m wide, 3.93 m. deep, 3.01 m. high. The free fall height (FFH) is 1.50 m.

3 play functions

Swinging x1
To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.
Balancing x1
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
Meeting x1
By playing together, children learn how to interact with other personalities and behaviors.


Age range: 2+
Number of users: 4 users
FFH : 1.50 m
Size: 3.06 x 3.93 x 3.01 m

Equipment installation

Number of installers: 2
Installation time: 03:00:00
Concrete volume: 0.30 m3
Surface: 15.50 m2
Total weight: 115.96 kg
Weight of the heaviest element: 19.90 kg


The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification
Side view
Side view

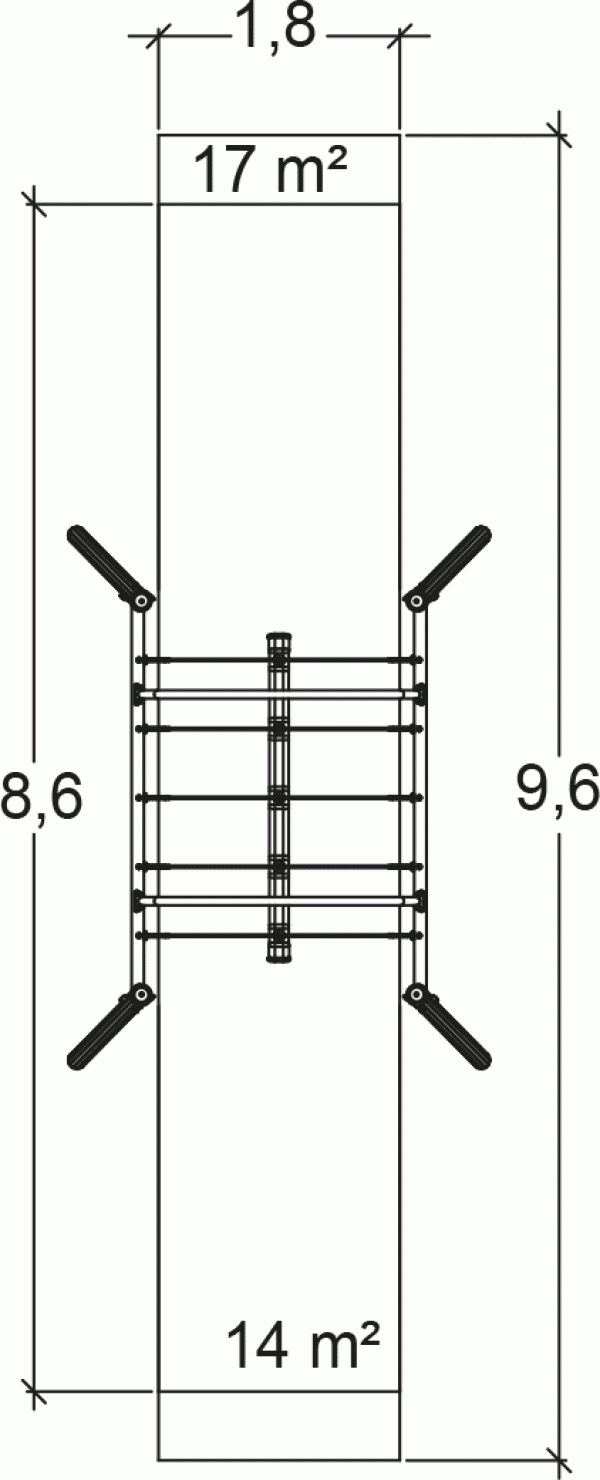

View from above
View from above

Other finishes


The 125mm diameter posts

The 125mm diameter posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The seat

The seat is made of polypropylene rope. It is fixed to a stainless-steel frame, suspended from galvanised steel ropes covered in polyester, and extended with a... galvanised steel chain. Read more

The horizontal beam

The horizontal beam is made of non-painted galvanised steel.

The tubes

The tubes are made of 60mm diameter steel.

The swing bearings

The swing bearings are made of stainless steel.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
