J4910 - Playgrounds - Balancing and climbing equipment, Origin' - Balancing trails, Climbing and balancing trails

We have created the reference J4910 in our "Balancing trails" range. This play equipment is accessible from 6 years. It can accommodate up to 3 users.

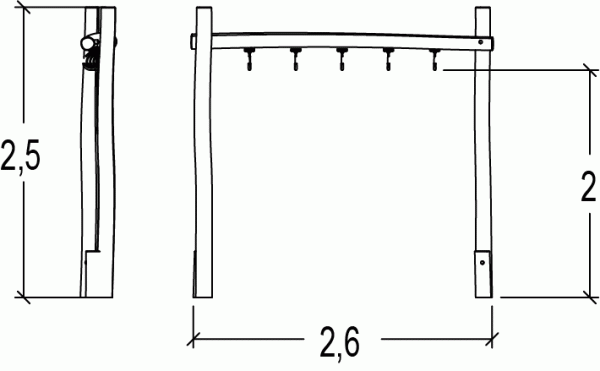

The size of the module is: 2.60 m length, 0.28 m width, 2.00 m. high. The free fall height (FFH) is 1.90 m.

2 play functions

Hanging x1

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	6+
Number of users:	3 users
FFH :	1.90 m
Size:	2.60 x 0.28 x 2.00 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.13 m3

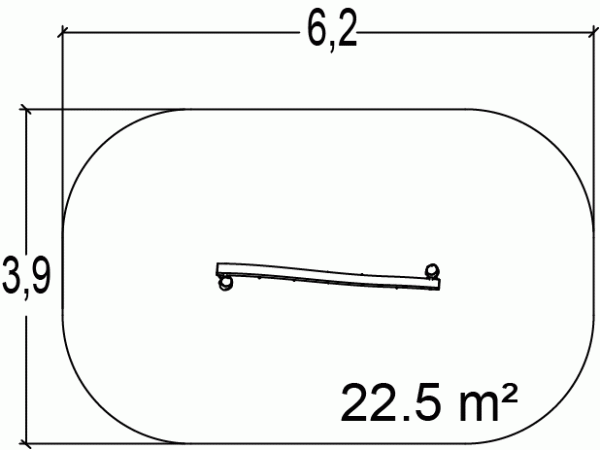

Surface:	22.50 m2
Total weight:	122.31 kg
Weight of the heaviest element:	38.40 kg

Environmental Indicators

Repairability

9.48 /10

Downloads

Technical fact sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Materials

The different posts (60 to 80mm / 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally... rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
