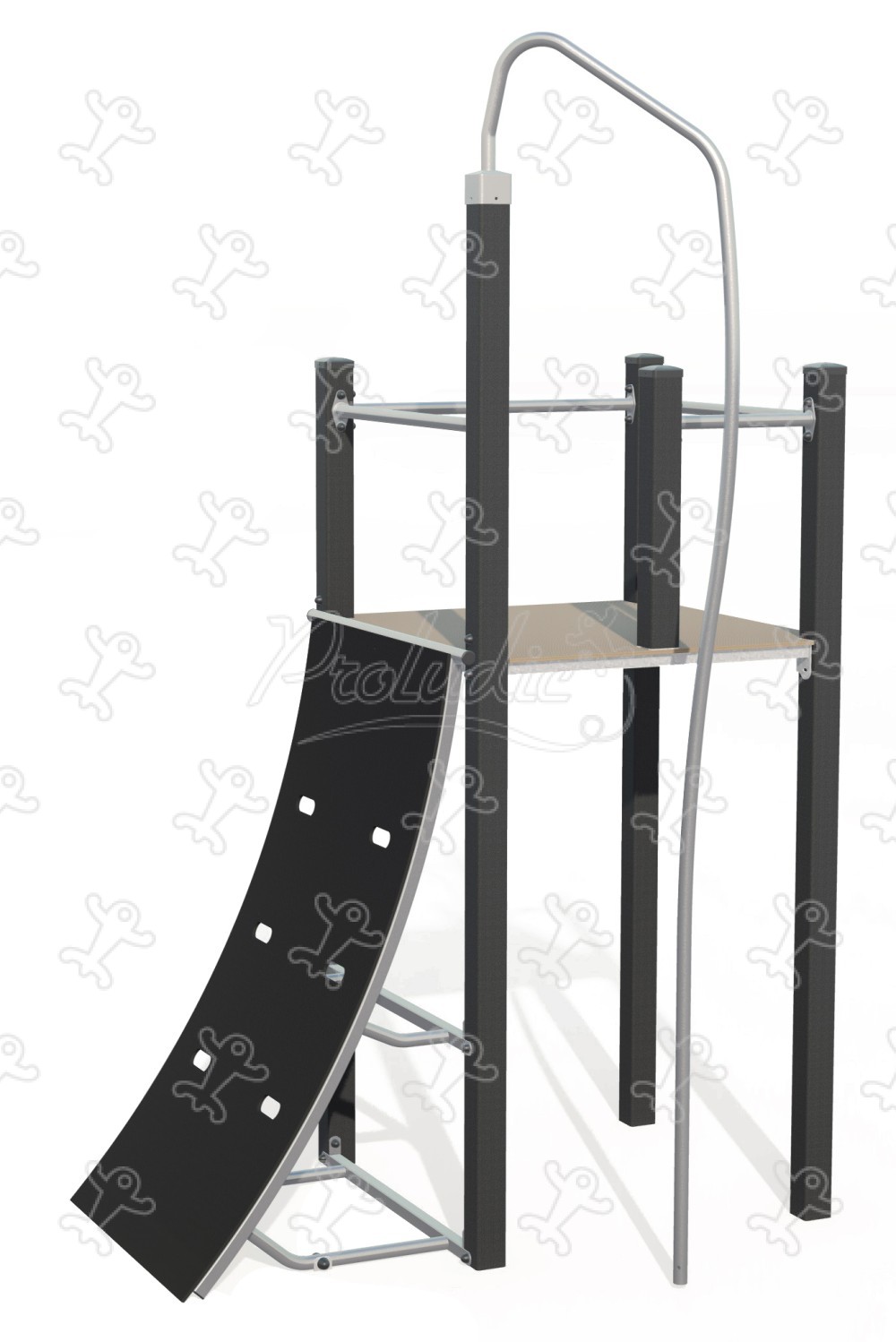

Ramp

We have created the reference J5915® in our "Ninja trails" range. This module is accessible from 8 years. It can accommodate up to 4 users.

The size of the module is: 2.07 m wide, 1.67 m. deep, 3.50 m. high. The free fall height (FFH) is 2.40 m.

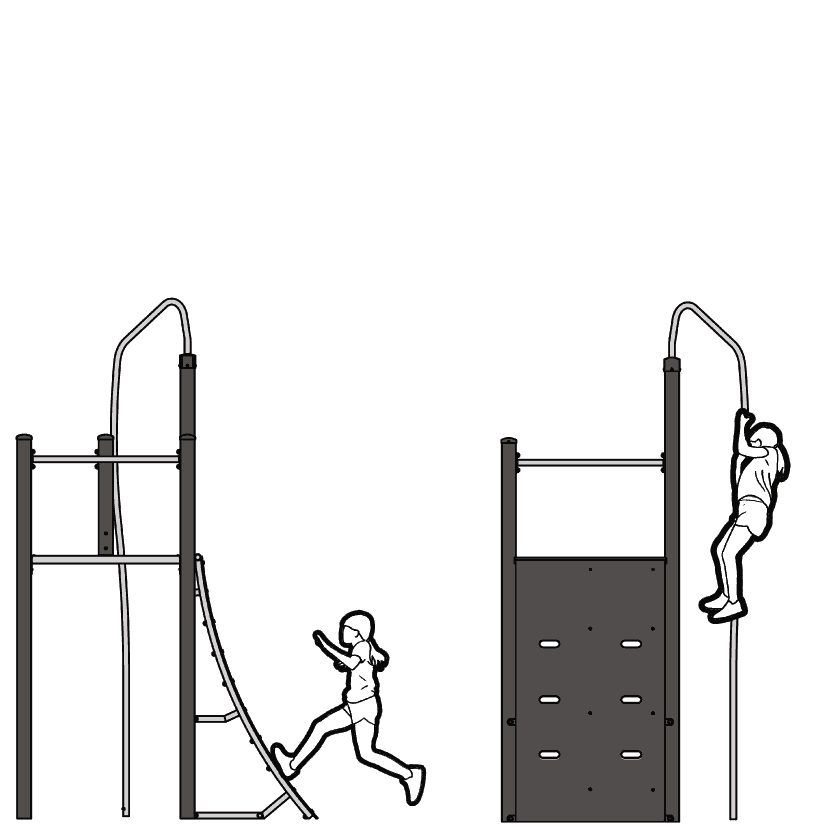

3 play functions

sliding
Sliding x1
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
meeting
Meeting x1
By playing together, children learn how to interact with other personalities and behaviors.
climbing
Climbing x1
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range: 8+
Number of users: 4 users
FFH : 2.40 m
Size: 2.07 x 1.67 x 3.50 m

Equipment installation

Number of installers: 2
Installation time: 04:00:00
Concrete volume: 0.19 m3
Surface: 27.00 m2
Total weight: 260.12 kg
Weight of the heaviest element: 80.04 kg

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification

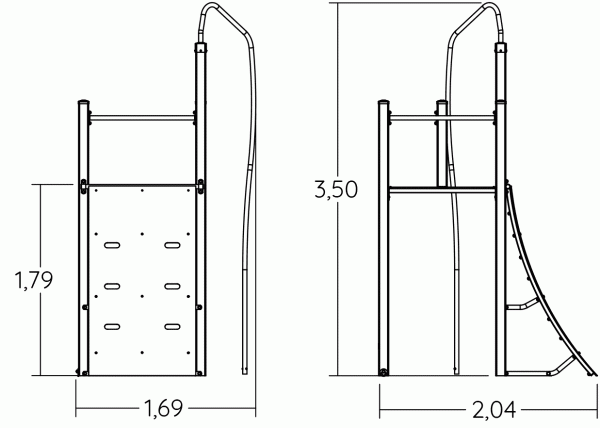

Side view
Side view
View from above
View from above

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platform

The platform is made from a 12.5mm thick textured and non-slip compact material (HPL).

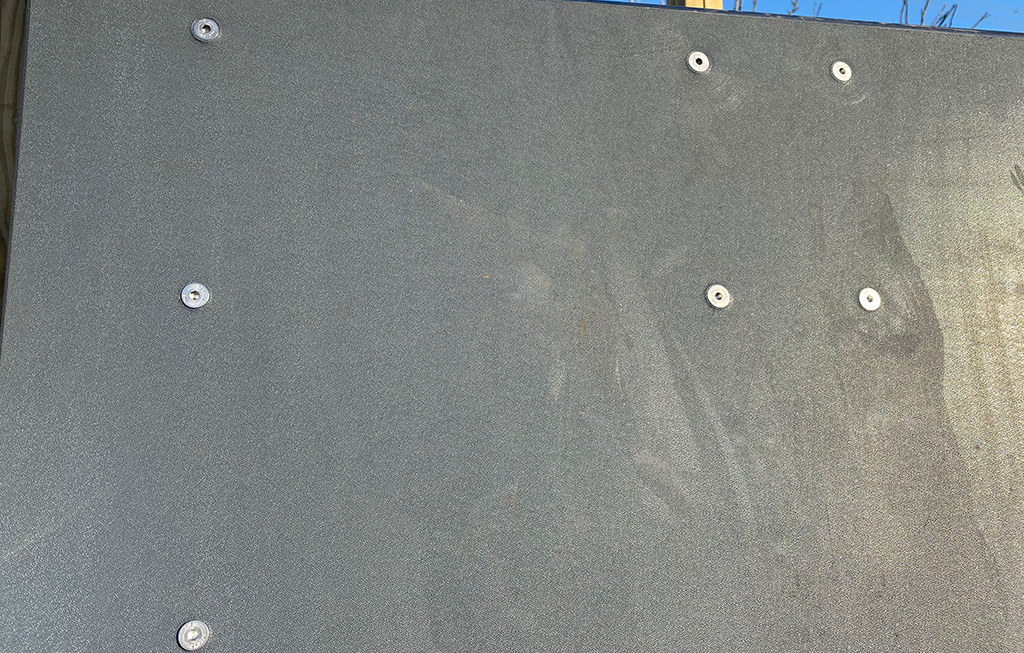

The ramp

The ramp is made from a 12mm thick, non-slip polyethylene material.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
