We have created the reference JPS23-M in our "Metal Trim Trail" range. This module is accessible from 6 years. It can accommodate up to 1 user.

The size of the module is: 2.10 m wide, 0.90 m. deep, 0.60 m. high. The free fall height (FFH) is 0.60 m.

Specifications

Age range: 6+
Number of users: 1 user
FFH : 0.60 m
Size: 2.10 x 0.90 x 0.60 m

Equipment installation

Surface: 18.00 m2
Total weight: 71.82 kg
Weight of the heaviest element: 13.82 kg

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
- JXXXX TÜV certification
- JXXXX* Proludic Certification
Video - Metal Trim Trail - JPS23-M
Video - Metal Trim Trail - JPS23-M

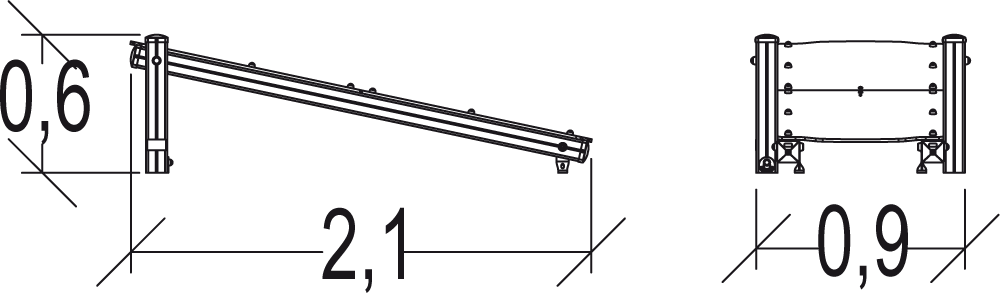

Side view
Side view

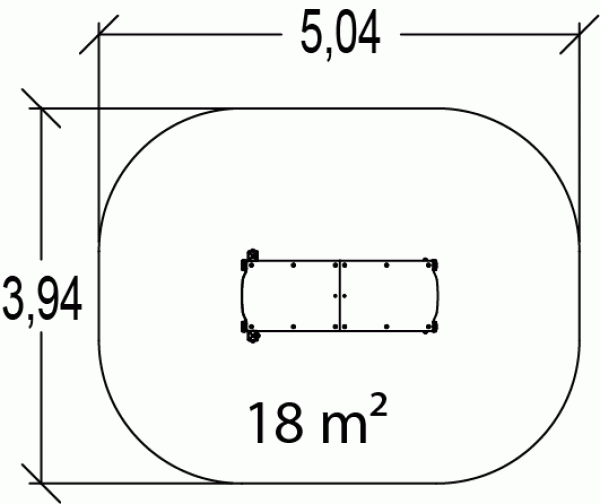

View from above
View from above

Other finishes

Materials

The 95 x 95mm posts

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platforms

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
