ACTI’Fit - Double pendulum - J37223®
We have created the reference J37223® in our "ACTI’Fit" range. It can accommodate up to 2 users.
The size of the module is: 1.16 m length, 0.97 m width, 1.47 m. high. The free fall height (FFH) is 0.60 m.
In short
Sports Equation

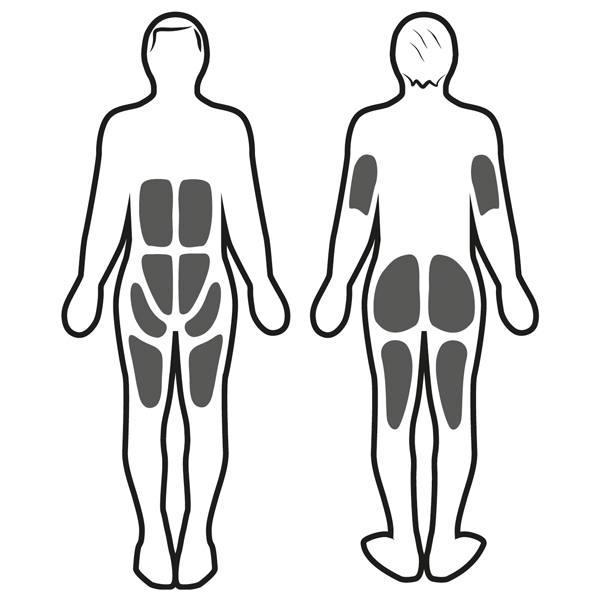

Muscle stimulation
Movement

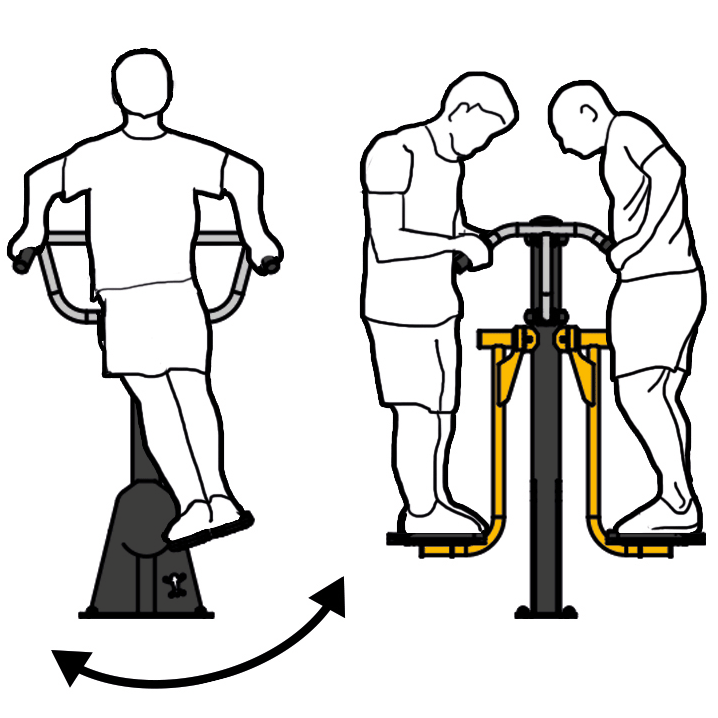

4 sports activities
Balancing x2
Swinging x2
4 recreational sport motivations
Application Acti'Fun
Sensations
Progressive design
Sharing
Specifications
| Minimum size: | > 1.40 m |
| Number of users: | 2 users |
| FFH : | 0.60 m |

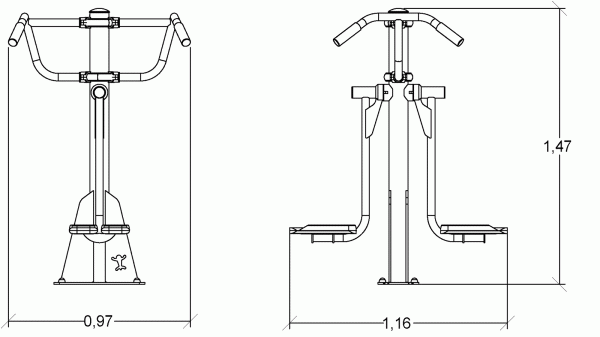

| Size: | 1.16 x 0.97 x 1.47 m |
Equipment installation
| Number of installers: | 2 |
| Installation time: | 03:00:00 |
| Concrete volume: | 0.40 m3 |

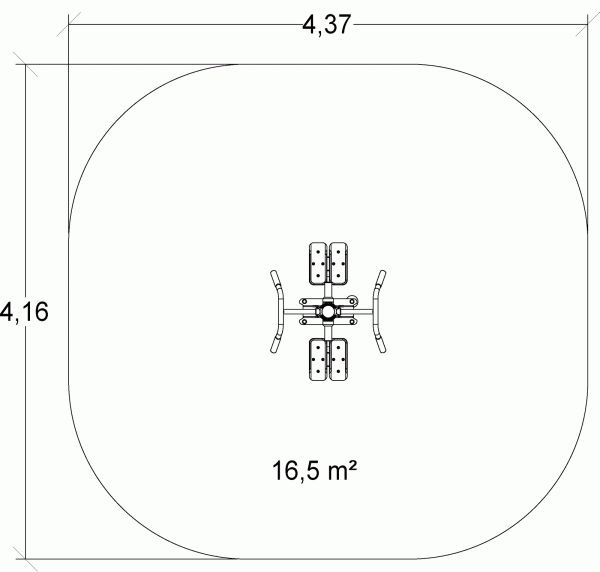

| Surface: | 16.50 m2 |
| Total weight: | 74.52 kg |
| Weight of the heaviest element: | 53.78 kg |
Environmental Indicators
Repairability
9.17 /10
Certification
All Play and Sports equipment in our standard offer are certified by an independent laboratory.
Materials
The 102mm diameter post is made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The cap is made of... painted aluminium. Read more
The fixing collars are made of painted aluminium.
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The tubes are made of painted galvanised steel.
The footrests are made of stainless steel.
The handles are made of polyvinyl chloride.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
