Inclusive playground equipment with play panels, climbing activities, balancing trail, and an accessible ramp for people with reduced mobility - J38200

We have created the reference J38200 in our "Diabolo" range. This play equipment is accessible from 2 years. It can accommodate up to 33 users.

The J38200 Diabolo+ has 9 different accessible play panels. It consists of unique play features on top of the posts including a telescope and viewing panel.

Other finishes available

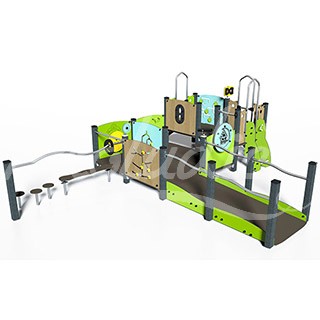

J38200-C

62 play functions

Role play x10

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x6

By playing together, children learn how to interact with other personalities and behaviors.

Handling x13

A great exercise for developing motor skills and abilities in young children while having fun.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Thinking x7

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Tactile stimulation x13

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x5

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Specifications

Age range:	2+
Number of users:	33 users
FFH :	1.00 m

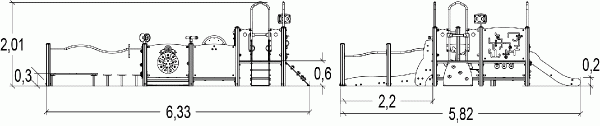

Size:	6.33 x 5.82 x 2.01 m

Equipment installation

Number of installers:	2
Installation time:	34:00:00
Concrete volume:	0.70 m3

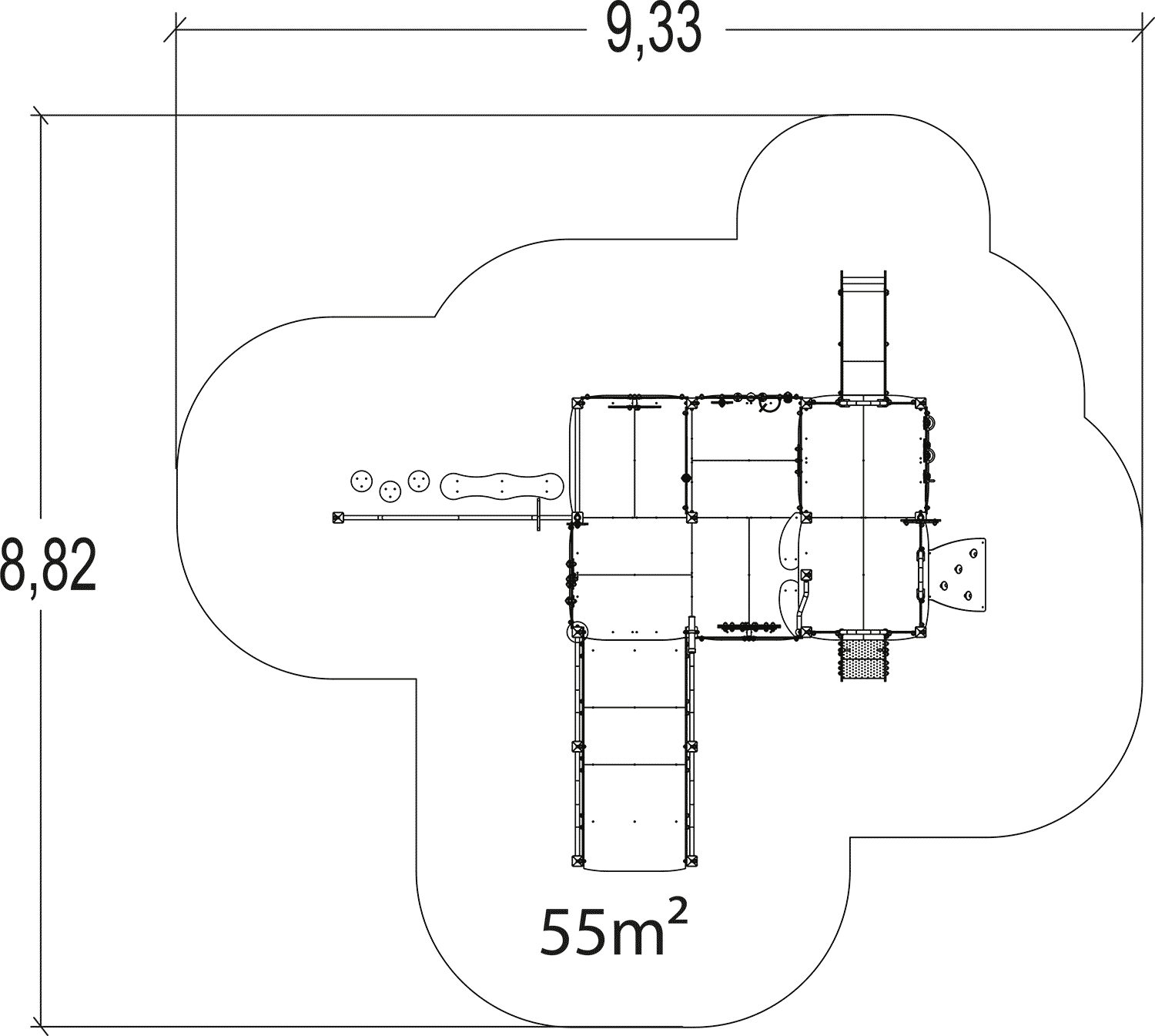

Surface:	55.00 m2
Total weight:	773.37 kg
Weight of the heaviest element:	22.25 kg

Environmental Indicators

Repairability

9.43 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

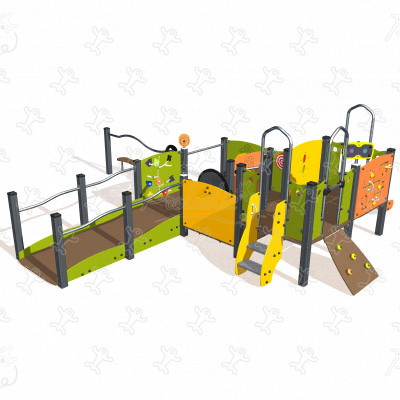

J38200 playgrounds multiplay equipment diabolo image 3d

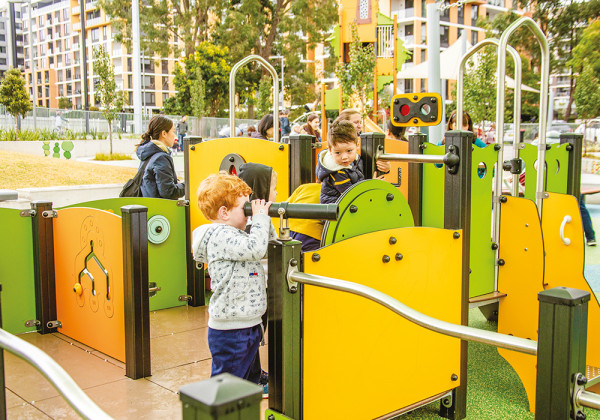

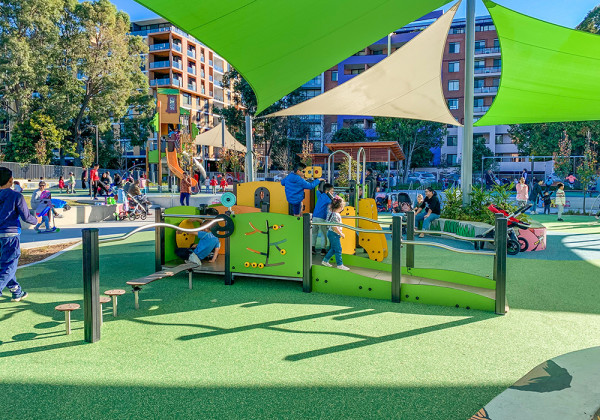

J38200 playgrounds multiplay equipment diabolo image photo

J38200 playgrounds multiplay equipment diabolo image side view

J38200 playgrounds multiplay equipment diabolo image view from above

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platform and the climbing wall are made from a 12.5mm thick textured and non-slip compact material (HPL).

The anti-slip steps are made of corrugated aluminium sheets ensuring durability and lasting good looks.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
