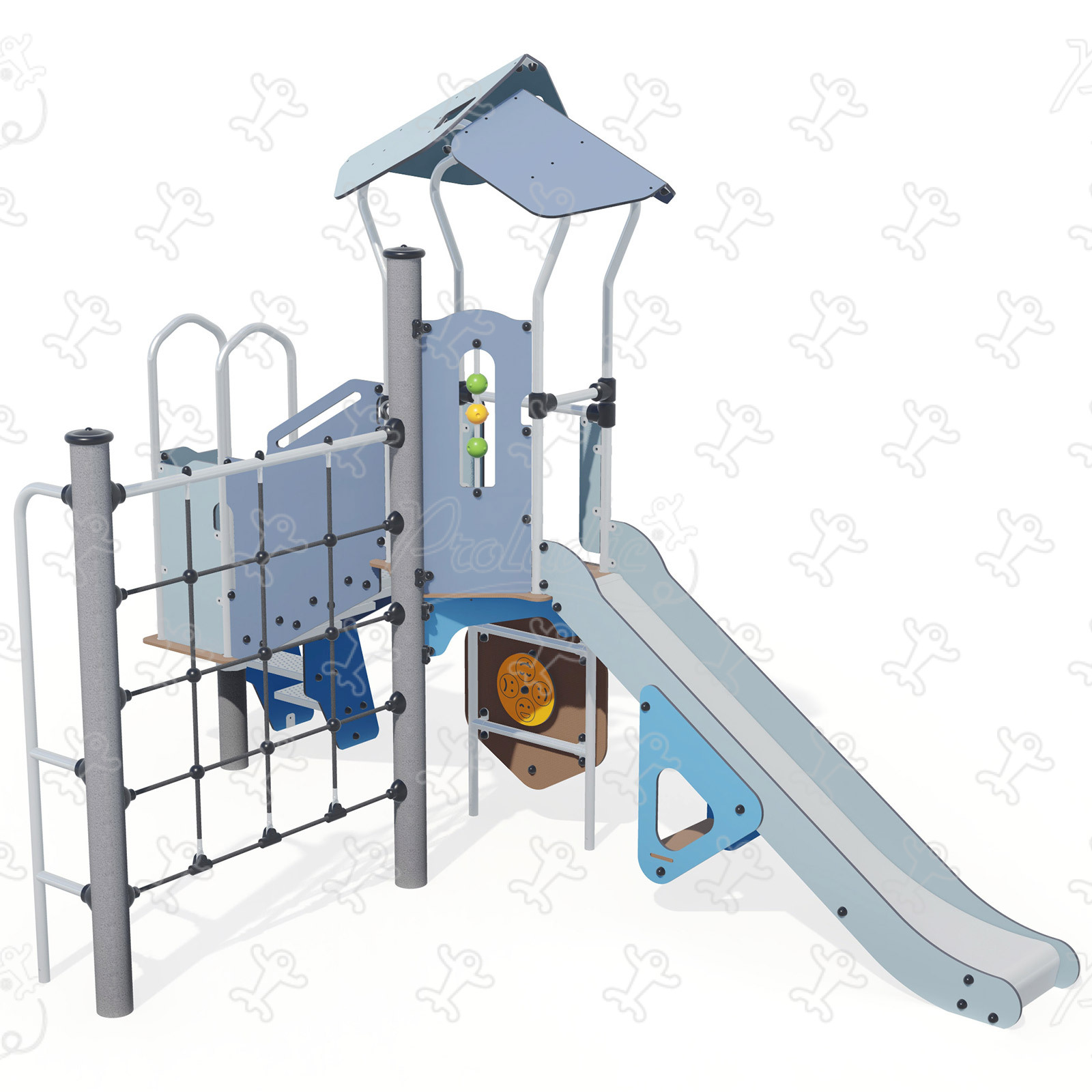

Multiplay equipment with slide - elevated playhouse - and climbing activities - J3836-ICE®

We have created the reference J3836-ICE® in our "Diabolo" range. This play equipment is accessible from 2 years. It can accommodate up to 18 users.

The size of the module is: 4.28 m length, 2.82 m width, 3.14 m. high. The free fall height (FFH) is 1.80 m.

Other themes

J3836-ICE®

Grafic Games® Medieval

Grafic Games® Océane

Grafic Games® Metropolis

Add an engraving

Learn more about Diabolo

15 play functions

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x2

A great exercise for developing motor skills and abilities in young children while having fun.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Specifications

Age range:	2+
Number of users:	18 users
FFH :	1.80 m
Size:	4.28 x 2.82 x 3.14 m

Equipment installation

Number of installers:	2
Installation time:	12:00:00
Concrete volume:	0.20 m3
Surface:	32.00 m2
Total weight:	302.80 kg
Weight of the heaviest element:	22.49 kg

Environmental Indicators

Repairability

9.43 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

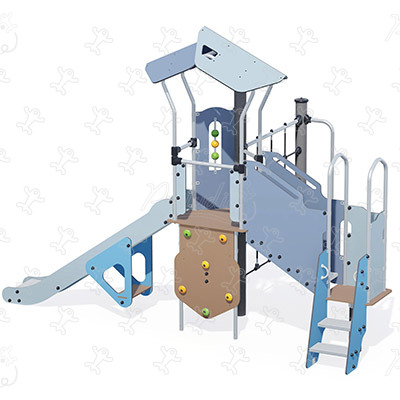

J3836-ICE® playgrounds multiplay equipment diabolo image 3d

J3836-ICE® playgrounds multiplay equipment diabolo image side view

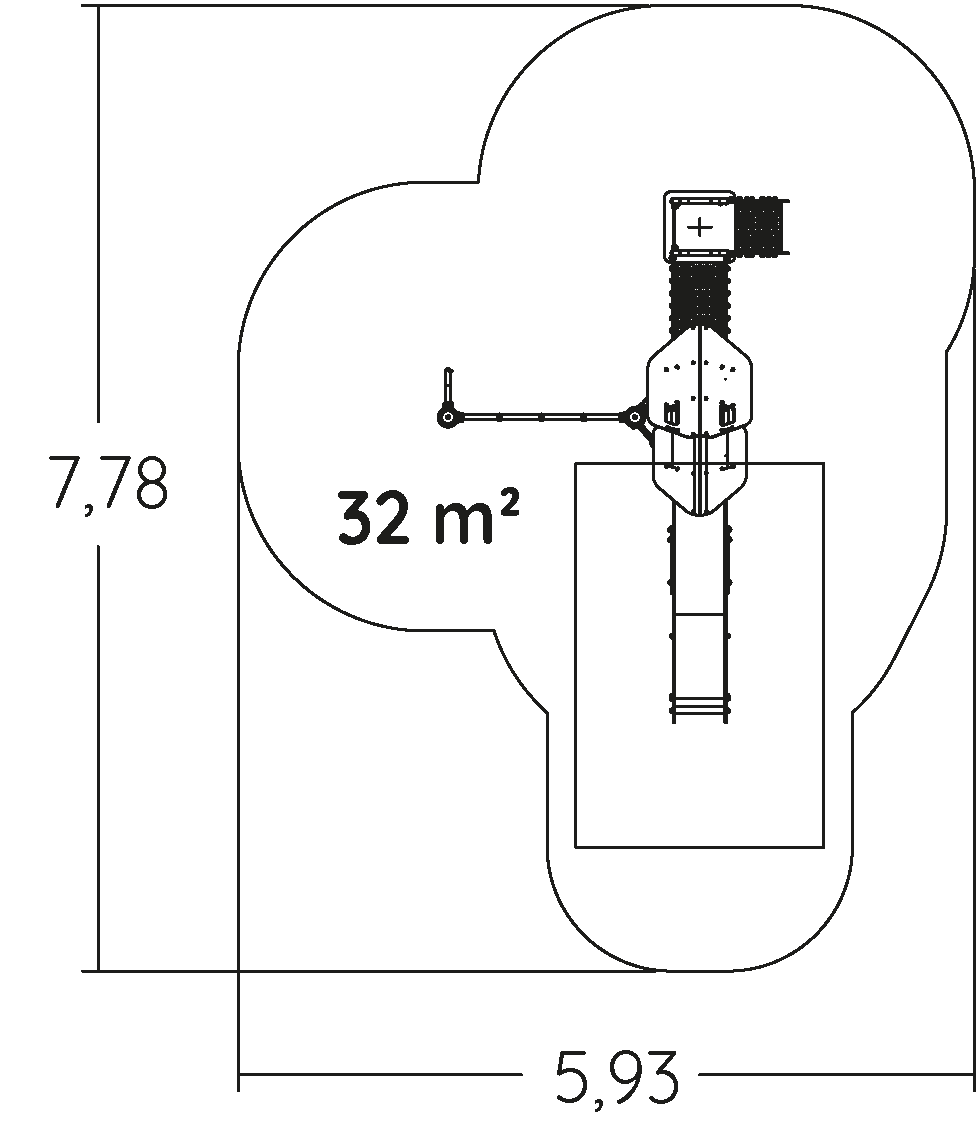

J3836-ICE® playgrounds multiplay equipment diabolo image view from above
