Leo and the Tawny Owl
J4031®

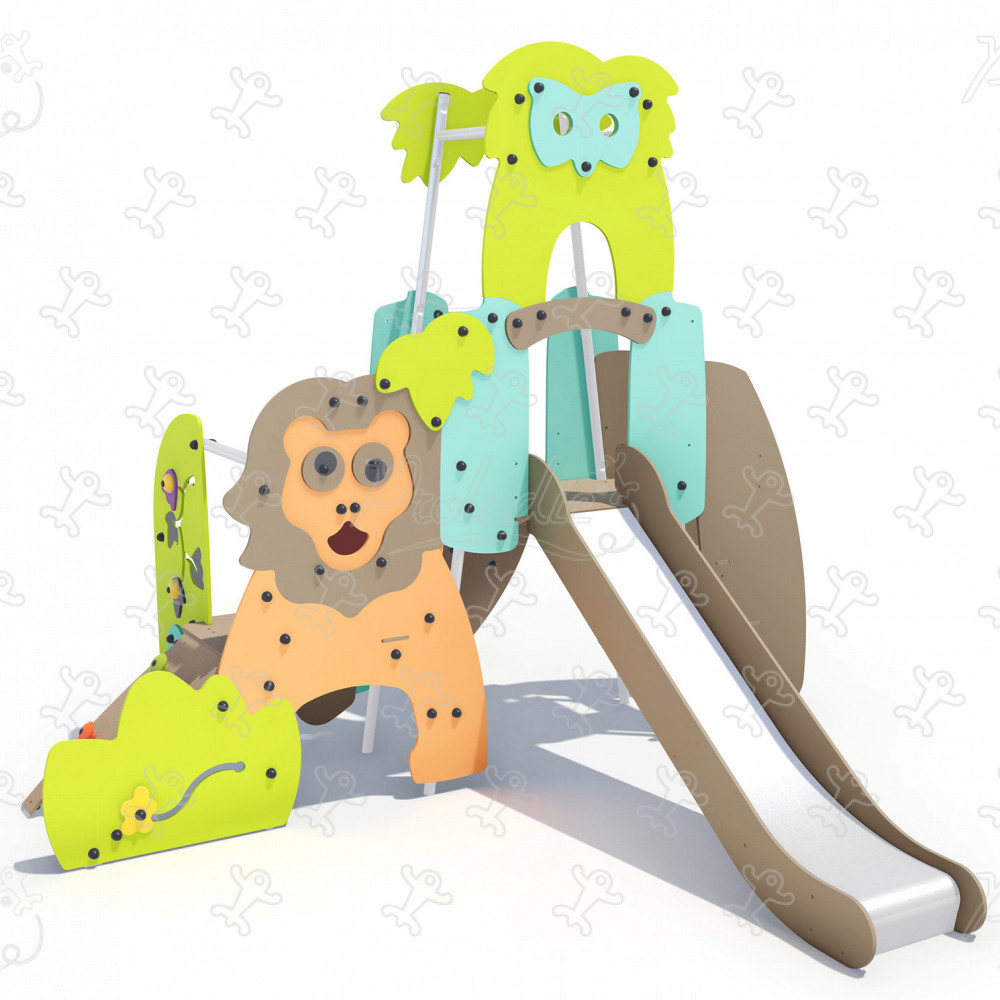

We have created the reference J4031® in our "Adventure" range. This play equipment is accessible from 2 years. It can accommodate up to 12 users.

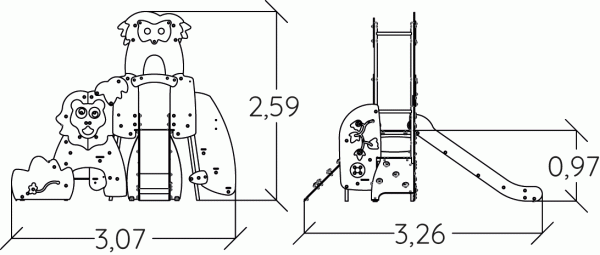

The size of the module is: 3.26 m length, 3.07 m width, 2.59 m. high. The free fall height (FFH) is 1.00 m.
| Age range: | 2+ |
| Number of users: | 12 users |
| FFH : | 1.00 m |
| Size: | 3.26 x 3.07 x 2.59 m |
| Number of installers: | 2 |
| Installation time: | 12:00:00 |
| Concrete volume: | 0.35 m3 |

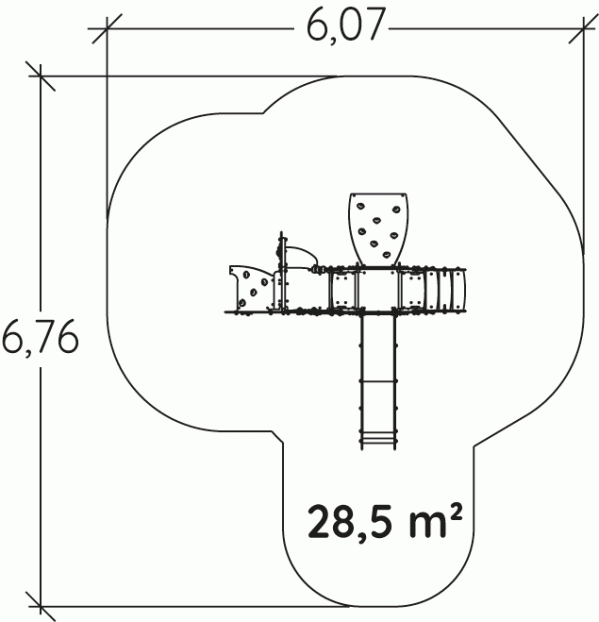

| Surface: | 28.50 m2 |
| Total weight: | 242.98 kg |
| Weight of the heaviest element: | 14.75 kg |
Repairability
9.43 /10
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The platform is made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platform. Read more

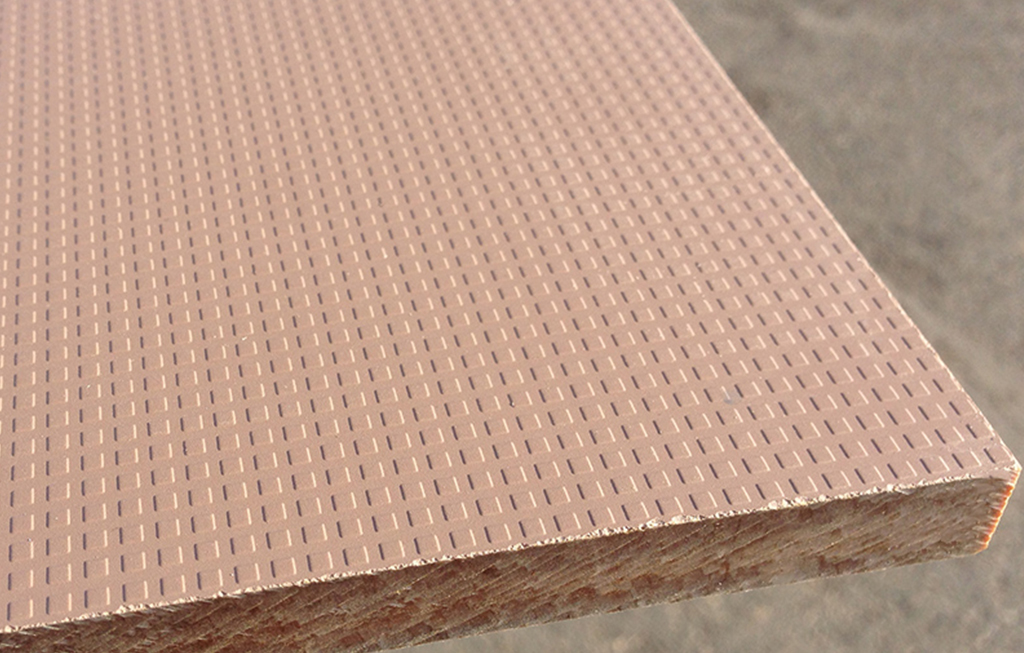

The steps and the inclined elements are made from a 12.5mm thick, textured, non-slip compact material (HPL).
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.
Plastic parts are made of injected polyamide.
The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
