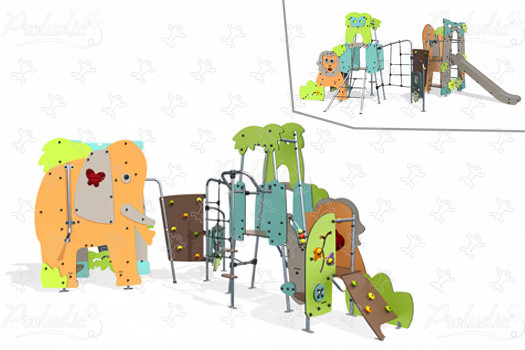

Jungle - Multiplay equipment with slide, climbing activities, and play panel - J4091

We have created the reference J4091 in our "Adventure" range. This play equipment is accessible from 2 years. It can accommodate up to 25 users.

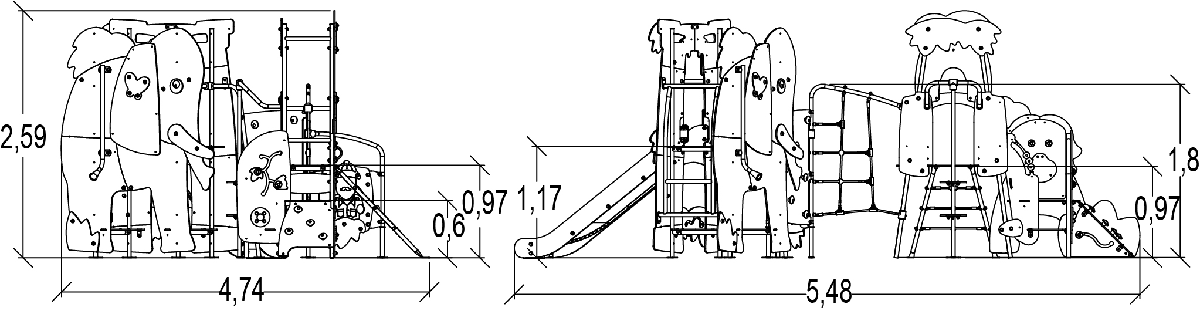

The size of the module is: 5.48 m length, 4.74 m width, 2.59 m. high. The free fall height (FFH) is 1.80 m.

Specifications

Age range: 2+
Number of users: 25 users
FFH : 1.80 m
Size: 5.48 x 4.74 x 2.59 m

Equipment installation

Number of installers: 2
Installation time: 16:00:00
Concrete volume: 0.60 m3

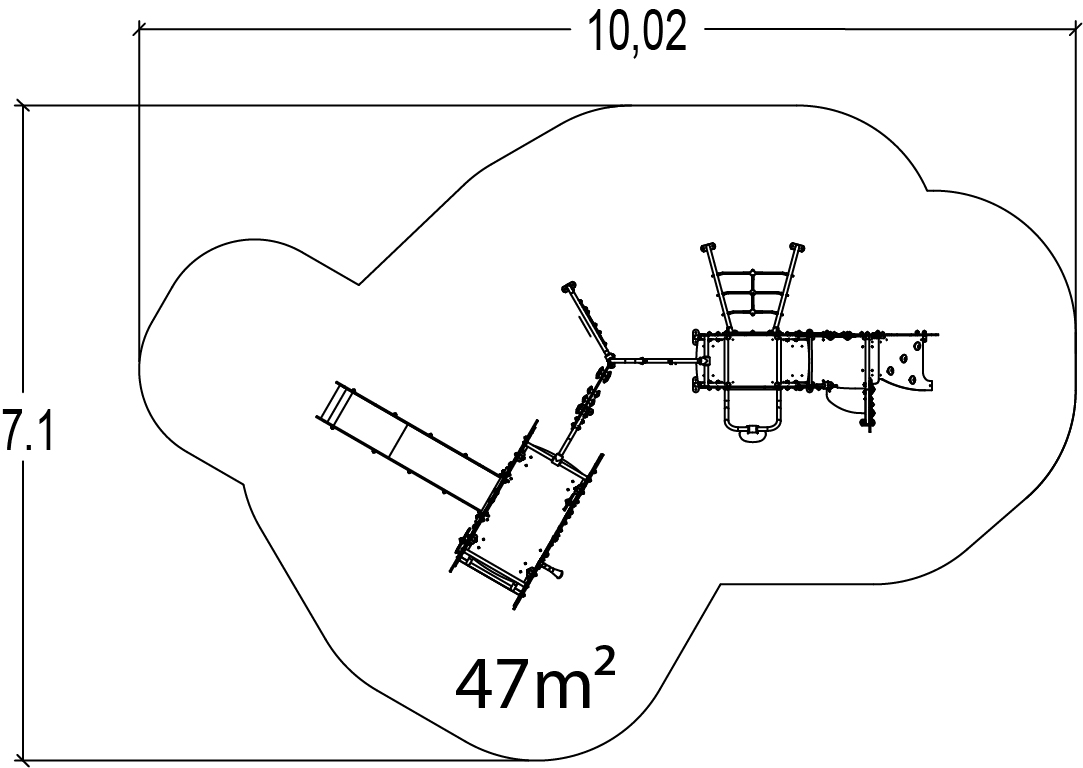

Surface: 47.50 m2
Total weight: 497.12 kg
Weight of the heaviest element: 17.28 kg

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Materials

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more

The steps, the climbing wall and the inclined element

The steps, the climbing wall and the inclined element are made from a 12.5mm thick, textured, non-slip compact material (HPL).

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter ropes

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The sliding surface

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The abacus spheres

The abacus spheres are made of polycarbonate sheets.

Plastic parts

Plastic parts are made of injected polyamide.

The climbing holds

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
