Barge - Giant wooden boat playground equipment - J49171®

We have created the reference J49171® in our "Boats and seascapes" range. This play equipment is accessible from 3 years. It can accommodate up to 70 users.

The size of the module is: 12.13 m length, 6.45 m width, 3.20 m. high. The free fall height (FFH) is 1.50 m.

Custom Product

Simplified documentation, lead times upon request, on-site certification. Additional shipping costs may apply.

43 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Resting x4

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x4

A great exercise for developing motor skills and abilities in young children while having fun.

Balancing x7

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Taking shelter x2

A refuge where the children can take shelter ensures that children have their own space.

Sound stimulation x2

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Visual stimulation x10

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x9

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x3

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	3+
Number of users:	70 users
FFH :	1.50 m
Size:	12.13 x 6.45 x 3.20 m

Equipment installation

Concrete volume:	3.12 m3
Surface:	100.50 m2

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

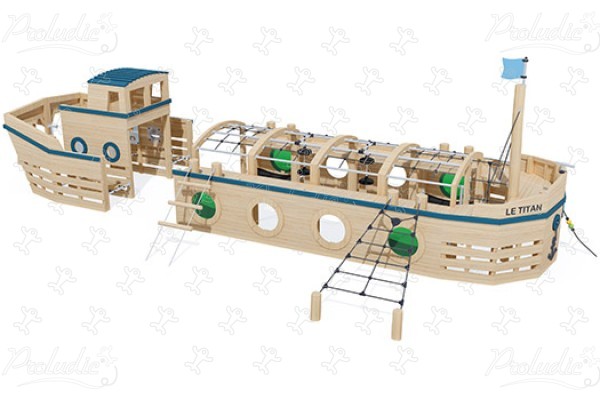

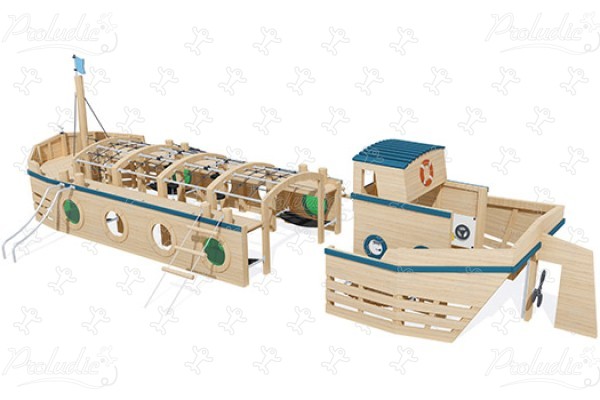

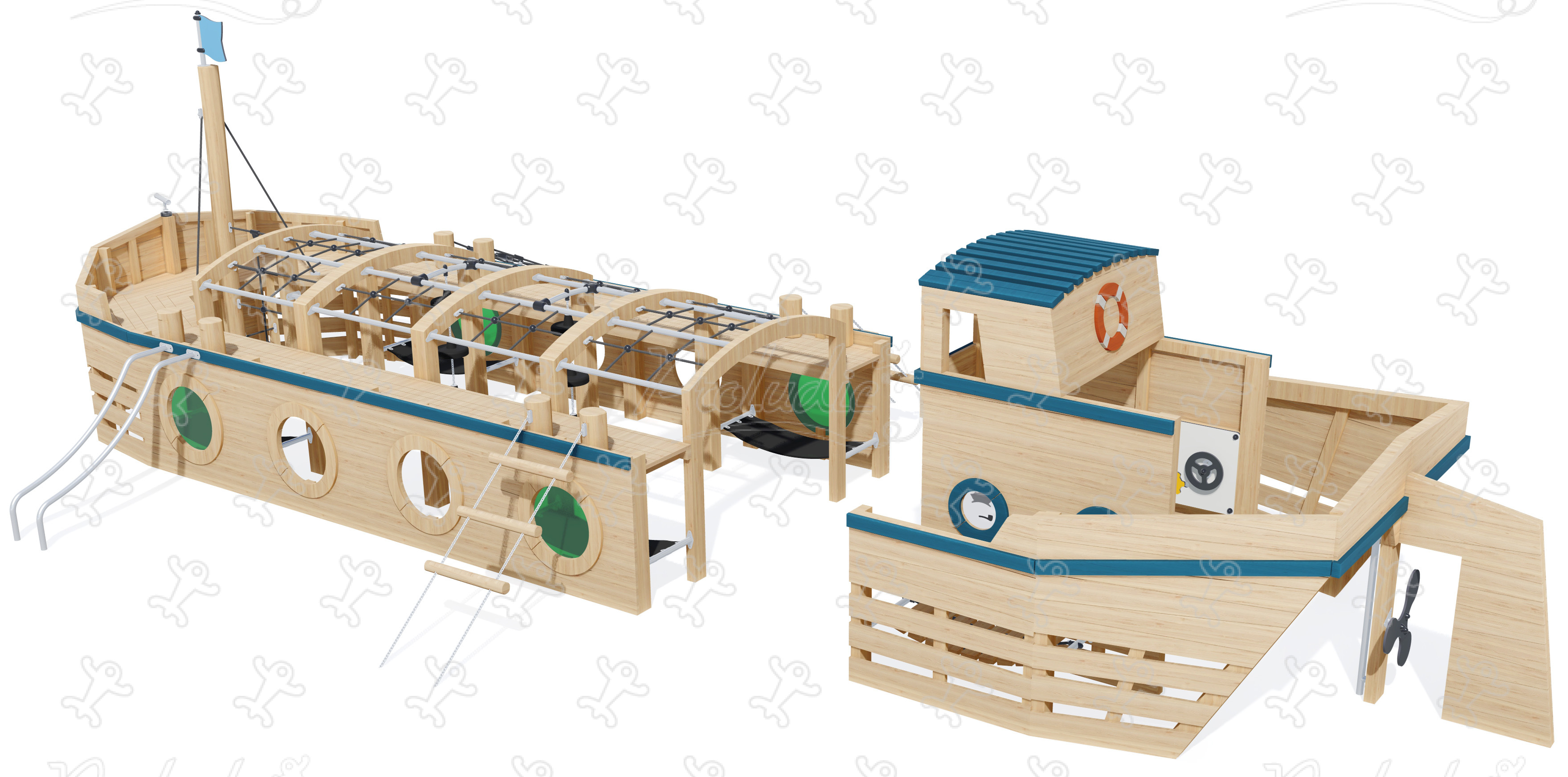

Barge J49171® playgrounds sustainable natural wood equipment boats and seascapes image 3d

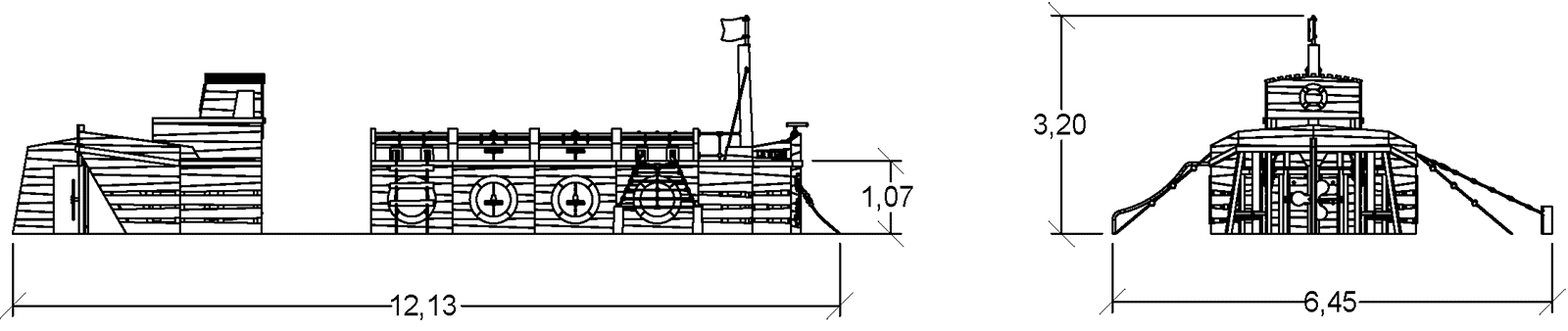

Barge J49171® playgrounds sustainable natural wood equipment boats and seascapes image side view

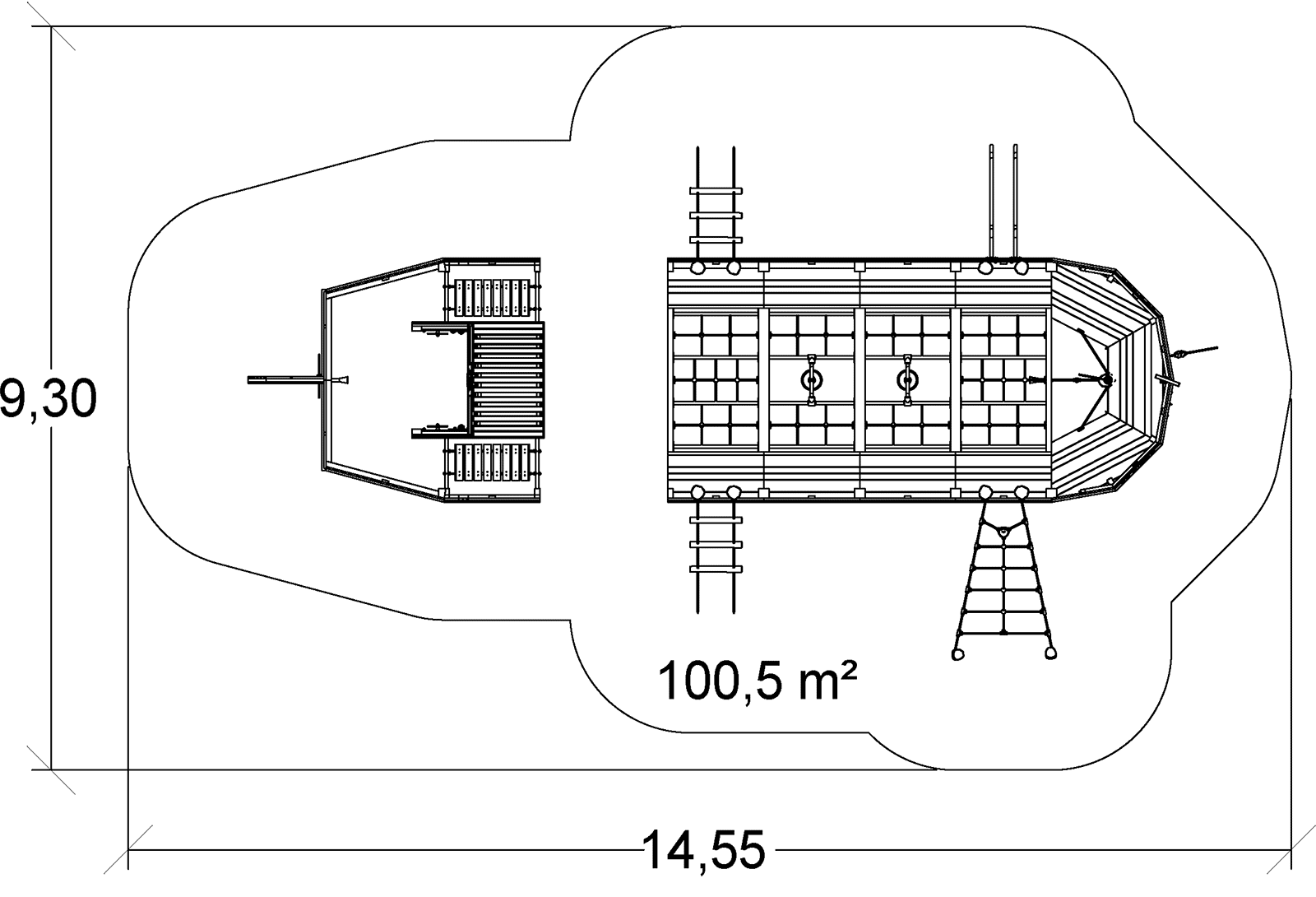

Barge J49171® playgrounds sustainable natural wood equipment boats and seascapes image view from above

Materials

The boards are made from natural robinia wood or Douglas fir (plank sizes: 22, 27 and 45mm). Robinia wood and Douglas fir are naturally rot proof and do not... require any additional chemical protection; they are equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. The coloured panels are using a staining process. Read more

The different posts are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The portholes are made from 8mm thick methacrylate (PMMA).

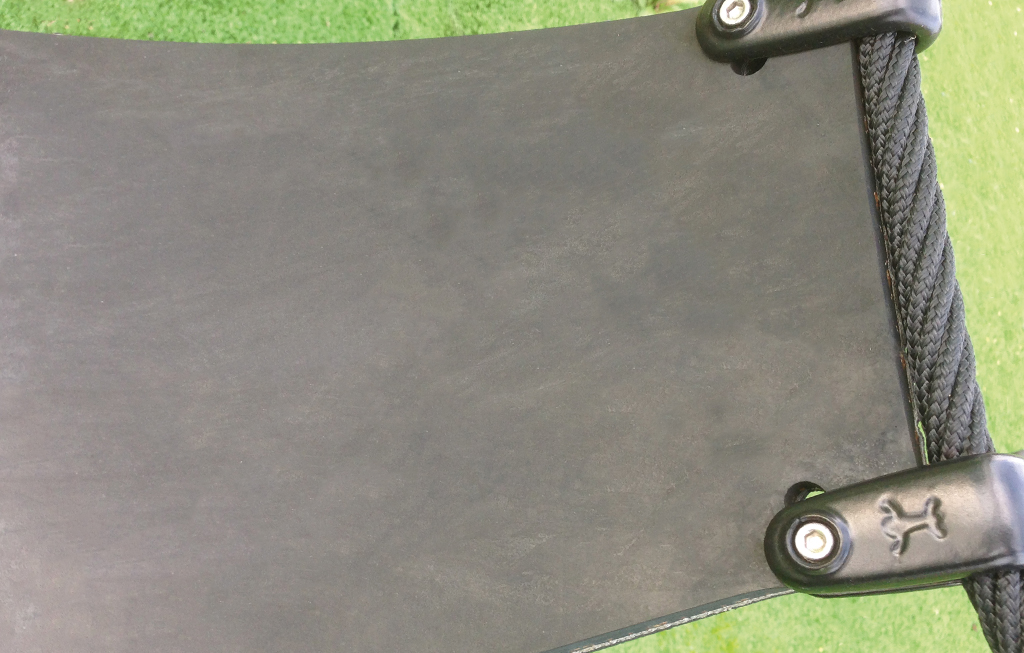

The seats are made from rubber, 13mm thick.

The steps are made with a non-slip rubber overmould.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
