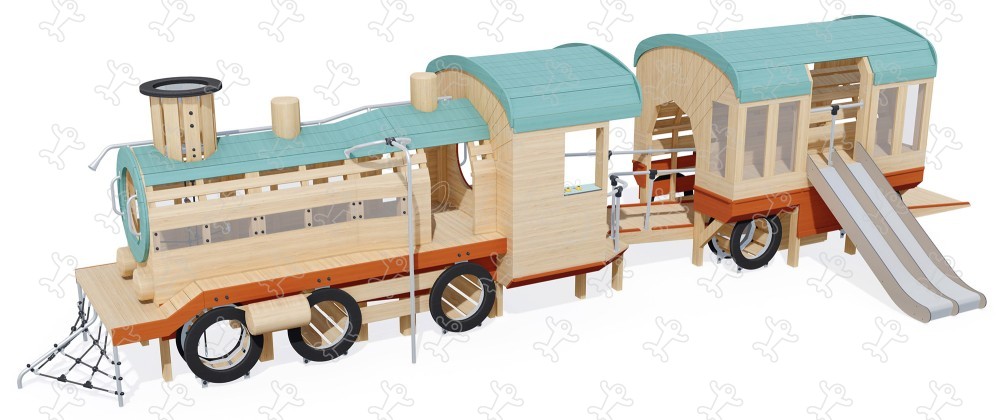

Wooden train multi-activity play structure with slides - Train - J49197®

We have created the reference J49197® in our "Transport" range. This play equipment is accessible from 2 years. It can accommodate up to 60 users.

The size of the module is: 12.37 m length, 5.72 m width, 2.70 m. high. The free fall height (FFH) is 2.05 m.

Custom Product

Simplified documentation, lead times upon request, on-site certification. Additional shipping costs may apply.

21 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x4

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x2

A great exercise for developing motor skills and abilities in young children while having fun.

Crawling x5

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Sound stimulation x1

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Climbing x5

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	2+
Number of users:	60 users
FFH :	2.05 m

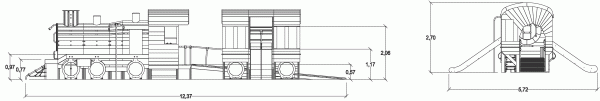

Size:	12.37 x 5.72 x 2.70 m

Equipment installation

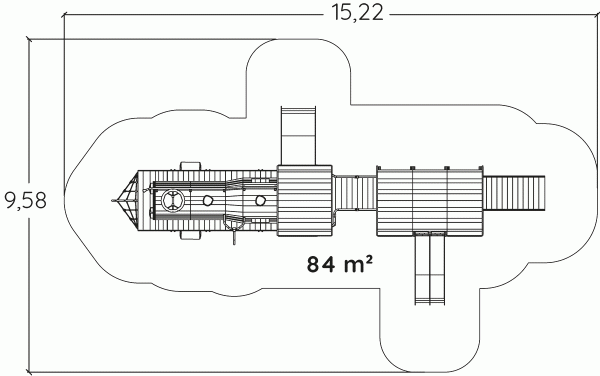

Surface:	84.00 m2
Total weight:	0.06 kg

Environmental Indicators

Repairability

8.98 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

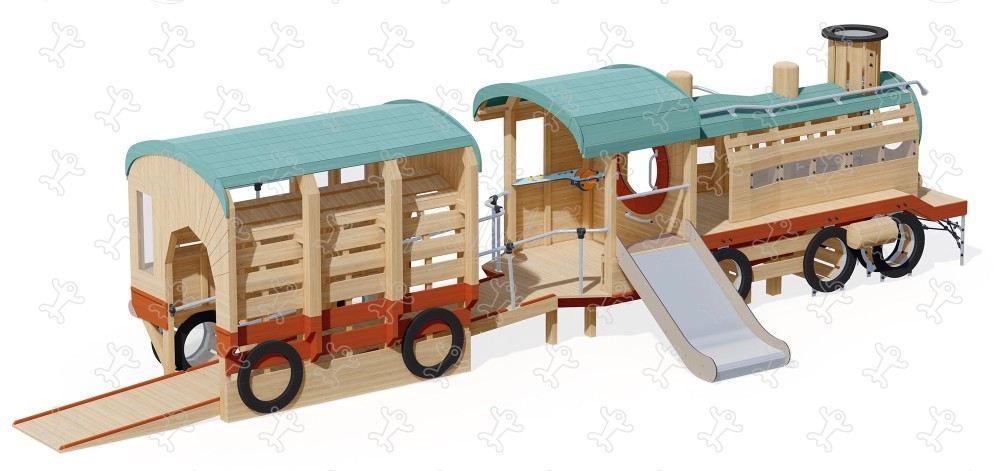

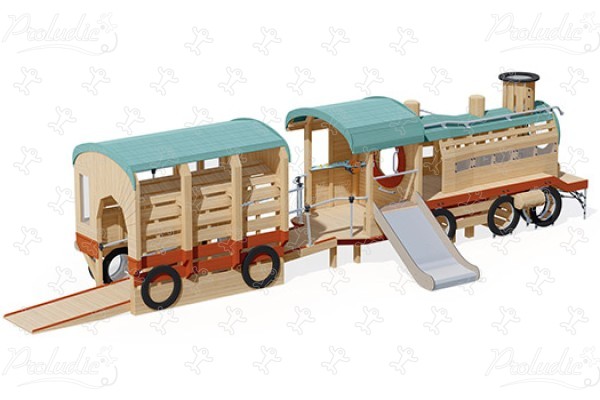

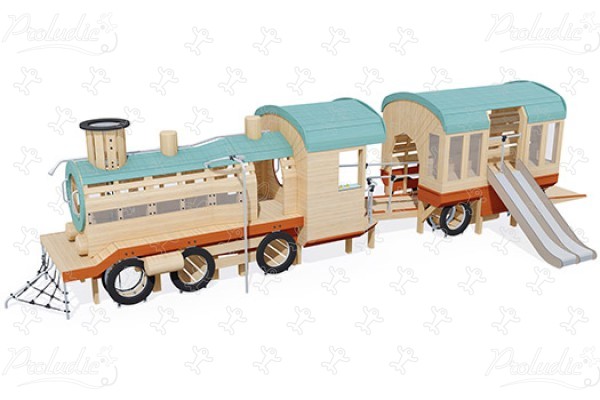

Train J49197® playgrounds sustainable natural wood equipment transport image 3d

Train J49197® playgrounds sustainable natural wood equipment transport image side view

Train J49197® playgrounds sustainable natural wood equipment transport image view from above

Materials

The boards are made from natural robinia wood or Douglas fir (plank sizes: 22, 27 and 45mm). Robinia wood and Douglas fir are naturally rot proof and do not... require any additional chemical protection; they are equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. The coloured panels are using a staining process. Read more

The different posts are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

The cables are linked together and held in place by injected polyamide spheres.

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The sliding surfaces are made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece. The sides are made from a 13mm thick compact material (HPL).

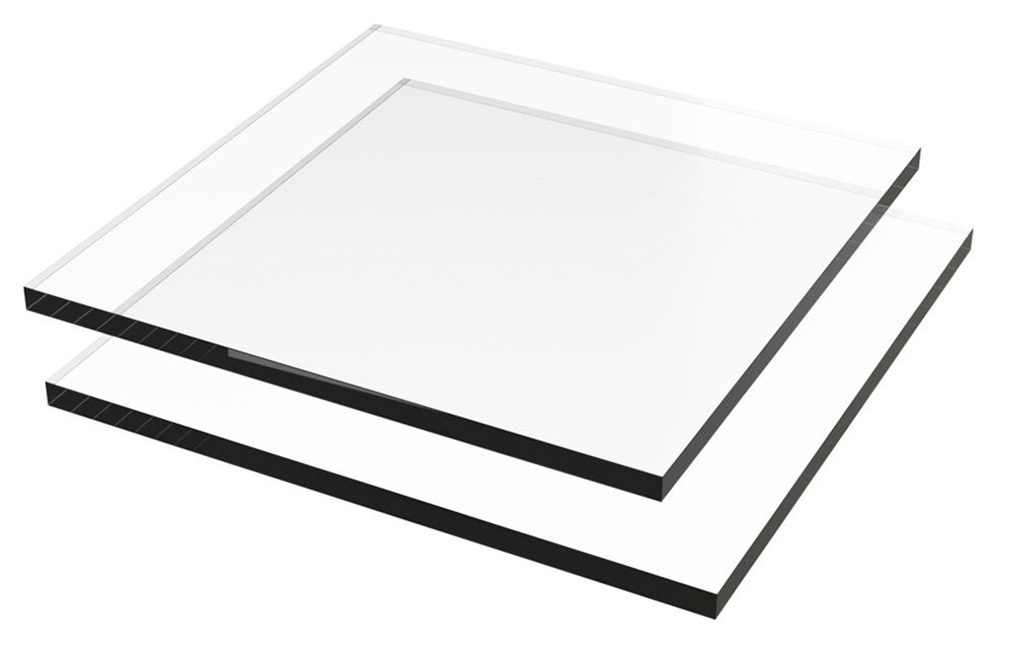

The portholes are made from 8mm thick methacrylate (PMMA).

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
