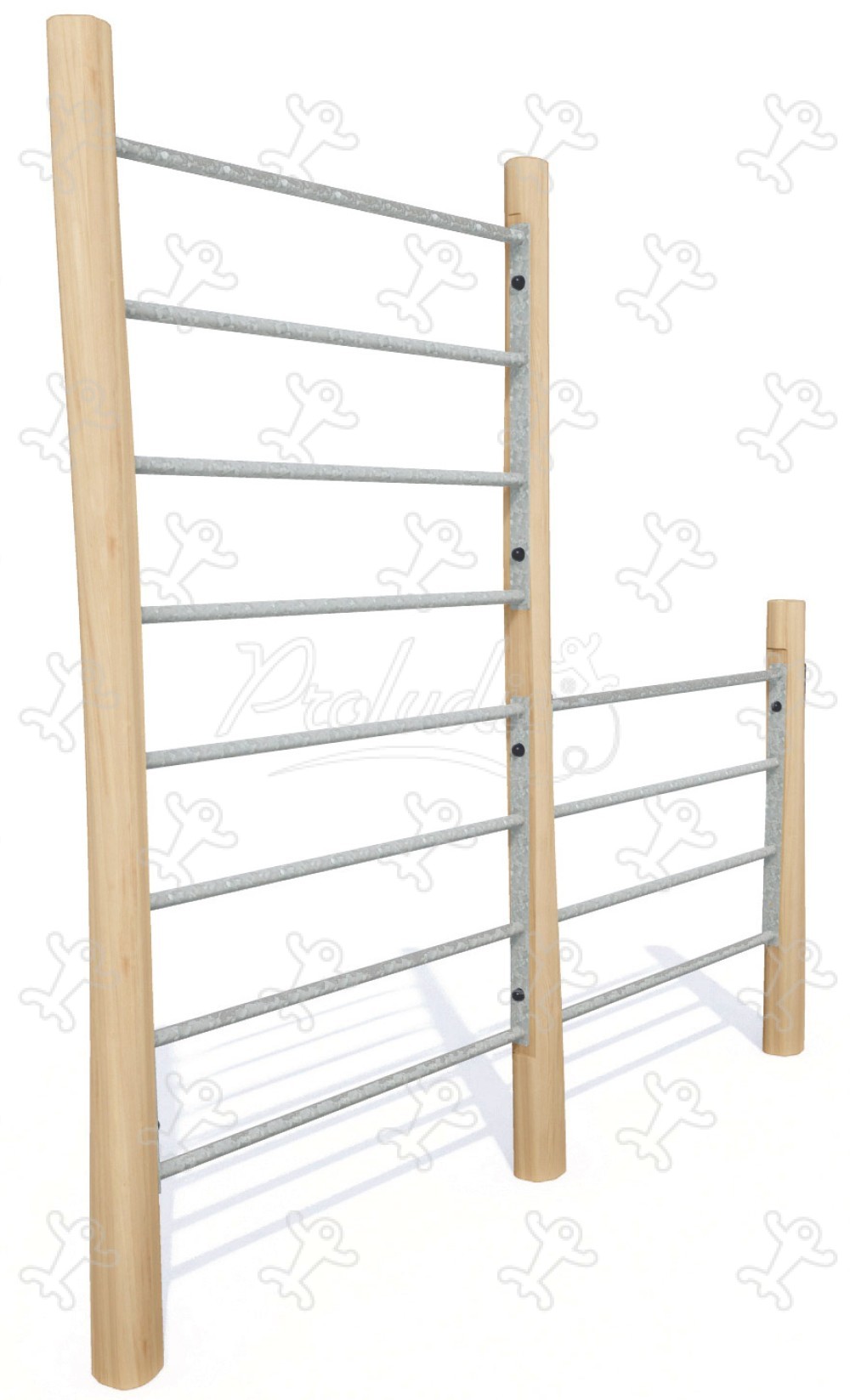

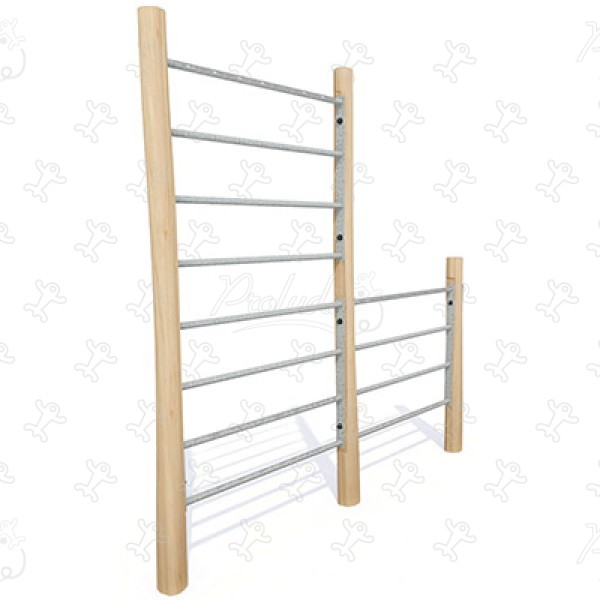

Double wall bars in wood and stainless steel - J4922

We have created the reference J4922 in our "Fitness" range. This activity equipment is accessible from 1.40 m. It can accommodate up to 2 users.

The size of the module is: 2.71 m length, 0.16 m width, 2.60 m. high. The free fall height (FFH) is 2.44 m.

Standard Product

Complete documentation, TÜV certification issued.

In short

Sports Equation

Muscle stimulation

6 sports activities

Push-ups x2

Balancing x2

Climbing x1

Hanging x1

Specifications

Minimum size:	> 1.40 m
Number of users:	2 users
FFH :	2.44 m

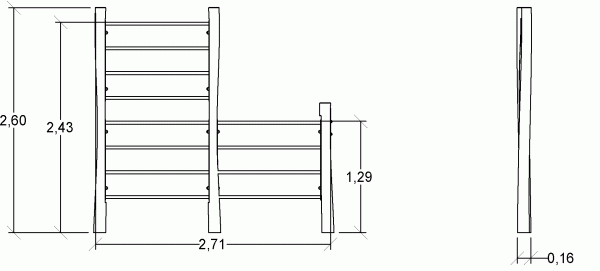

Size:	2.71 x 0.16 x 2.60 m

Equipment installation

Number of installers:	2
Installation time:	01:30:00
Concrete volume:	0.20 m3
Surface:	24.50 m2
Total weight:	137.62 kg
Weight of the heaviest element:	36.30 kg

Environmental Indicators

Repairability

8.98 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Materials

The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
