Proludic UK

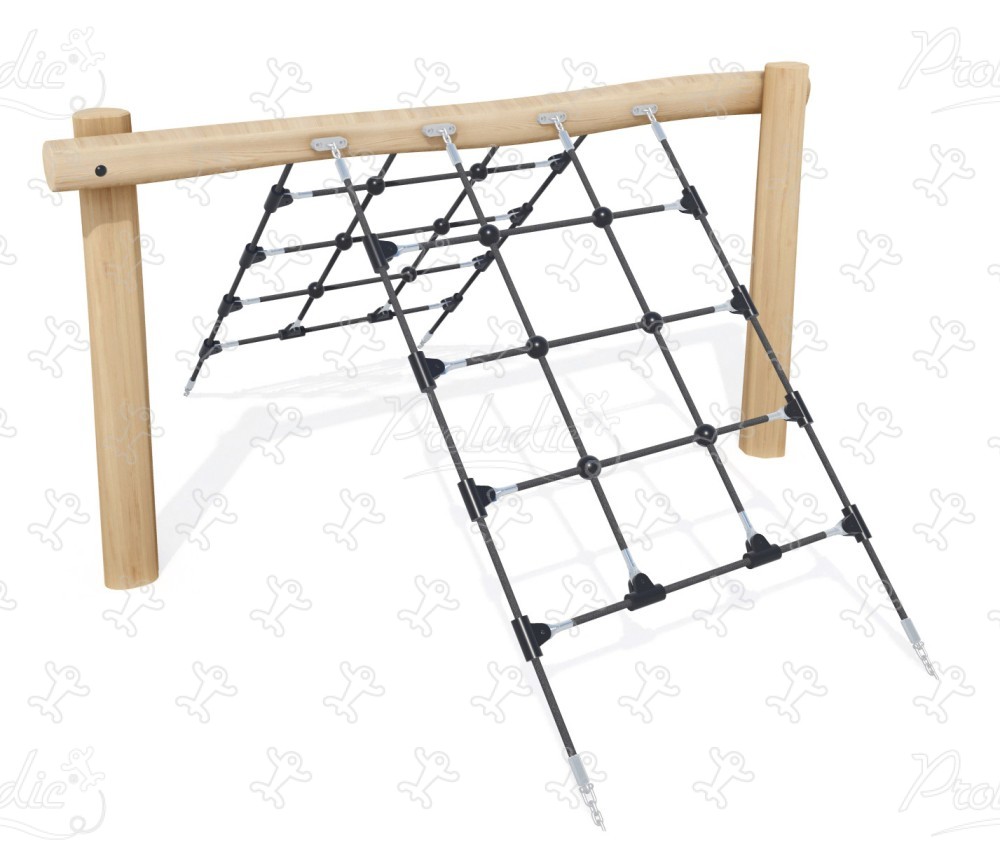

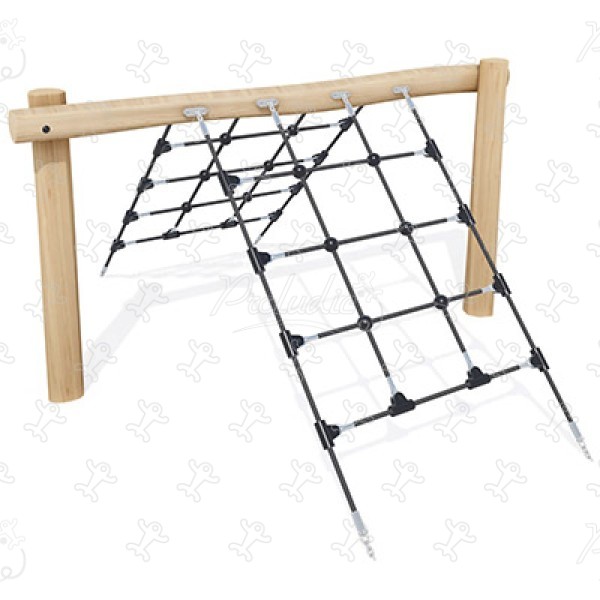

Angled climbing net
J4925
We have created the reference J4925 in our "Balancing trails" range. This play equipment is accessible from 1.40 m. It can accommodate up to 4 users.

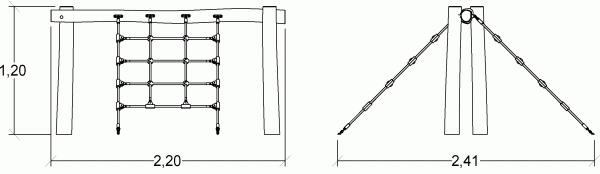

The size of the module is: 2.20 m length, 2.41 m width, 1.20 m. high. The free fall height (FFH) is 1.20 m.
Standard Product
Complete documentation, standard lead times, TÜV certification issued.
| Minimum size: | > 1.40 m |
| Number of users: | 4 users |
| FFH : | 1.20 m |
| Size: | 2.20 x 2.41 x 1.20 m |
| Number of installers: | 2 |
| Installation time: | 01:00:00 |
| Concrete volume: | 0.20 m3 |

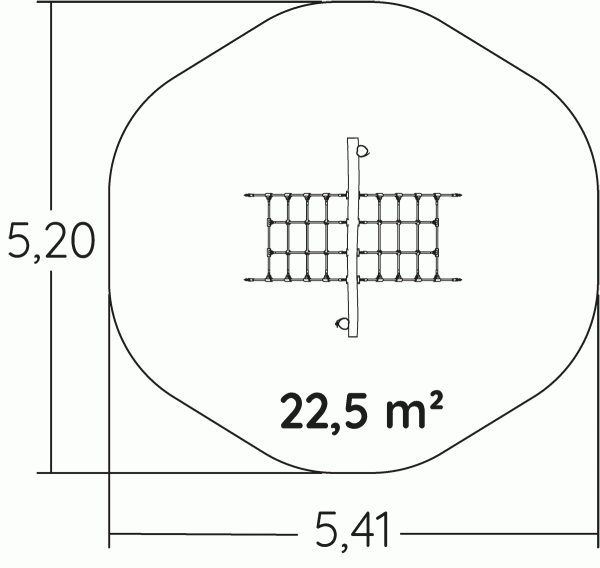

| Surface: | 22.50 m2 |
| Total weight: | 75.77 kg |
| Weight of the heaviest element: | 20.90 kg |
Repairability
8.98 /10
The different posts (average diameter: 100 to 120mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is... naturally rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.
The fixings for the nets are made from aluminium.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
