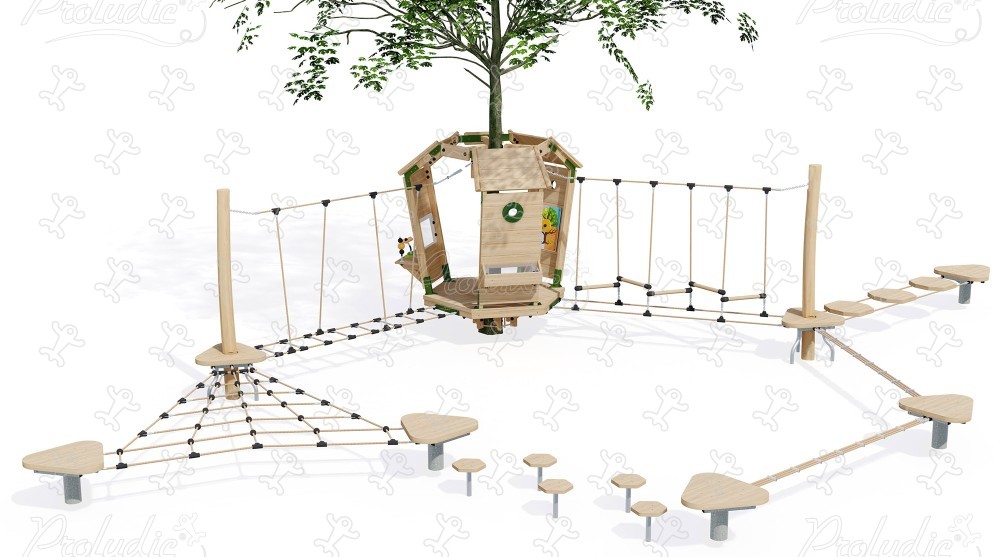

Platform connected to the trees with cabin and course - J49900®

We have created the reference J49900® in our "Arborea Play®" range. This play equipment is accessible from 2 years. It can accommodate up to 29 users.

The size of the module is: 9.20 m length, 7.02 m width, 2.17 m. high. The free fall height (FFH) is 0.60 m.

Standard Product

Complete documentation, standard lead times, TÜV certification issued.

28 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Balancing x6

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Tactile stimulation x2

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x2

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x8

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x7

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	2 - 6
Number of users:	29 users
FFH :	0.60 m
Size:	9.20 x 7.02 x 2.17 m

Equipment installation

Number of installers:	3
Installation time:	08:00:00
Concrete volume:	2.00 m3

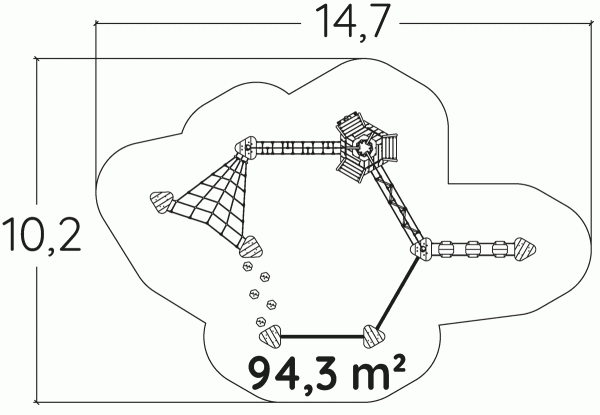

Surface:	91.00 m2
Total weight:	818.67 kg
Weight of the heaviest element:	54.59 kg

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

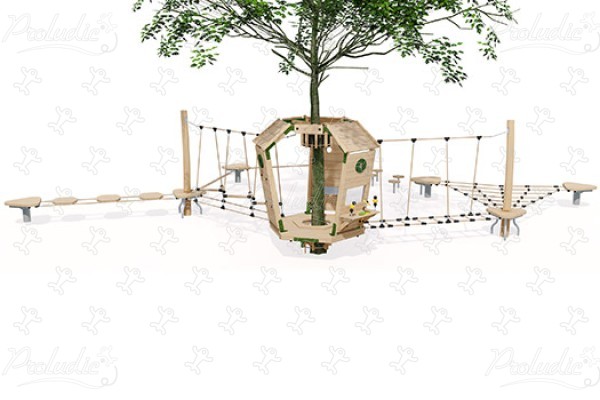

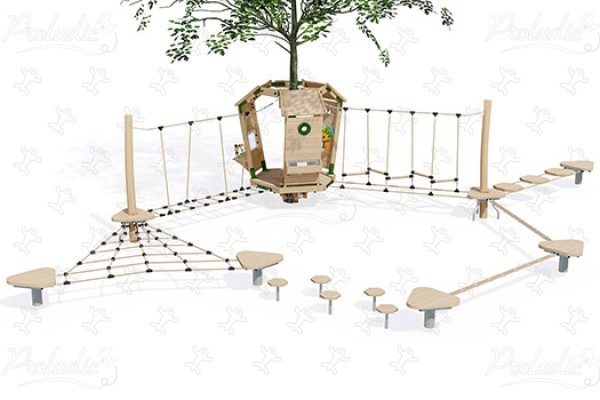

J49900® playgrounds sustainable natural wood equipment arborea play® image 3d

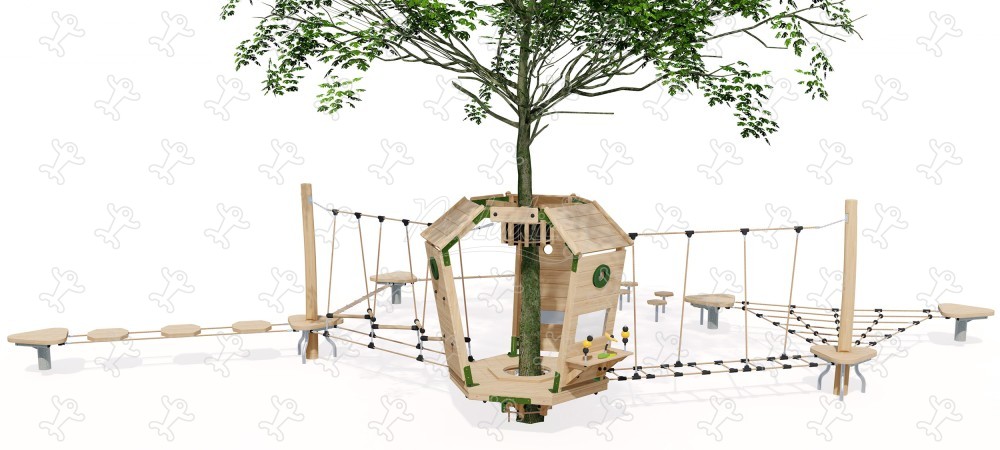

J49900® playgrounds sustainable natural wood equipment arborea play® image side view

J49900® playgrounds sustainable natural wood equipment arborea play® image view from above

Materials

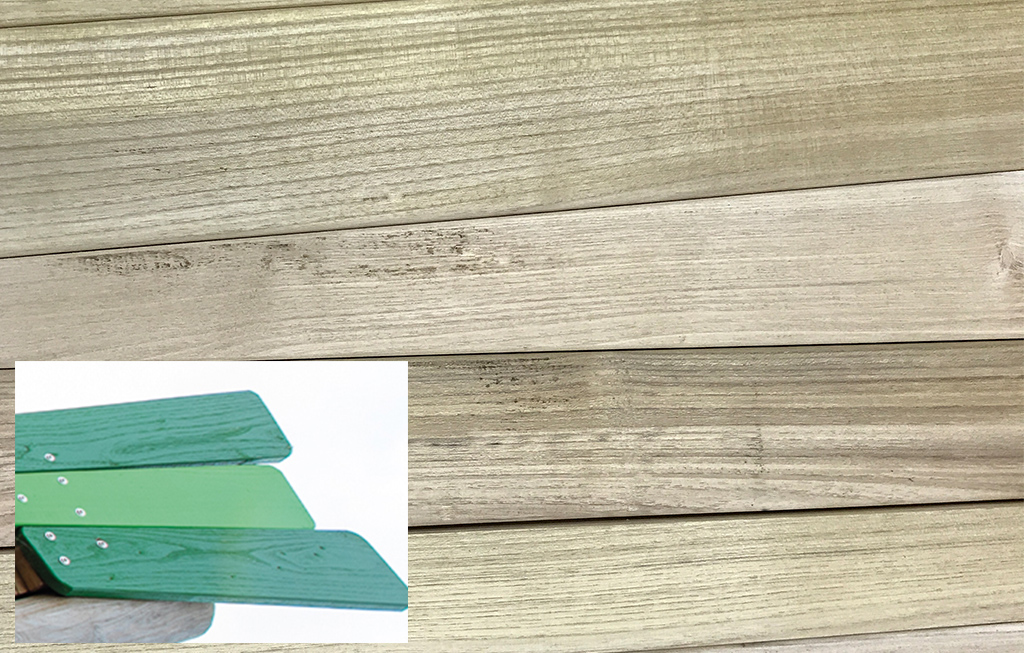

The boards XXXXX are made from natural robinia wood or Douglas fir (plank sizes: 22, 27 and 45mm). Robinia wood and Douglas fir are naturally rot proof and do not... require any additional chemical protection; they are equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. The coloured panels are using a staining process. Read more

The different posts XXXXX (average diameter: 60 to 80mm / 120 to 140mm / 140 to 160mm / 250 to 300mm) are made from sap free robinia. The robinia is sanded and has had its bark... removed. Robinia is naturally rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The cables are linked together and held in place by injected polyamide spheres.

The ladder rungs are made of acacia wood which is naturally rot-resistant and smooth to the touch. They are mounted on a 16mm diameter polyester cable.

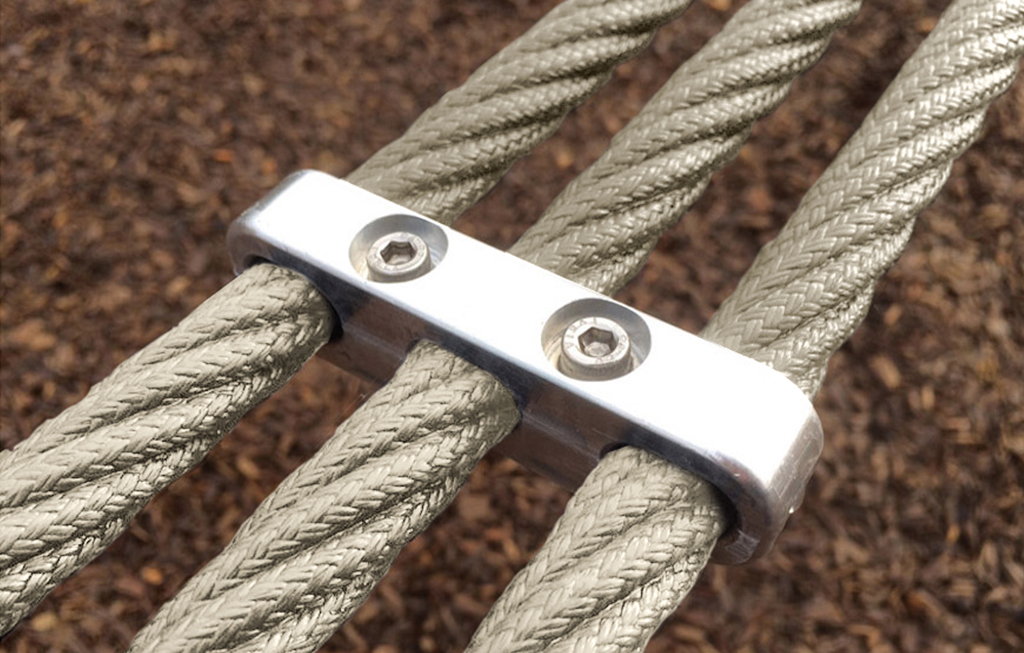

The strap is made of 3 ropes linked together with aluminium pliers. Each rope, of 16mm diameter, is made up of galvanized steel cables covered in polypropylene.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

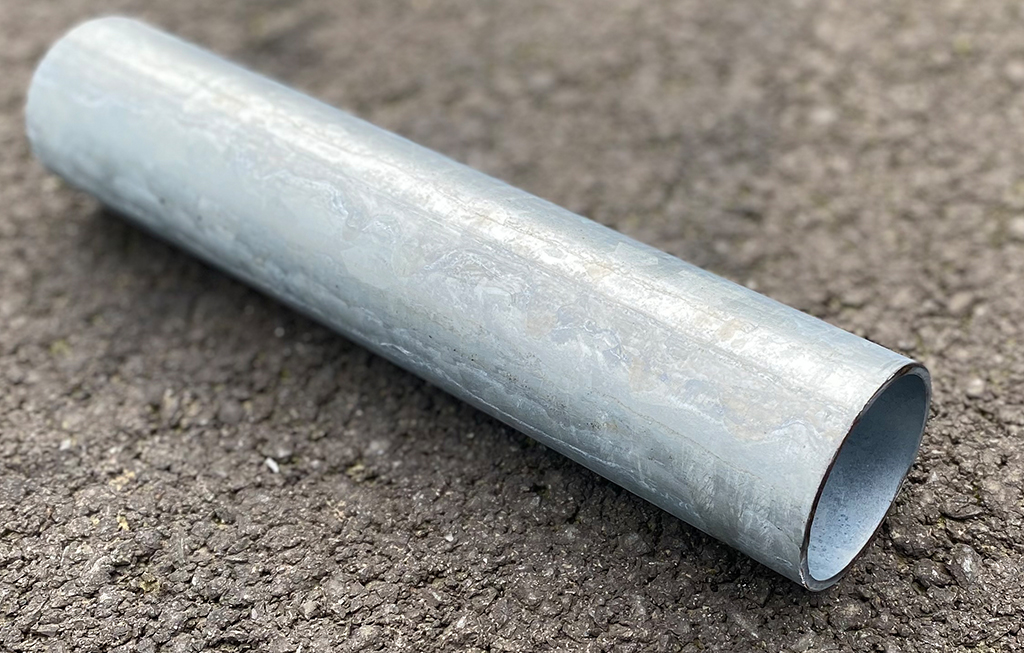

The 133mm diameter supporting posts are made of galvanised steel.

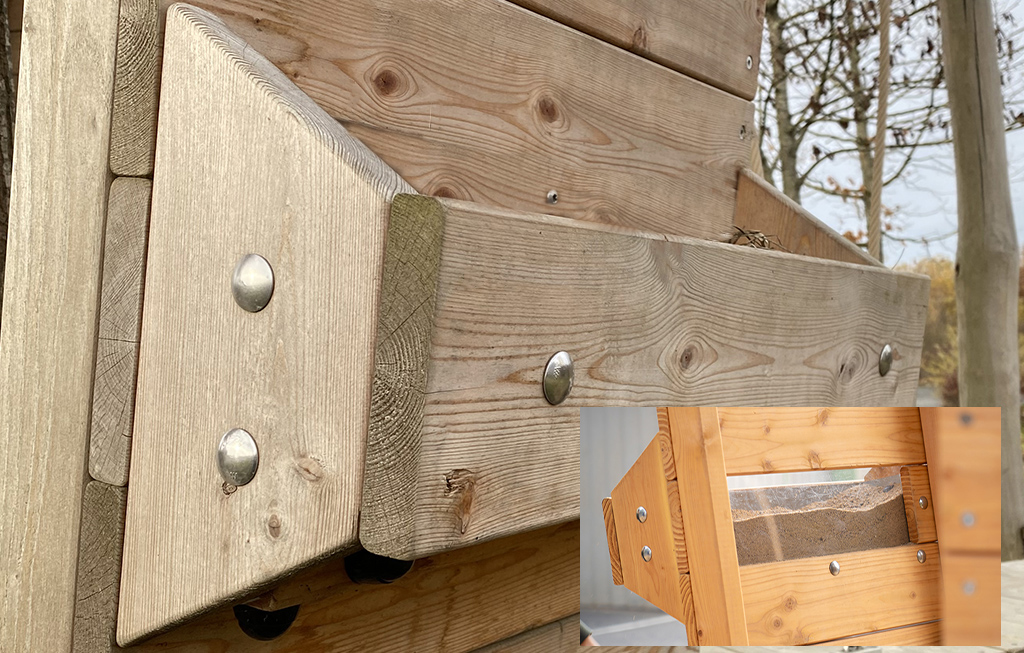

The planter is made of Douglas fir, a wood known for its strength and natural durability outdoors, and plexiglass. It is reinforced by a stainless steel frame,... ensuring stability and longevity. Read more

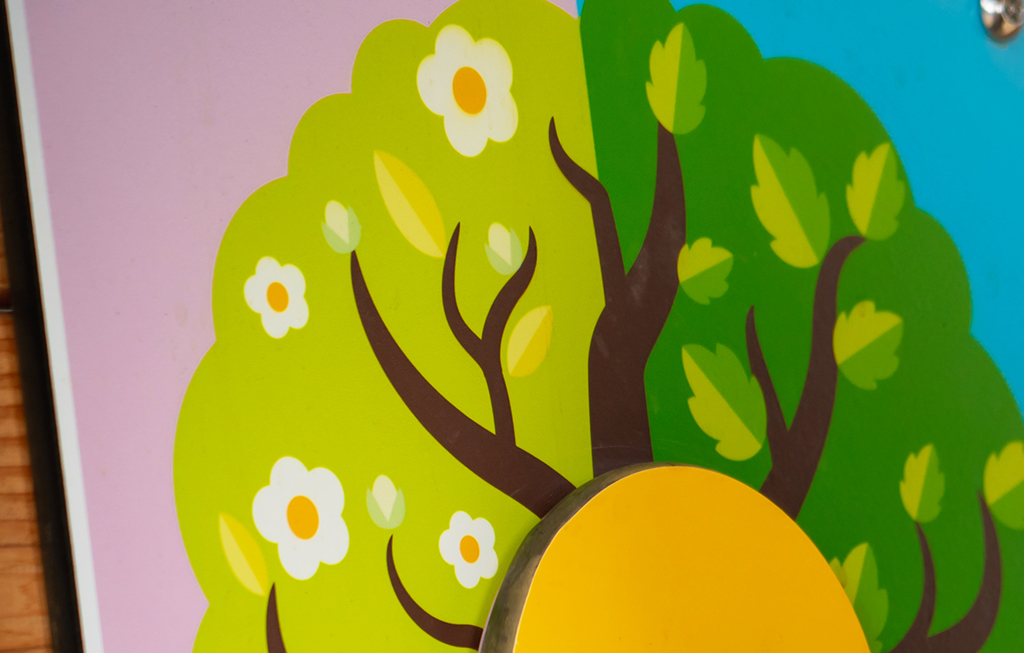

The four seasons panel is made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
