Wooden cableway flying fox for level ground - Origin' range - J522

We have created the reference J522 in our "Cableways" range. This play equipment is accessible from 6 years. It can accommodate up to 2 users.

The size of the module is: 28.35 m length, 6.04 m width, 3.93 m. high. The free fall height (FFH) is 1.40 m.

Standard Product

Complete documentation, standard lead times, TÜV certification issued.

10 play functions

Sliding x2

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

By playing together, children learn how to interact with other personalities and behaviors.

Hanging x2

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	6+
Number of users:	2 users
FFH :	1.40 m
Size:	28.35 x 6.04 x 3.93 m

Equipment installation

Number of installers:	2
Installation time:	20:00:00
Concrete volume:	1.16 m3
Surface:	173.00 m2
Total weight:	2626.52 kg
Weight of the heaviest element:	290.40 kg

Environmental Indicators

Repairability

9.17 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Double Cableway for level ground J522 playgrounds moving equipment cableways image 3d

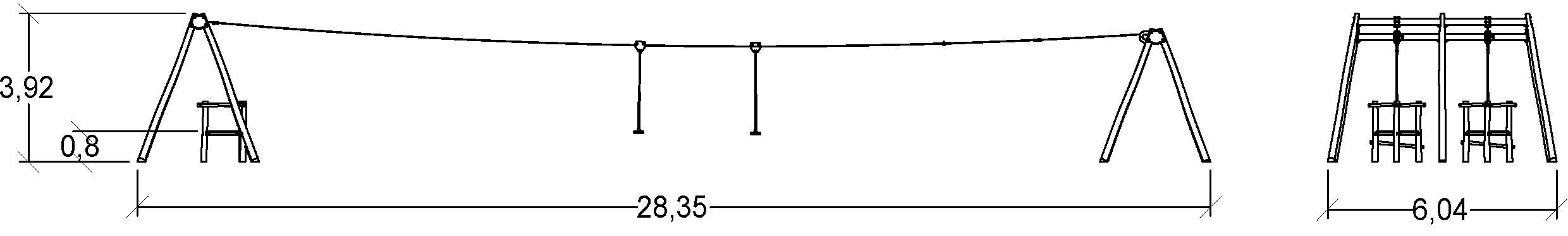

Double Cableway for level ground J522 playgrounds moving equipment cableways image side view

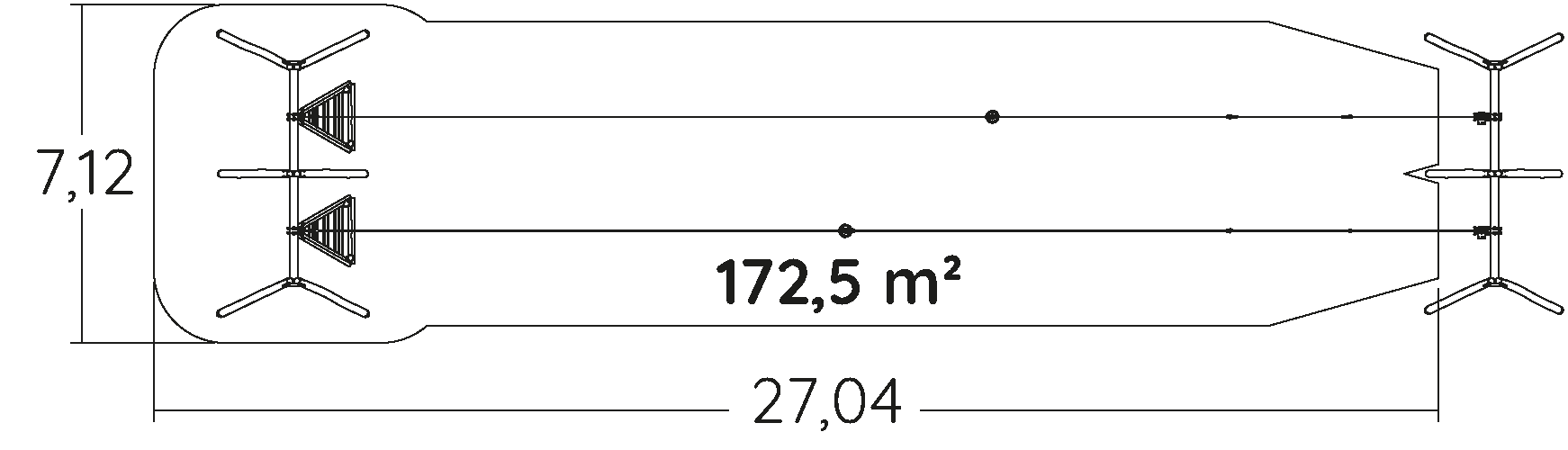

Double Cableway for level ground J522 playgrounds moving equipment cableways image view from above

Materials

The different posts (average diameter: 60 to 80mm / 120 to 140mm) are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally... rot proof and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

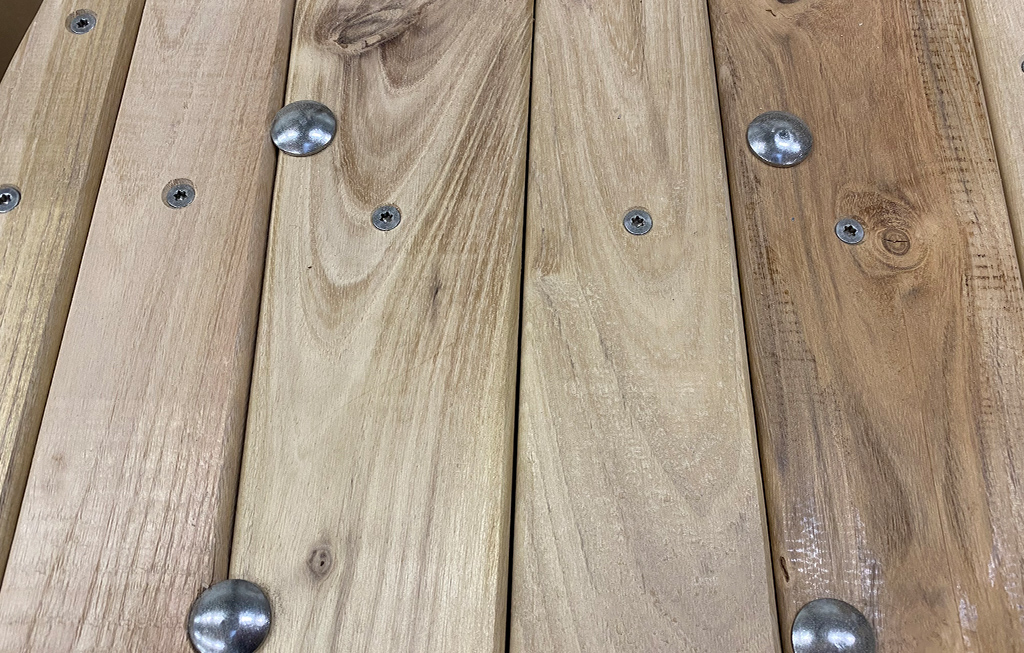

The platforms are made from a 27mm and 40mm thick sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not... require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The trolley is made of stainless steel ensuring its durability. The trolley wheels are made of polyamide, reducing noise levels during usage. The braking... mechanism of the pulley ensures that it rests in a stationary position when no force is applied. Read more

The correct tension of the 10mm diameter galvanized steel cable is easily maintained via a ratchet system.

The cableway seat is made of shock absorbing honeycomb rubber. The supporting chain is made from galvanised steel and covered with a protective plastic coating.
