Multiplay equipment with slides, elevated playhouse, and balancing trail - J5613

We have created the reference J5613 in our "Kanopé" range. This play equipment is accessible from 3 years. It can accommodate up to 40 users.

The size of the module is: 13.27 m length, 8.77 m width, 3.50 m. high. The free fall height (FFH) is 2.80 m.

Other finishes available

J5613-C®

22 play functions

Climbing x3

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Sliding x3

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x3

By playing together, children learn how to interact with other personalities and behaviors.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Balancing x2

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Climbing x3

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x3

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Thinking x1

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Specifications

Age range:	3+
Number of users:	40 users
FFH :	2.80 m
Size:	13.27 x 8.77 x 3.50 m

Equipment installation

Number of installers:	2
Installation time:	25:00:00
Concrete volume:	0.80 m3

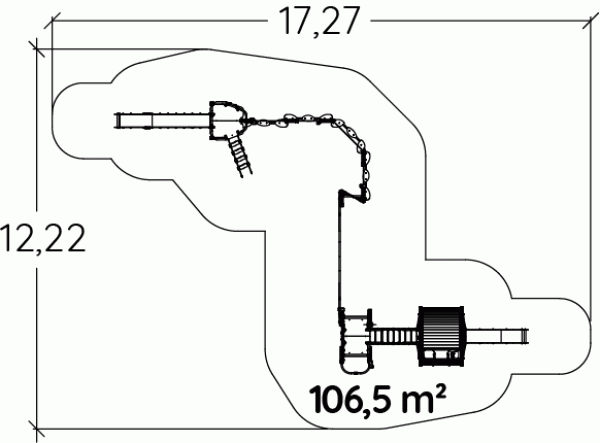

Surface:	106.50 m2
Total weight:	1058.30 kg
Weight of the heaviest element:	28.50 kg

Environmental Indicators

Repairability

9.43 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

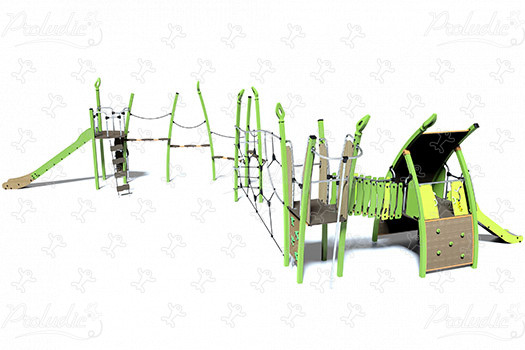

J5613 playgrounds multiplay equipment kanopé image 3d

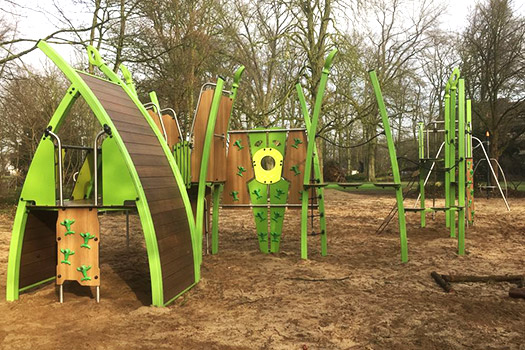

J5613 playgrounds multiplay equipment kanopé image photo

J5613 playgrounds multiplay equipment kanopé image side view

J5613 playgrounds multiplay equipment kanopé image view from above

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The blades are made of wood-plastic composites (WPCs), 95% of which is recycled plastic material (HDPE) and post-industrial wood sawdust. They are covered with a... thin decorative brown wooden layer, which makes the material resistant and waterproof, and ensures the colours do not alter over time. The planks do not require specific maintenance. Read more

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.

The net fittings are made of polyamide and are used to link three cords together.

The caps are made of rotary moulded polyethylene.

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant.

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant. They give the units their strength and help to protect them... from vandalism. Read more
