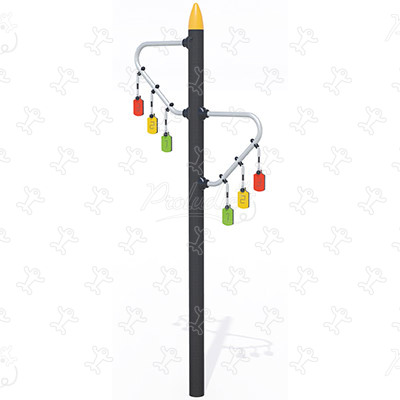

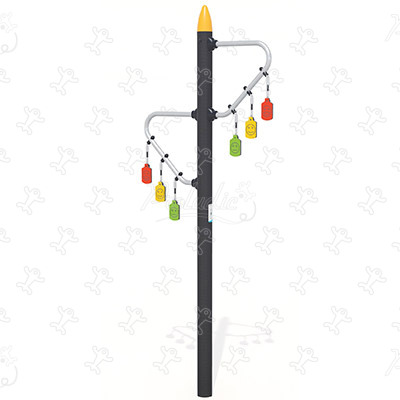

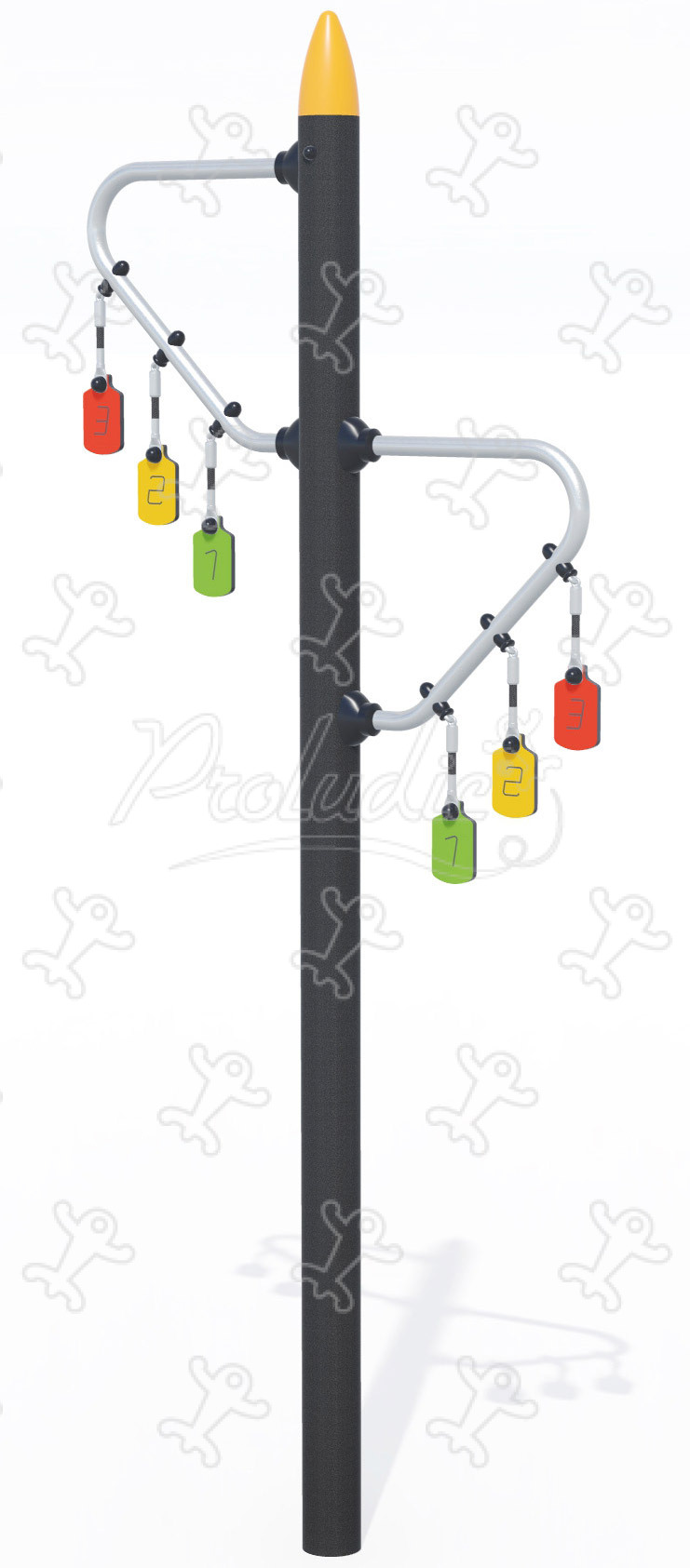

Inclusive vertical jump activity - Ninja trail equipment for children - J5928®

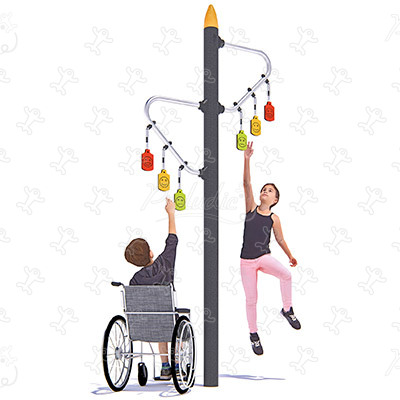

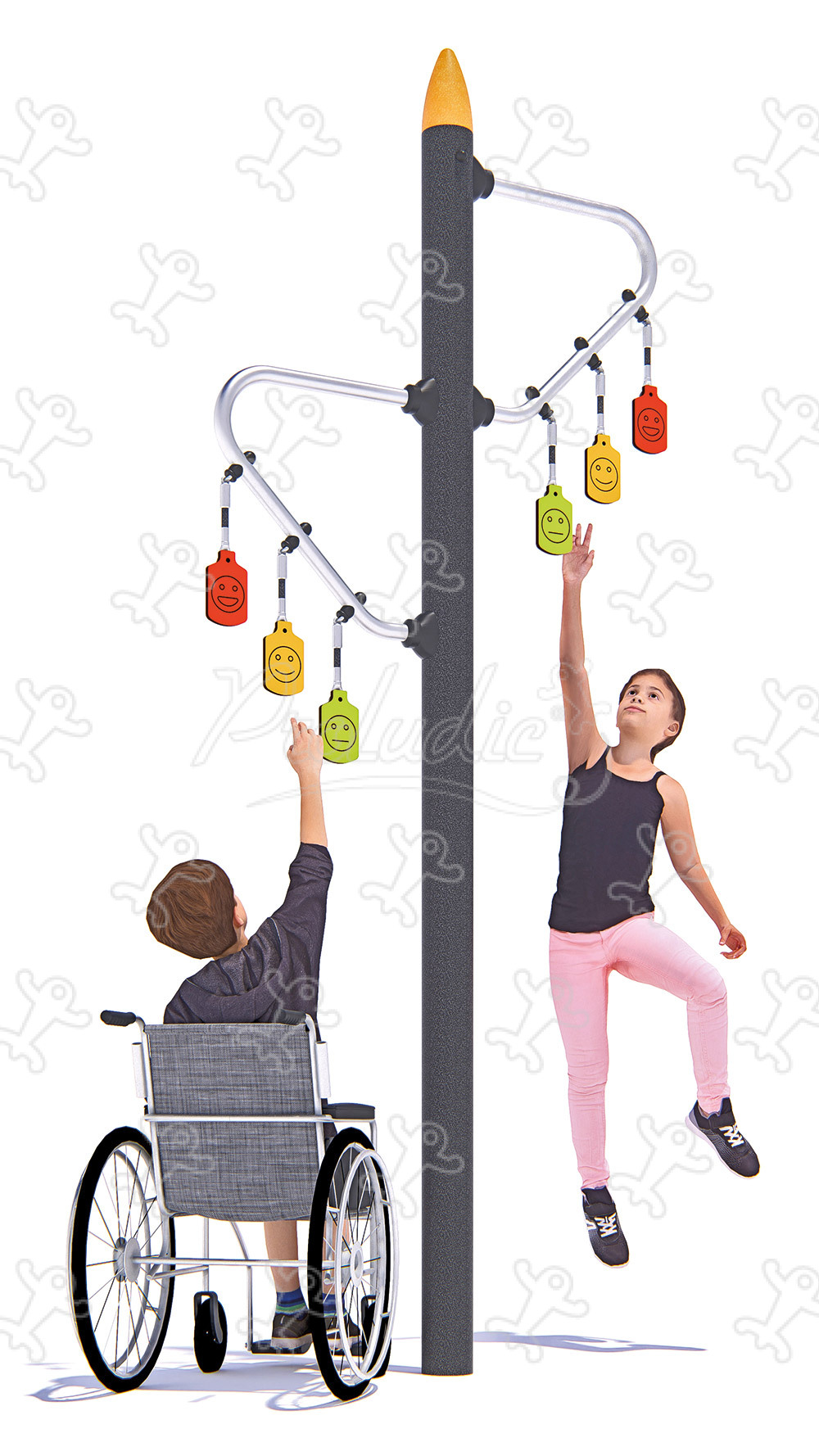

We have created the reference J5928® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 2 users.

The size of the module is: 1.29 m length, 0.12 m width, 3.21 m. high. The free fall height (FFH) is 0.60 m.

In short

Sports Equation Sports Equation

Sports Equation

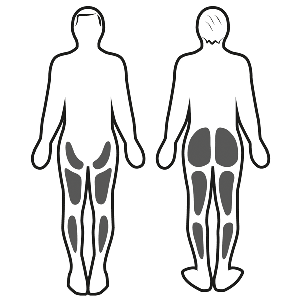

Muscle stimulation

Muscle stimulation

6 sports activities

jumping
Jumping x6

Specifications

Minimum size: > 1.40 m
Number of users: 2 users
FFH : 0.60 m

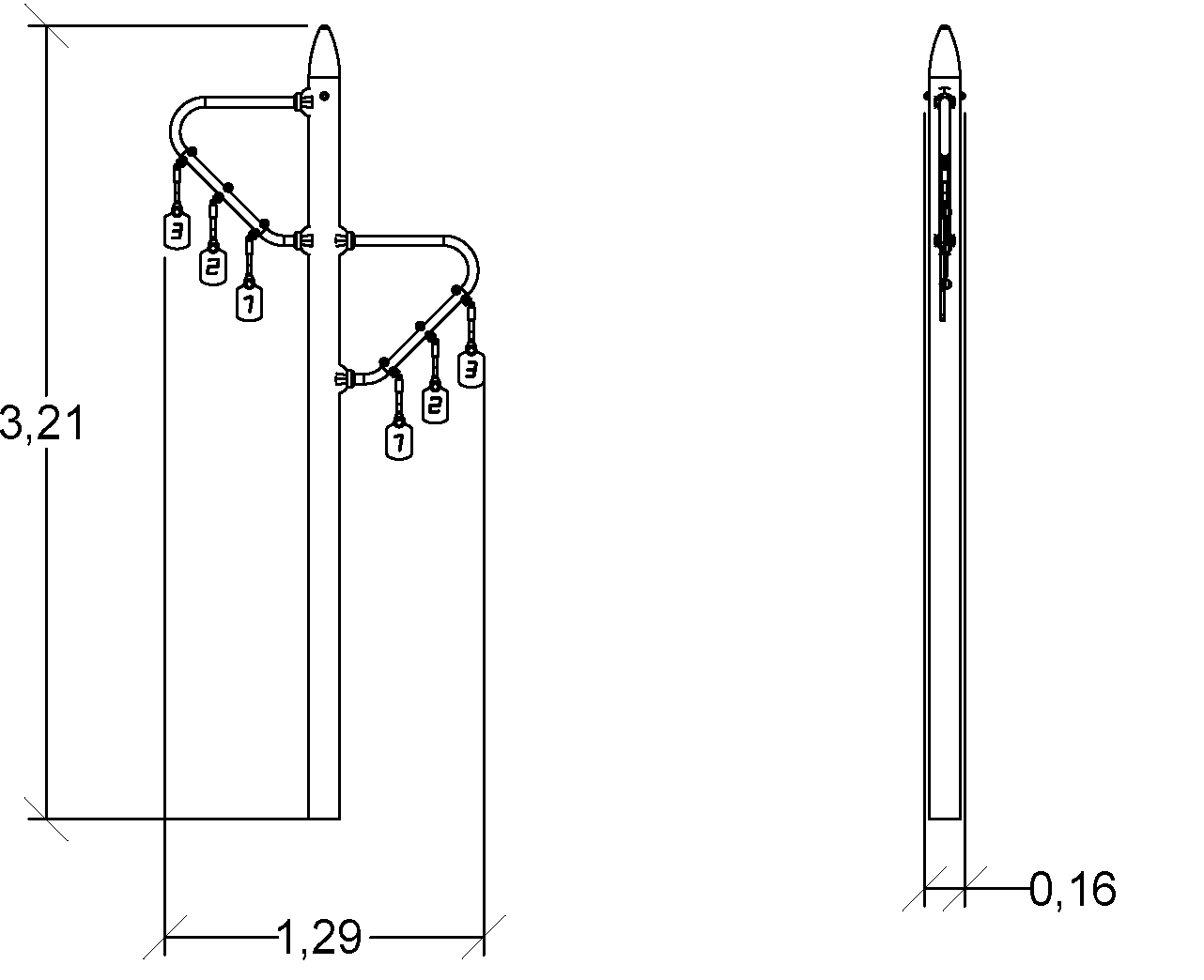

Size: 1.29 x 0.12 x 3.21 m

Equipment installation

Number of installers: 2
Installation time: 01:00:00
Concrete volume: 0.05 m3

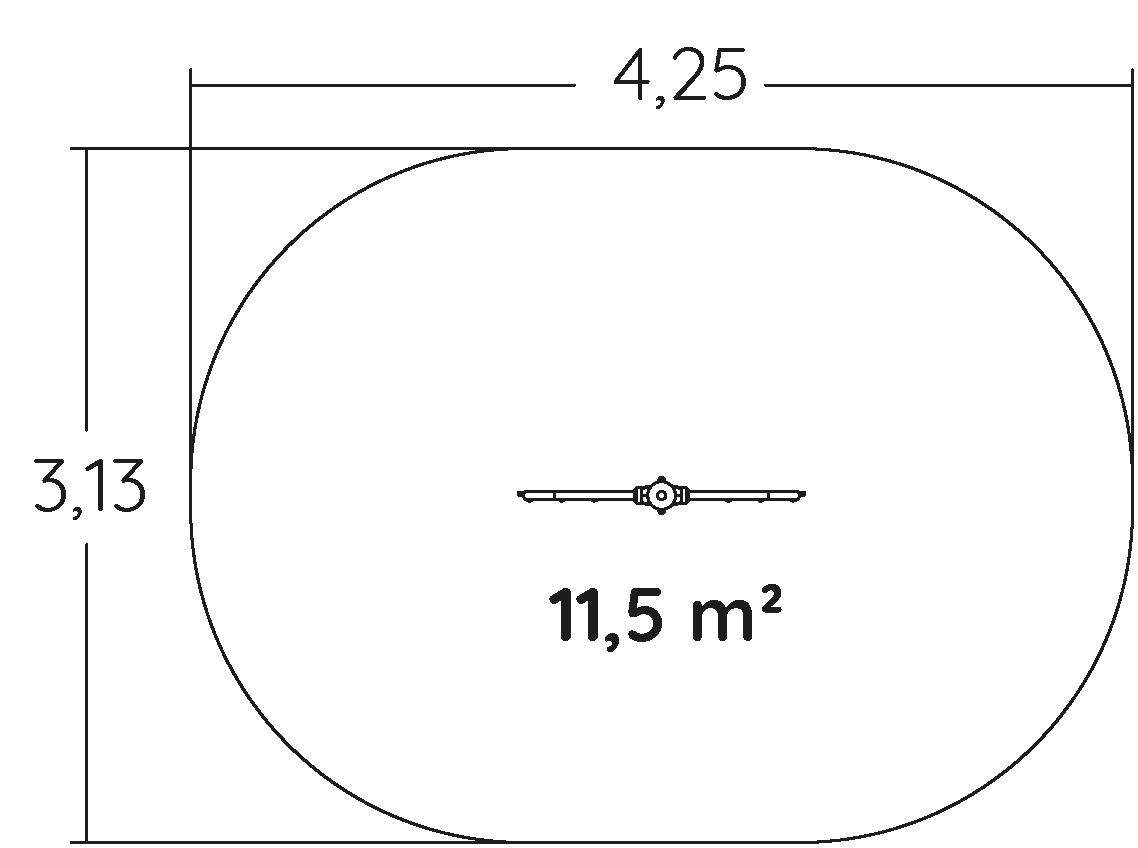

Surface: 11.50 m2
Total weight: 44.71 kg
Weight of the heaviest element: 27.28 kg

Environmental Indicators

Repairability

Repairability

9.17 /10

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

Materials

The 125mm diameter post

The 125mm diameter post is made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The cap is... made of rotary moulded polyethylene. Read more

The coloured panels

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
