Inclusive slopes - Ninja trail equipment for children - J5929®

We have created the reference J5929® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 2 users.

The size of the module is: 2.34 m length, 2.30 m width, 0.68 m. high. The free fall height (FFH) is 0.60 m.

In short

Sports Equation

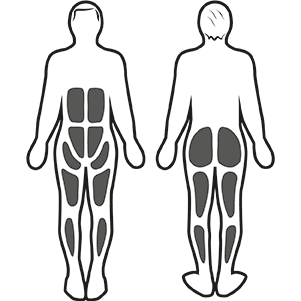

Muscle stimulation

2 sports activities

Getting across x1

Climbing x1

Specifications

Minimum size:	> 1.40 m
Number of users:	2 users
FFH :	0.60 m
Size:	2.34 x 2.30 x 0.68 m

Equipment installation

Number of installers:	2
Installation time:	02:00:00
Concrete volume:	0.19 m3
Surface:	24.50 m2
Total weight:	153.16 kg
Weight of the heaviest element:	18.11 kg

Environmental Indicators

Repairability

9.17 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

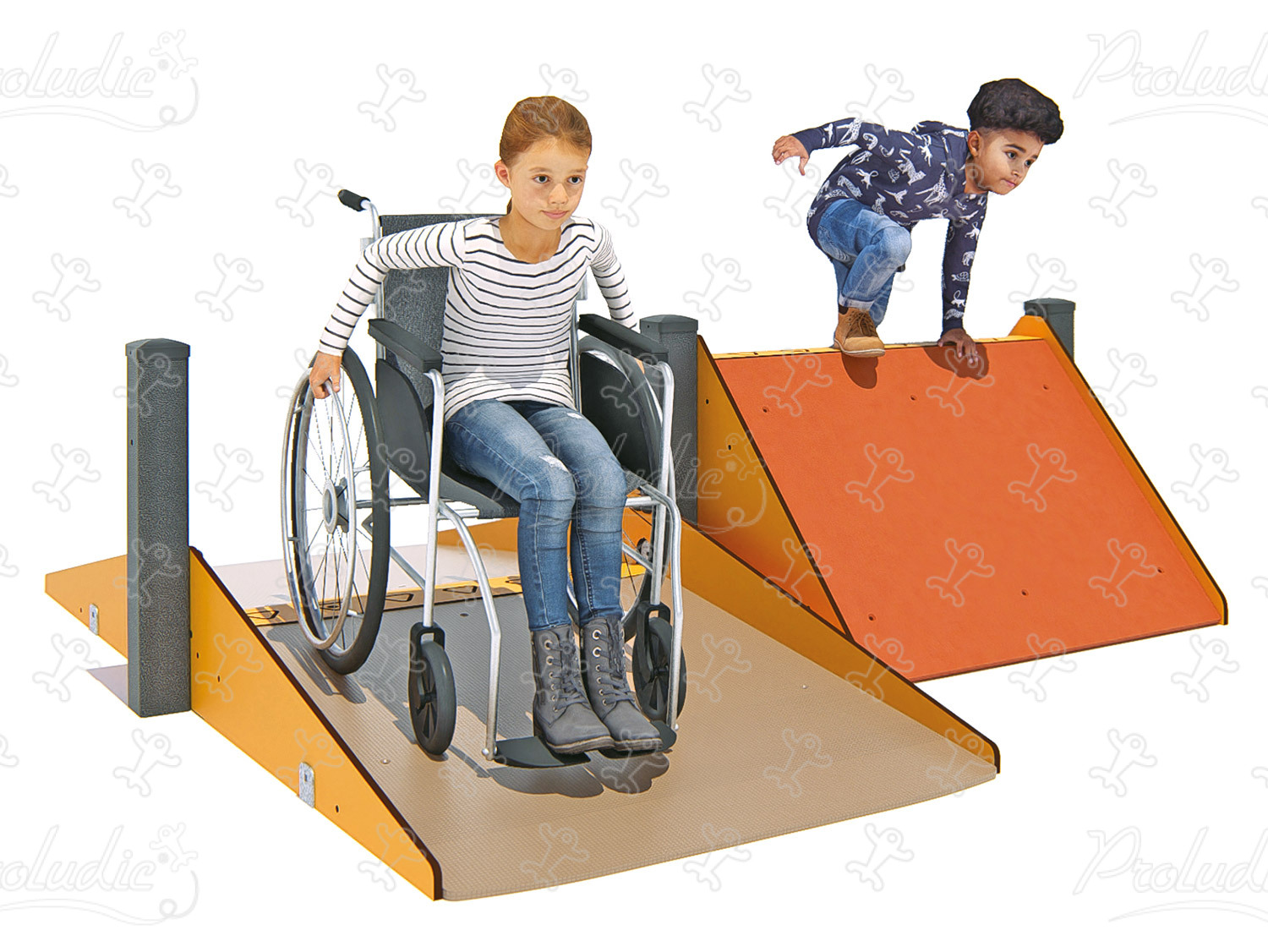

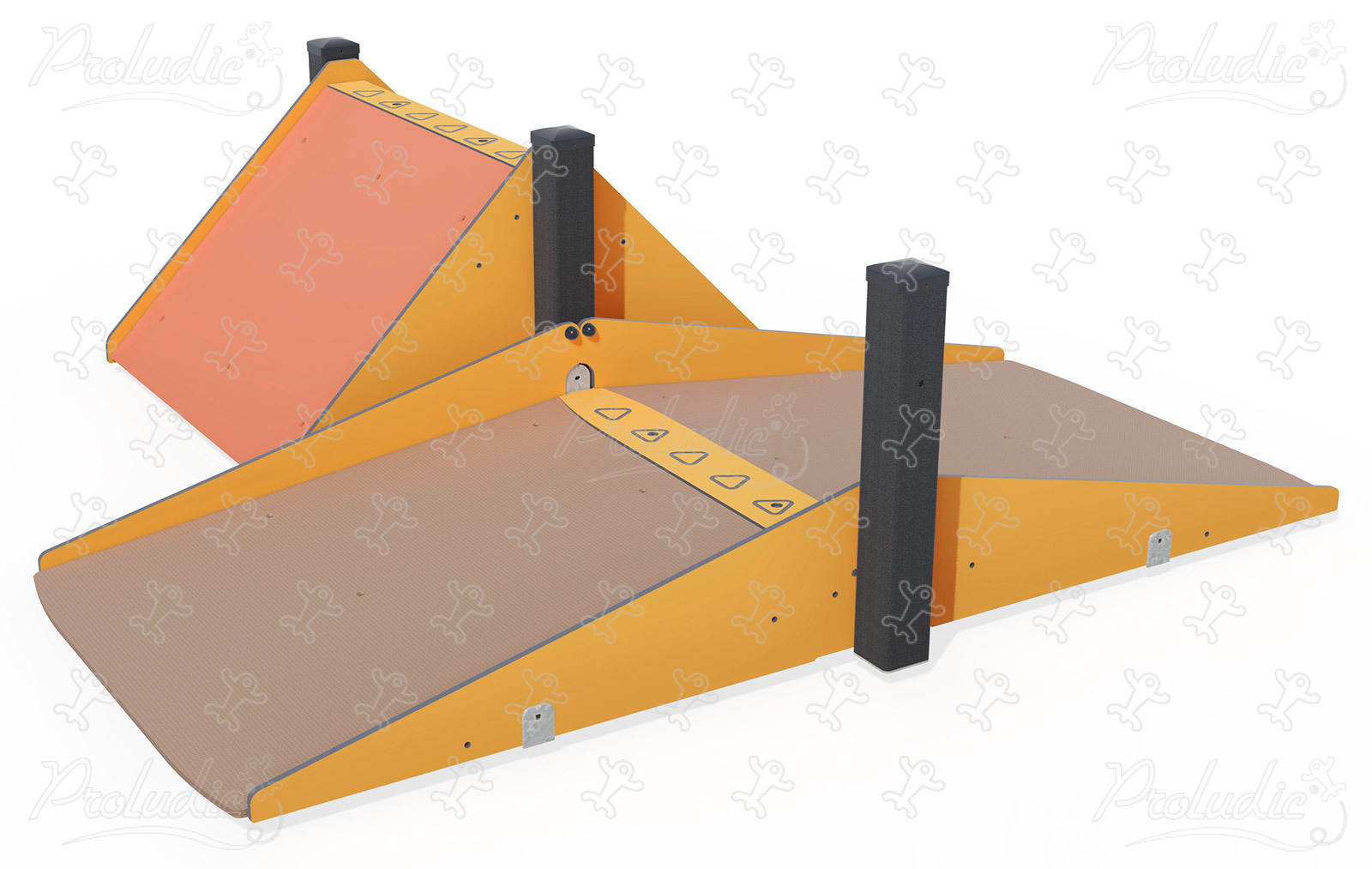

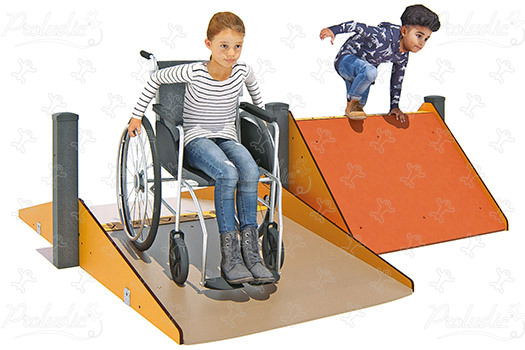

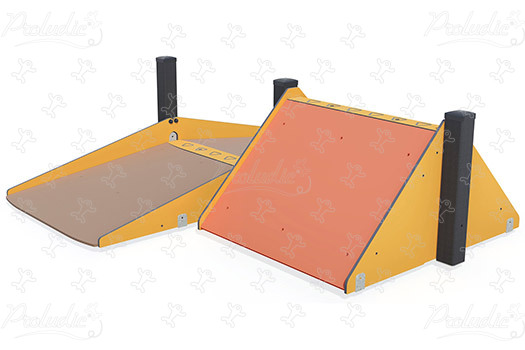

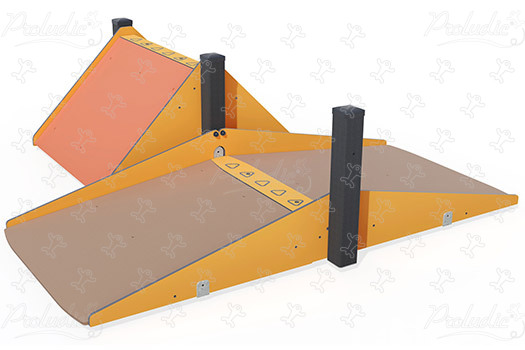

Inclusive Slopes J5929® playgrounds acti’fun acti’ninja image 3d

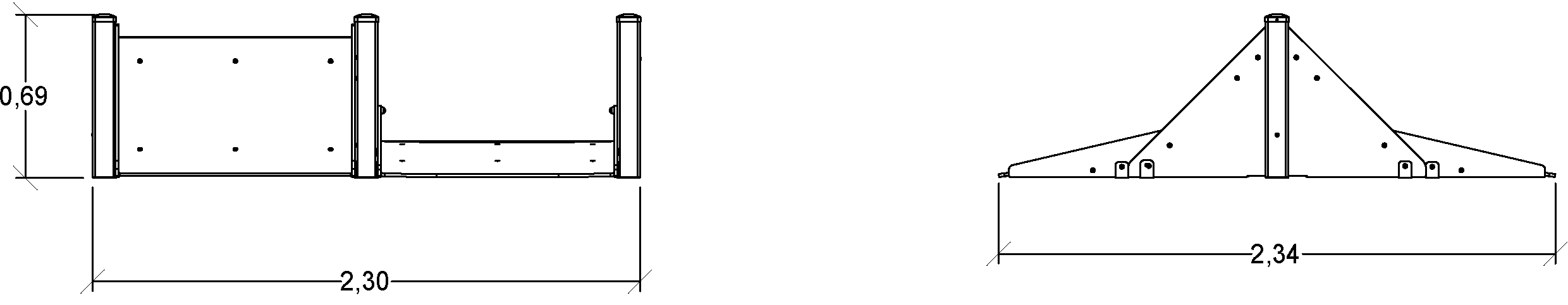

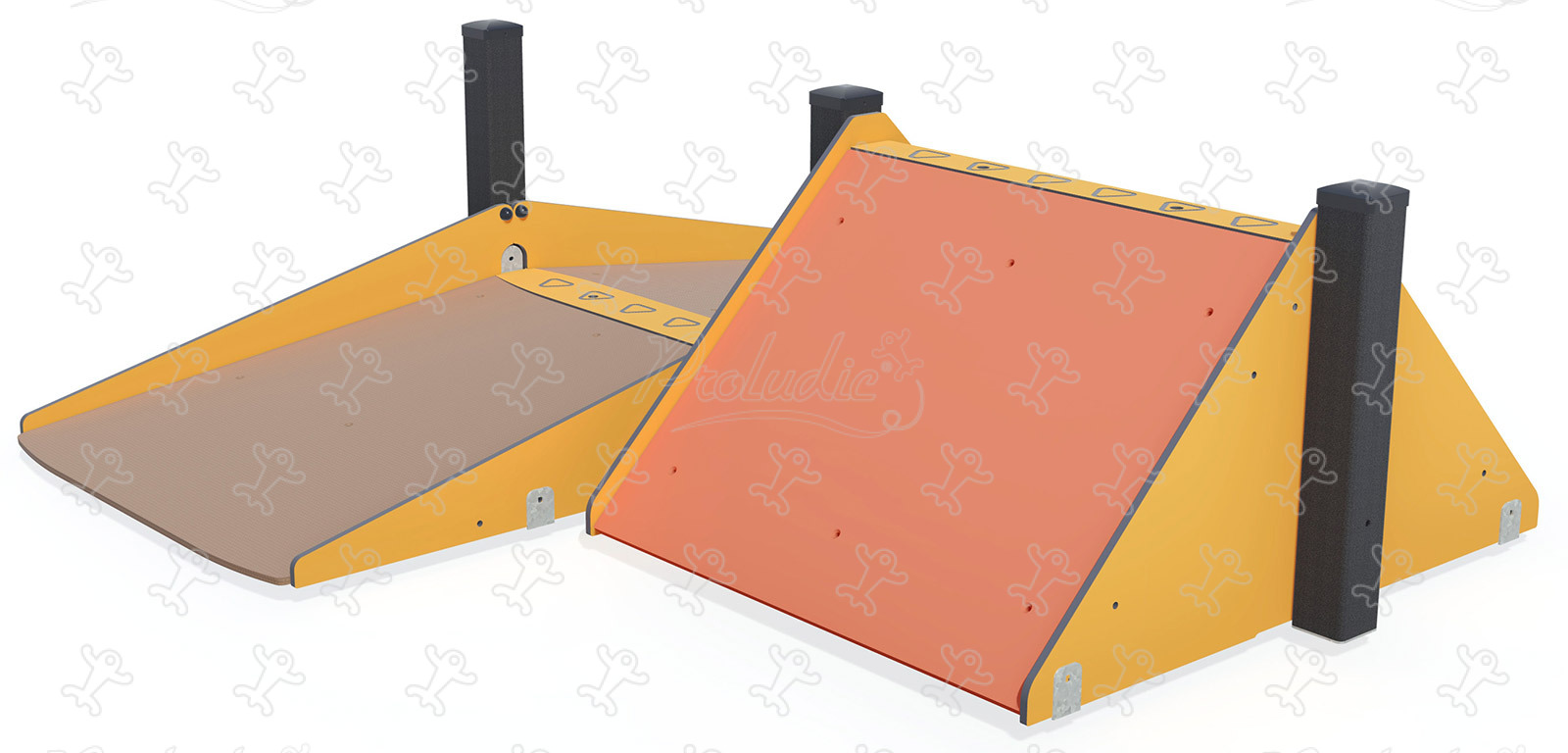

Inclusive Slopes J5929® playgrounds acti’fun acti’ninja image side view

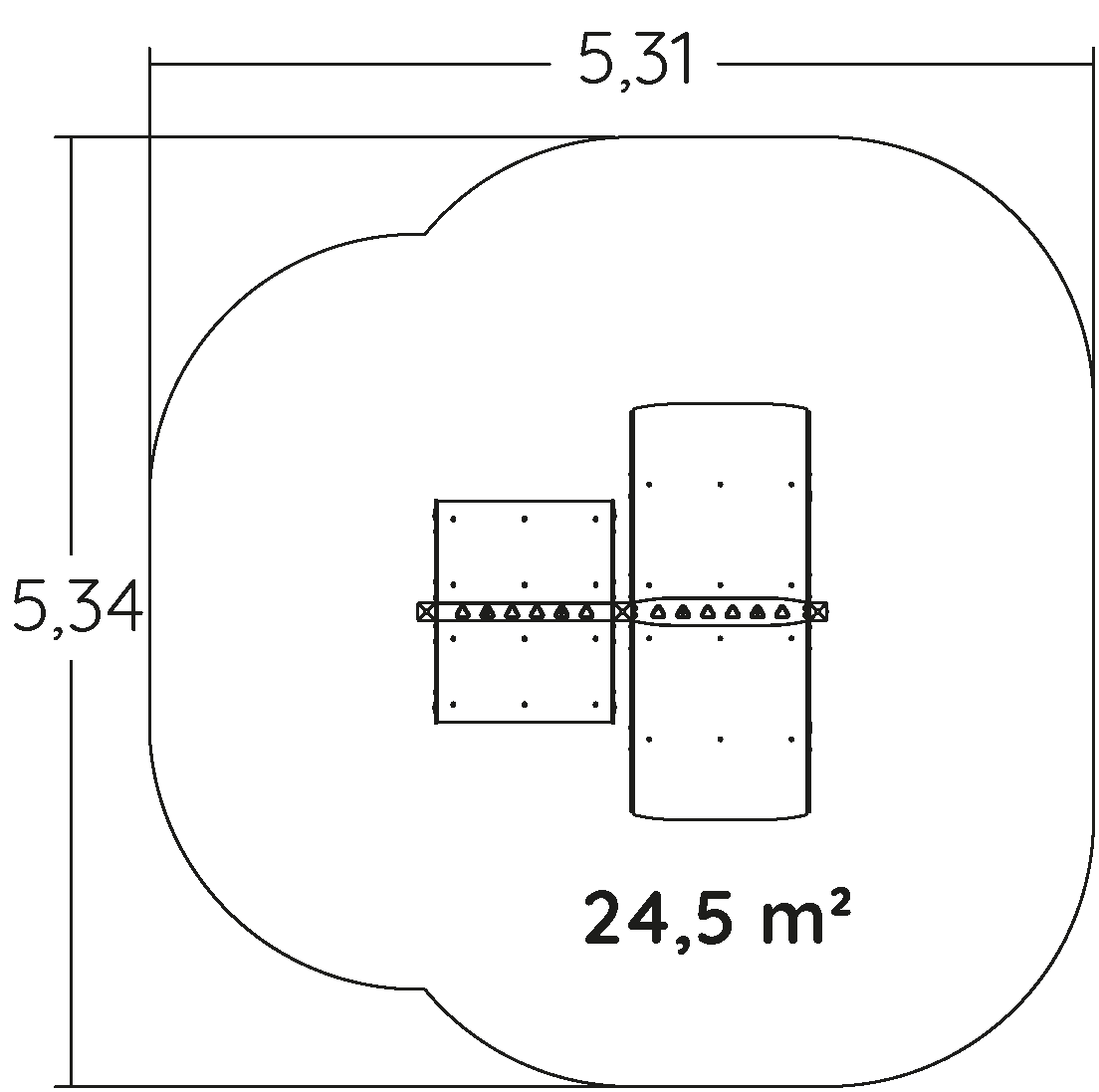

Inclusive Slopes J5929® playgrounds acti’fun acti’ninja image view from above

Materials

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

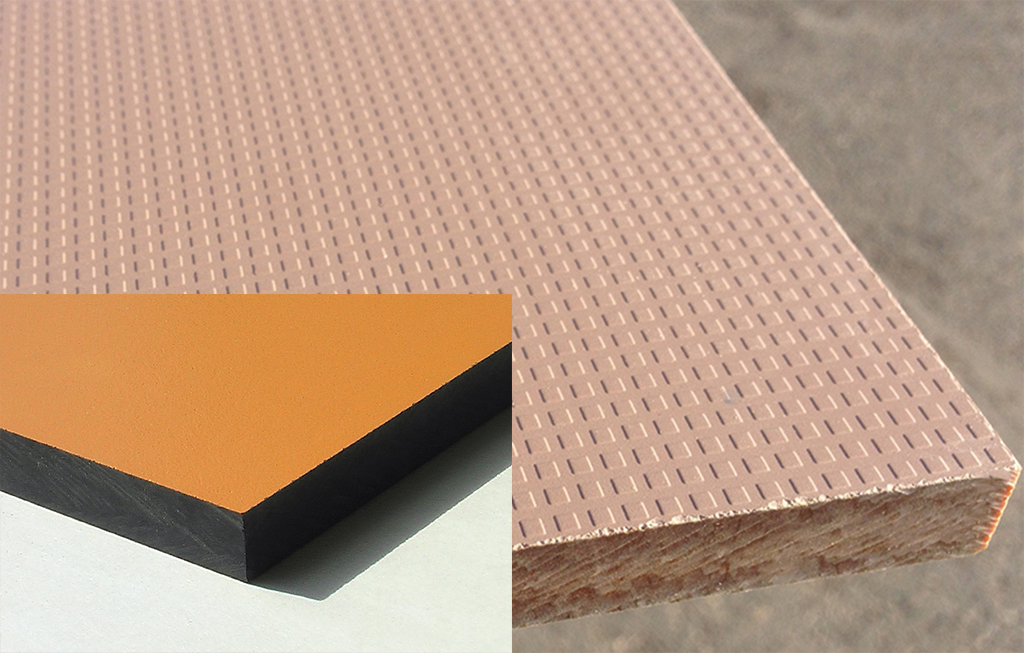

The inclusive ramp is made from a 12.5mm thick textured and non-slip compact material (brown HPL) and from a 13mm thick compact material (orange HPL). Robust in... construction, HPL has excellent weather and vandal resistance properties. Read more

The sloping sides are made from a 18mm thick, non-slip polyethylene material.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
