Proludic UK

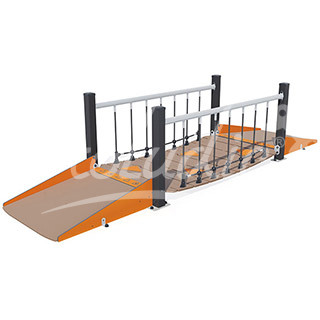

Inclusive Wobbly Bridge
J5933®
We have created the reference J5933® in our "ACTI’Ninja" range. This play equipment is accessible from 1.40 m. It can accommodate up to 3 users.

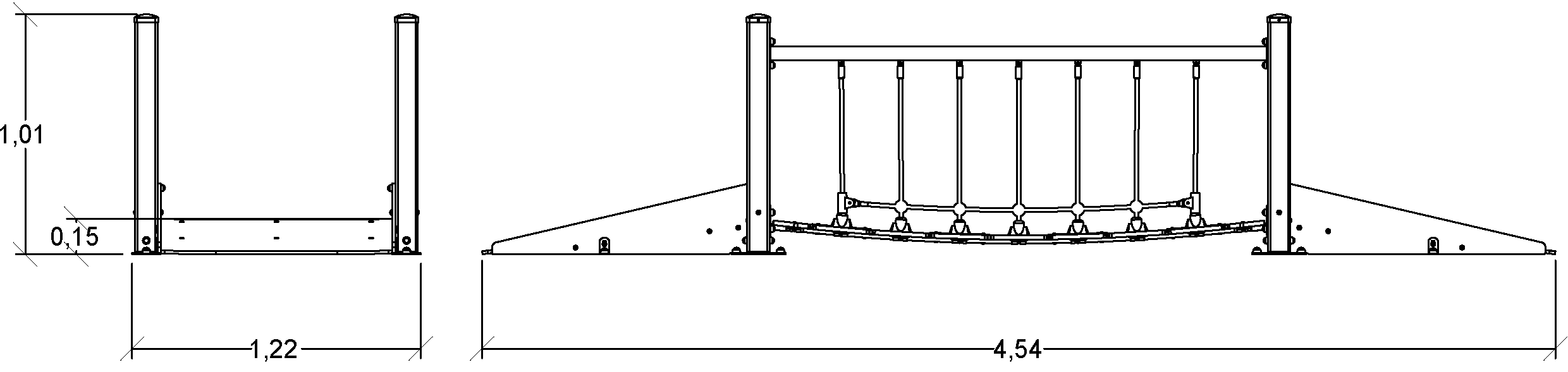

The size of the module is: 4.54 m length, 1.20 m width, 1.01 m. high. The free fall height (FFH) is 0.60 m.
Sports Equation
Muscle stimulation
| Minimum size: | > 1.40 m |
| Number of users: | 3 users |
| FFH : | 0.60 m |
| Size: | 4.54 x 1.20 x 1.01 m |
| Number of installers: | 2 |
| Installation time: | 01:00:00 |
| Concrete volume: | 0.22 m3 |

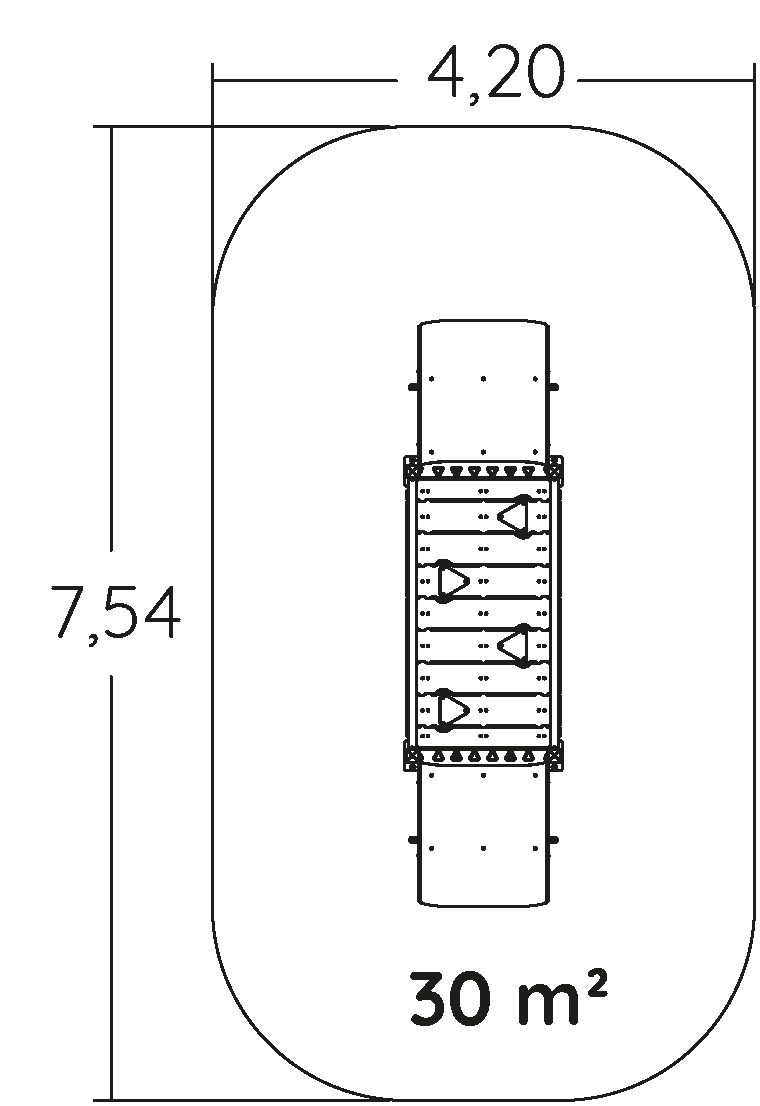

| Surface: | 30.00 m2 |
| Total weight: | 183.47 kg |
| Weight of the heaviest element: | 60.32 kg |
Repairability
9.17 /10
The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.
The tubes are made of 60mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

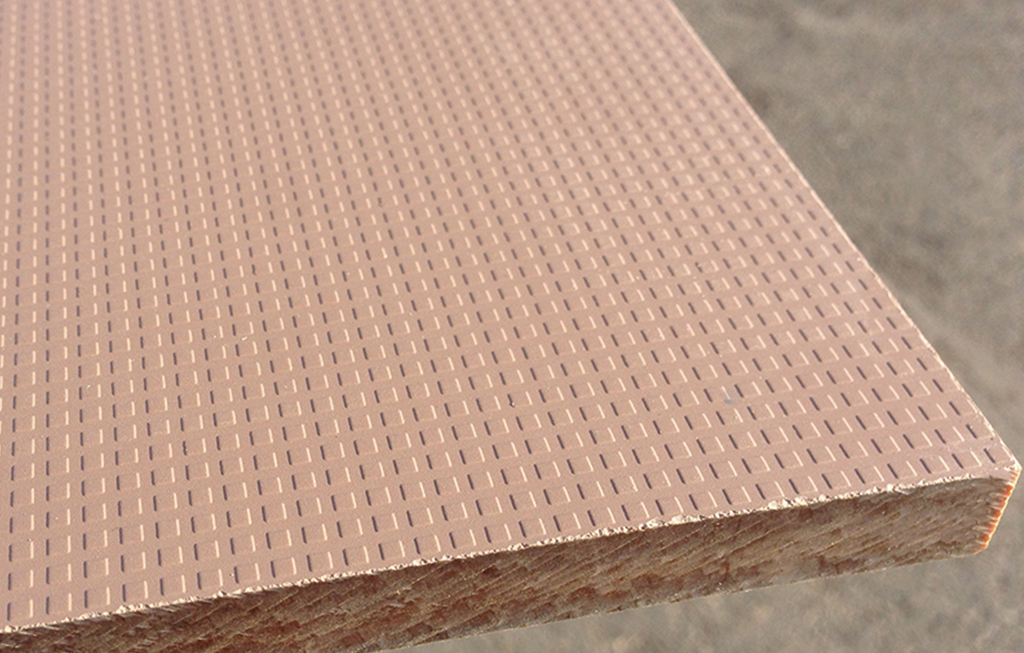

The gangway floor and the ramp are made from a 12.5mm thick textured and non-slip compact material (HPL).
The 16mm diameter rope is made of galvanised steel cable covered with polyester.
The cables are linked together and held in place by injected polyamide spheres.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
Search
Search for a product, a reference...
Added to quote
Inclusive Wobbly Bridge
| Minimum size: | > 1.40 m |
| Number of users: | 3 users |
| FFH : | 0.60 m |
| Size: | 4.54 x 1.20 x 1.01 m |
| Physical inclusion: | 3/3 |
| Sensory inclusion: | 2/3 |
| Cognitive inclusion: | 1/3 |
