Climbing structure for children with ropes - J6101®

We have created the reference J6101® in our "Climbing equipment" range. This play equipment is accessible from 6 years. It can accommodate up to 35 users.

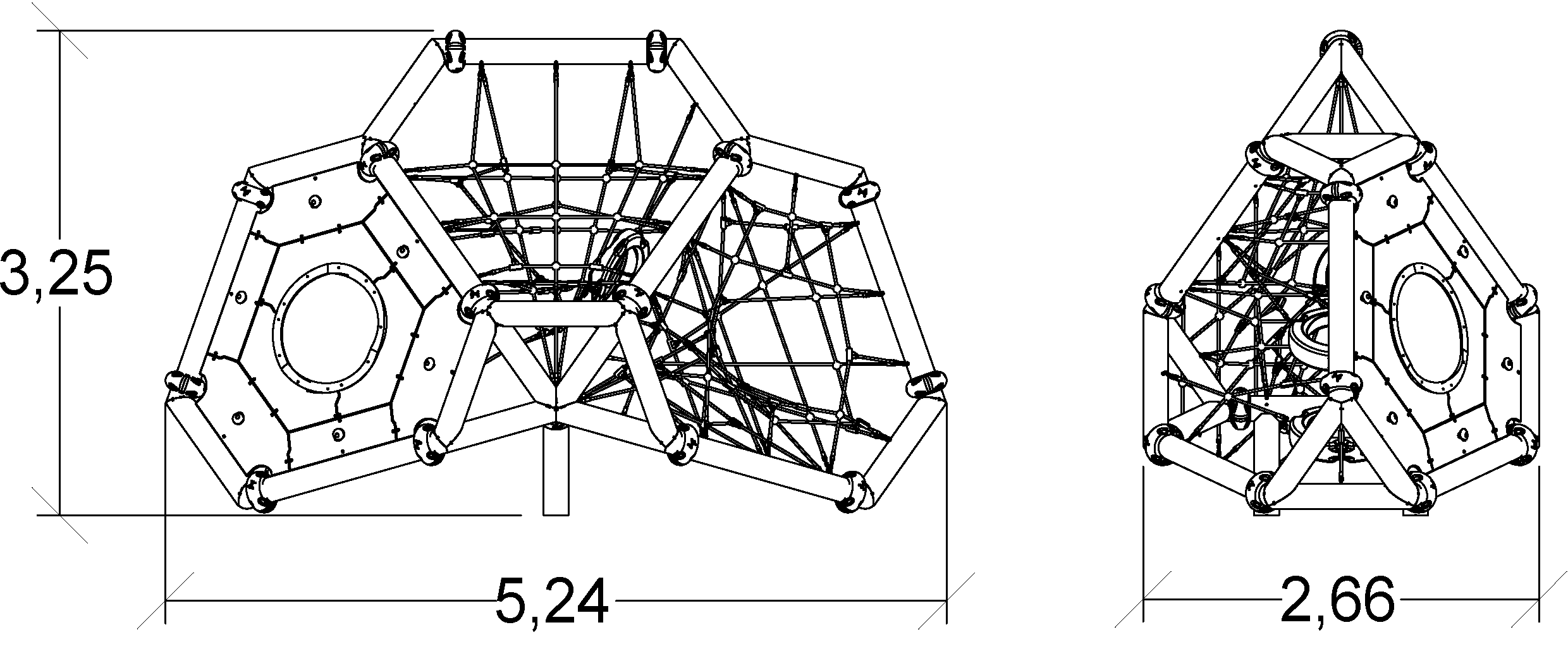

The size of the module is: 5.24 m length, 2.66 m width, 3.25 m. high. The free fall height (FFH) is 2.50 m.

Other themes

J6101-C®

23 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Crawling x5

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Visual stimulation x1

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x12

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	6+
Number of users:	35 users
FFH :	2.50 m
Size:	5.24 x 2.66 x 3.25 m

Equipment installation

Number of installers:	2

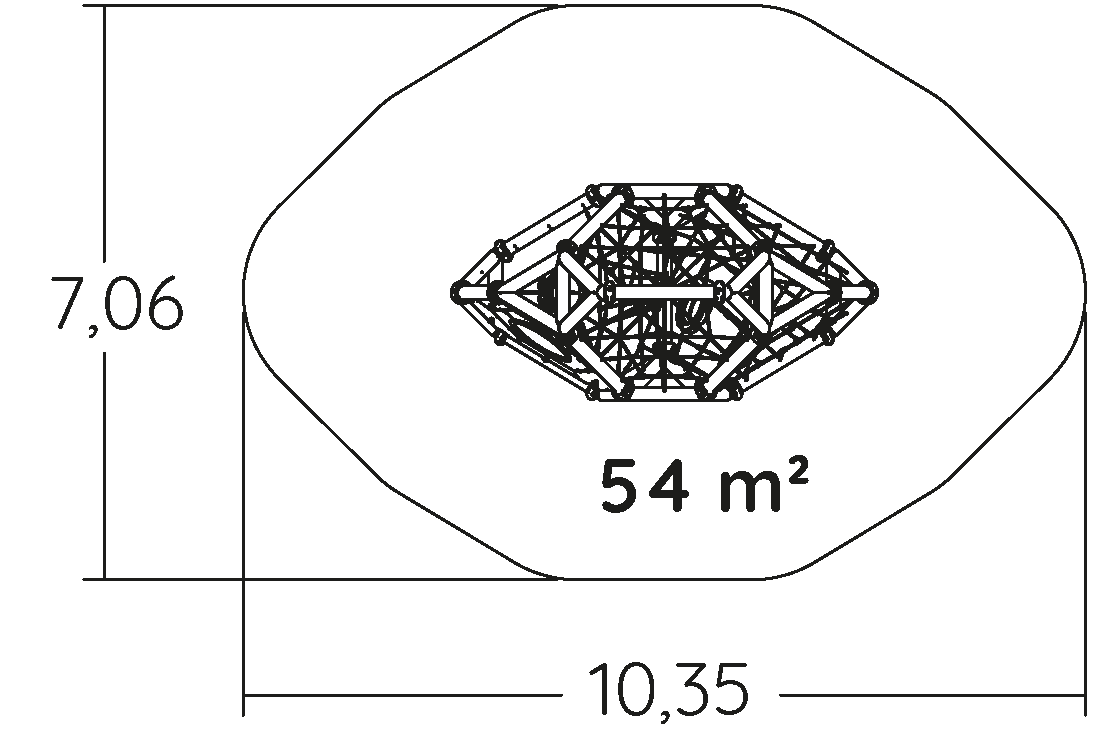

Surface:	54.00 m2
Total weight:	897.99 kg
Weight of the heaviest element:	75.73 kg

Downloads

Technical fact sheet

Materials sheet

JPEG Image

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

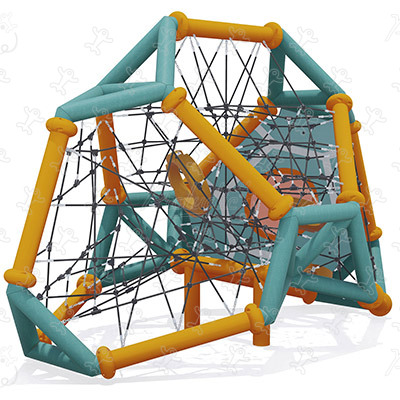

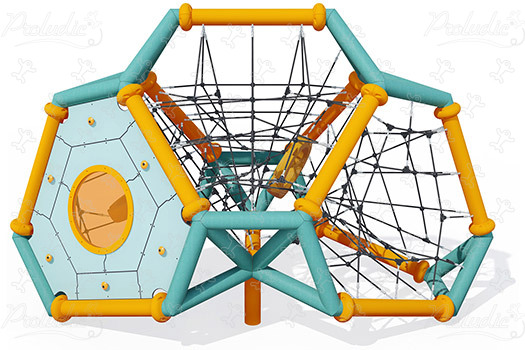

Kairn J6101® playgrounds climbing & balancing play equipment climbing equipment image 3d

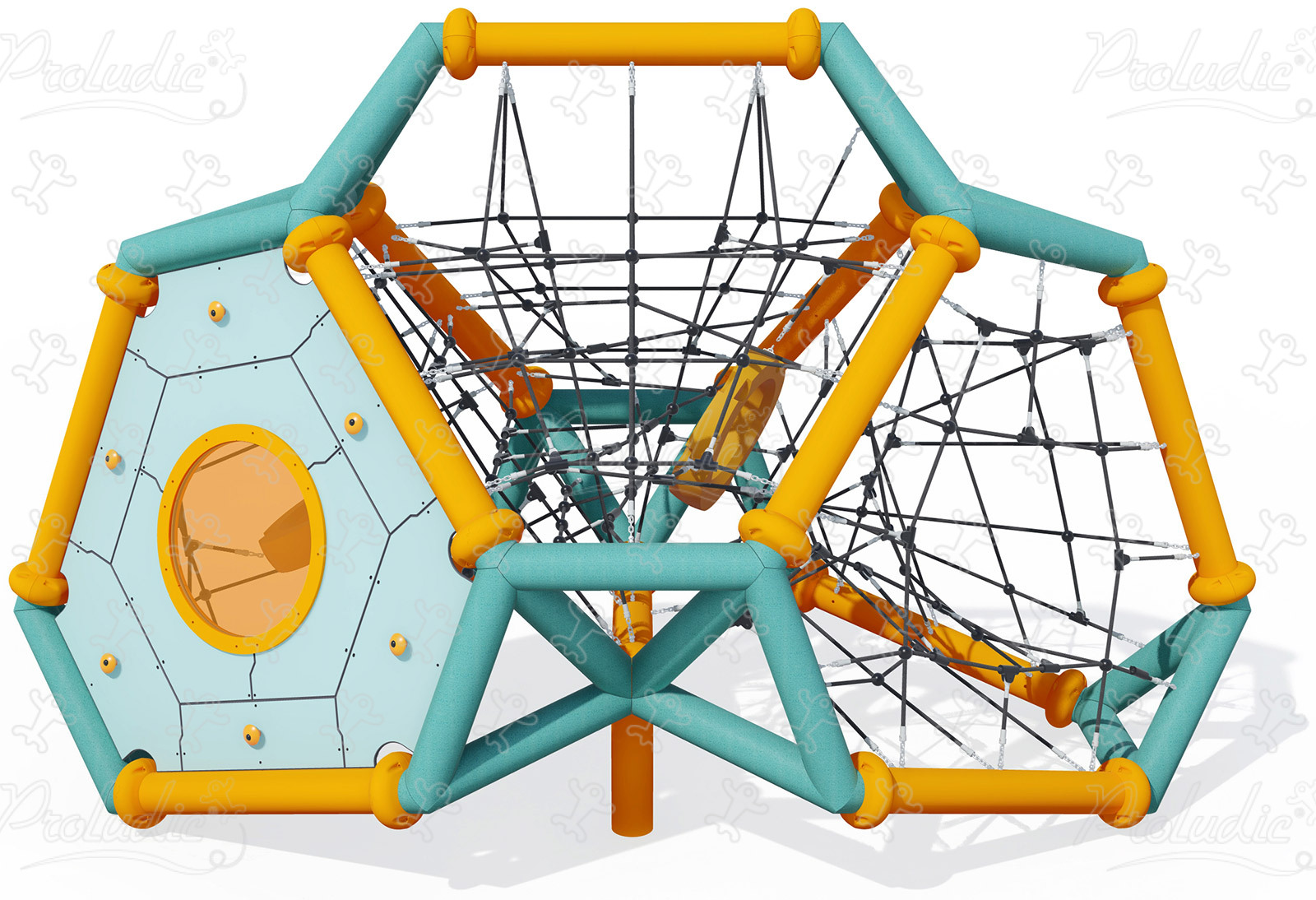

Kairn J6101® playgrounds climbing & balancing play equipment climbing equipment image side view

Kairn J6101® playgrounds climbing & balancing play equipment climbing equipment image view from above

Materials

The 168,3mm diameter posts are made of painted galvanised steel.

The fixing collars are made of regenerated PA6 polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
