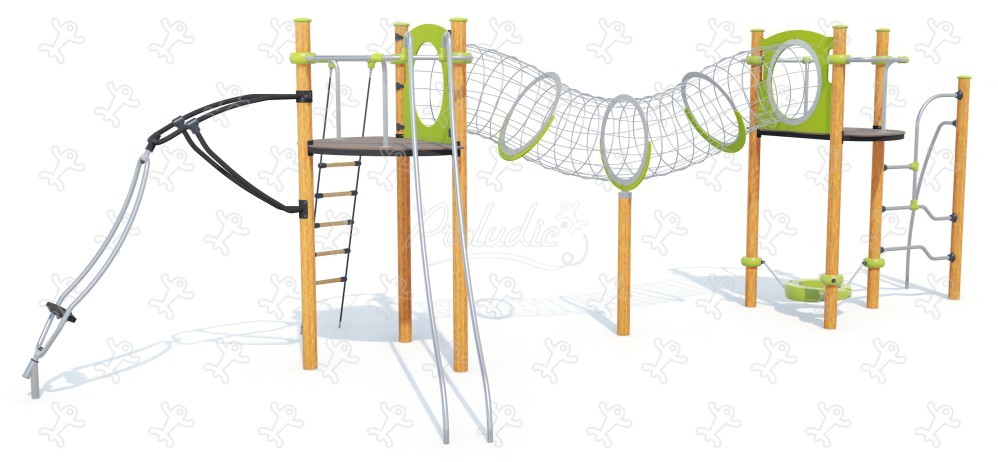

We have created the reference J2579 in our "Ixo" range. This play equipment is accessible from 6 years. It can accommodate up to 24 users.
The size of the module is: 10.00 m length, 4.26 m width, 3.03 m. high. The free fall height (FFH) is 1.95 m.
Other finishes available
14 play functions
Sliding
x1
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
Meeting
x2
By playing together, children learn how to interact with other personalities and behaviors.
Resting
x1
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
Hanging
x1
This fun activity allows you to explore a new way of playing, of managing space and the void below.
Crawling
x1
Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.
Swinging
x1
To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.
Balancing
x2
Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.
Rotating
x1
Turning allows the child to experience thrills, to experience speed and to feel the exhilaration of their head and body turning uncontrollably.
Climbing
x2
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
Getting across
x2
Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.
Specifications
| Age range: | 6+ |
| Number of users: | 24 users |
| FFH : | 1.95 m |
| Size: | 10.00 x 4.26 x 3.03 m |
Equipment installation
| Number of installers: | 2 |
| Installation time: | 07:00:00 |
| Concrete volume: | 1.00 m3 |
| Surface: | 74.00 m2 |
| Total weight: | 626.15 kg |
| Weight of the heaviest element: | 24.00 kg |
Environmental Indicators
Repairability
9.48 /10
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Materials
The 125mm round posts are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The caps are made of injection moulded polyamide. Read more
Injection moulded polyamide fixings connect the posts with the platforms and the various play features.
The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by lacquered galvanised steel supports,... located on the underside of the platforms. Read more
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
The rubber ring is a monobloc element made of polyethylene with an outside diameter of 70cm and inside diameter of 45cm.
The tunnel (L: 4.05m - Ø 0.78m) is made of steel mesh netting, Ø 6mm, with Rilsan plastic covering.
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The seat is made of shock absorbing moulded honeycomb rubber.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
