J2581 - Playgrounds - Moving equipment

In short

Movement

We have created the reference J2581 in our "Cableways" range. This play equipment is accessible from 6 years. It can accommodate up to 1 user.

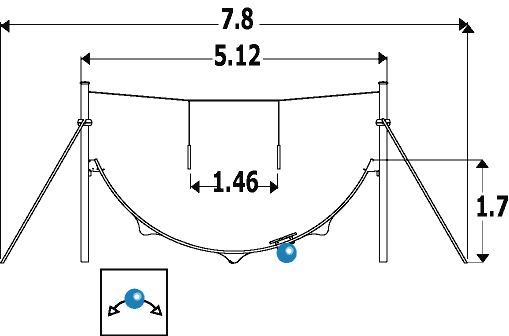

The size of the module is: 7.80 m length, 3.70 m width, 3.00 m. high. The free fall height (FFH) is 1.50 m.

Other finishes available

J2581-M

5 play functions

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Hanging x1

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Swinging x1

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Specifications

Age range:	6+
Number of users:	1 user
FFH :	1.50 m
Size:	7.80 x 3.70 x 3.00 m

Equipment installation

Number of installers:	2
Installation time:	08:00:00
Concrete volume:	0.23 m3
Surface:	23.00 m2
Total weight:	156.96 kg
Weight of the heaviest element:	46.70 kg

Environmental Indicators

Repairability

9.06 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Materials

The 125mm round posts are made of laminated timber, which have not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The posts are protected from wear and tear caused by fungi and insects. The caps are made of injection moulded polyamide. Read more

The fixing elements are made of injection moulded polyamide.

The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

The one-piece rail is made of stainless steel. The limit stops located at the ends of the rail set the maximum range of the movement.

The skateboard is made with a non-slip rubber overmould. The stainless steel trolley is fitted with a sealed ball bearing system that ensures fluid, regular... movement. Read more
