Green play panel for outdoor playgrounds - J3442

We have created the reference J3442 in our "Fun panels & Sound and musical games" range. This play equipment is accessible from 1 year. It can accommodate up to 2 users.

The size of the module is: 1.34 m length, 0.20 m width, 1.10 m. high. The free fall height (FFH) is 0.60 m.

Standard Product

Complete documentation, standard lead times, TÜV certification issued.

8 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x5

A great exercise for developing motor skills and abilities in young children while having fun.

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Specifications

Age range:	1+
Number of users:	2 users
FFH :	0.60 m
Size:	1.34 x 0.20 x 1.10 m

Equipment installation

Number of installers:	2
Installation time:	01:00:00
Concrete volume:	0.13 m3

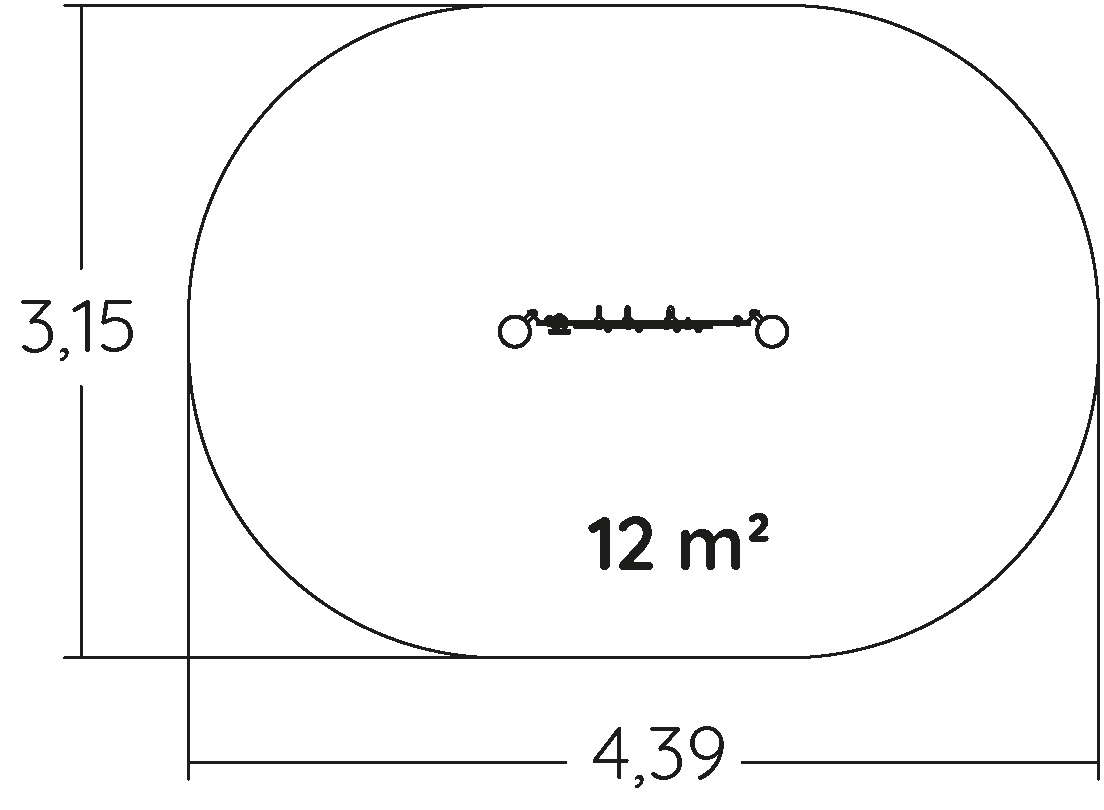

Surface:	12.50 m2
Total weight:	58.14 kg
Weight of the heaviest element:	19.80 kg

Environmental Indicators

Repairability

9.57 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

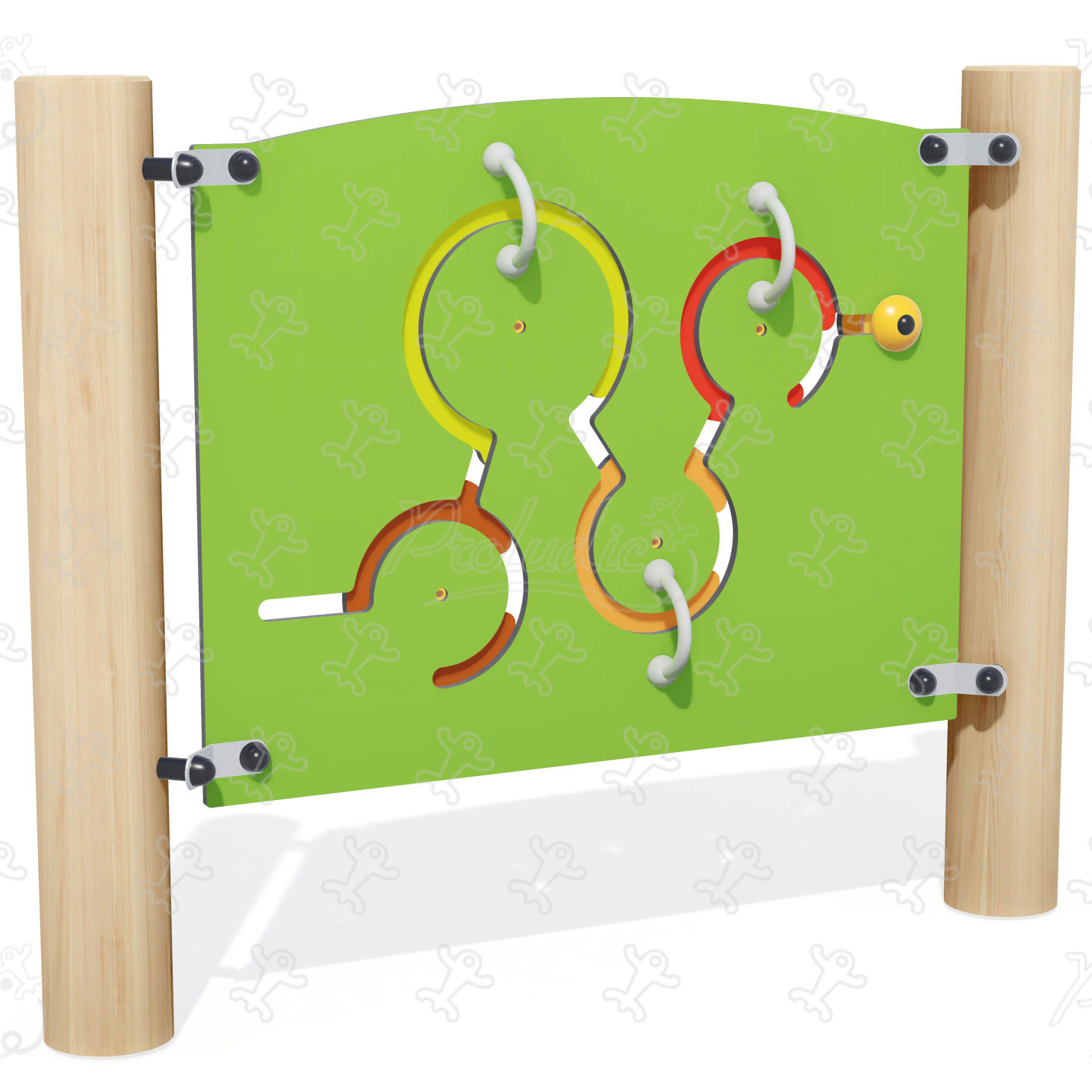

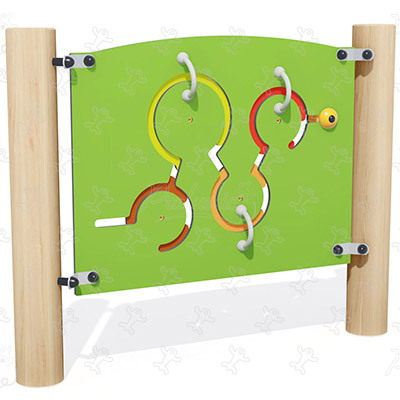

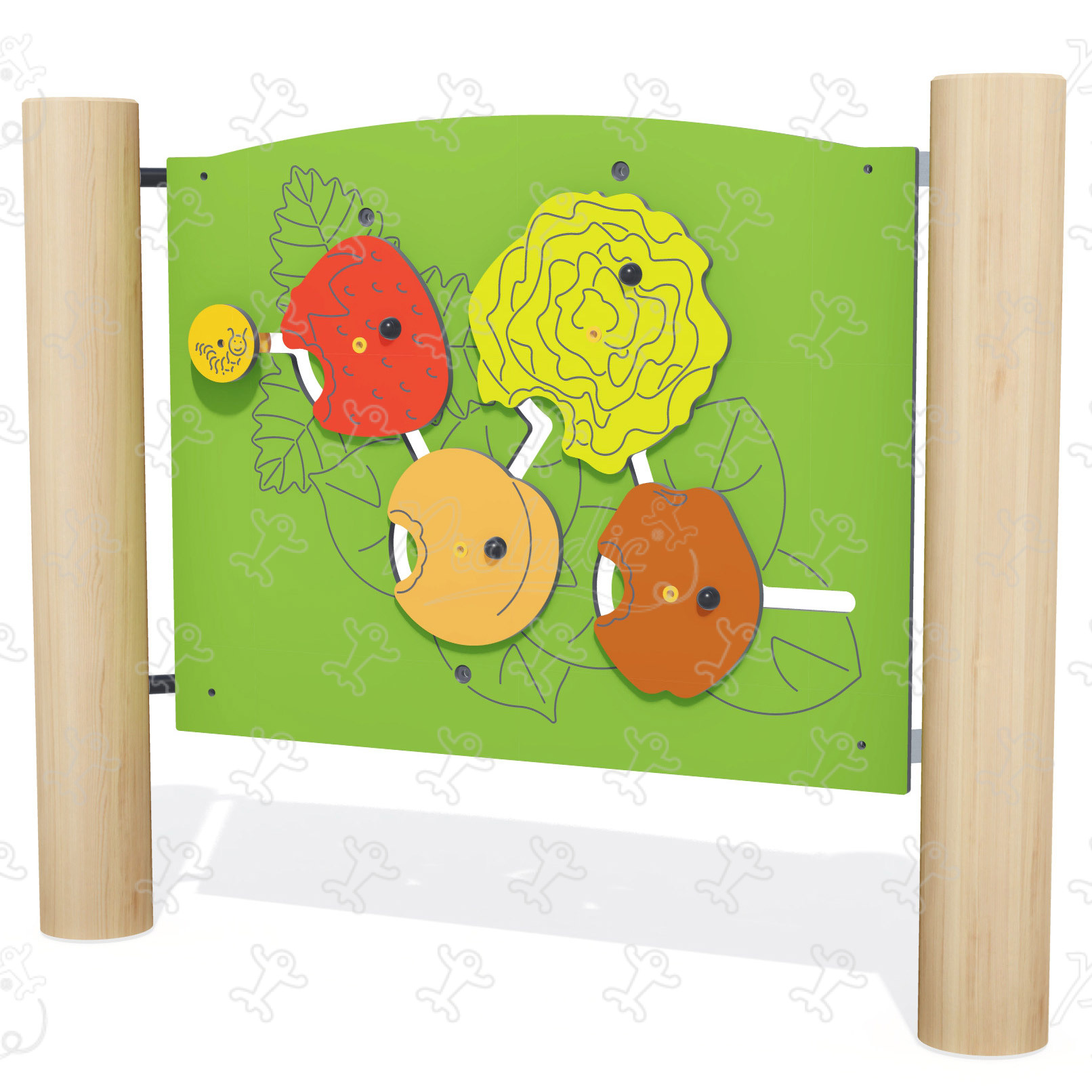

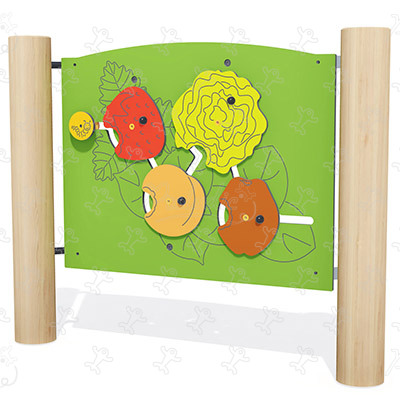

Freefall J3442 playgrounds educational & sensory play equipment fun panels & sound and musical games image 3d

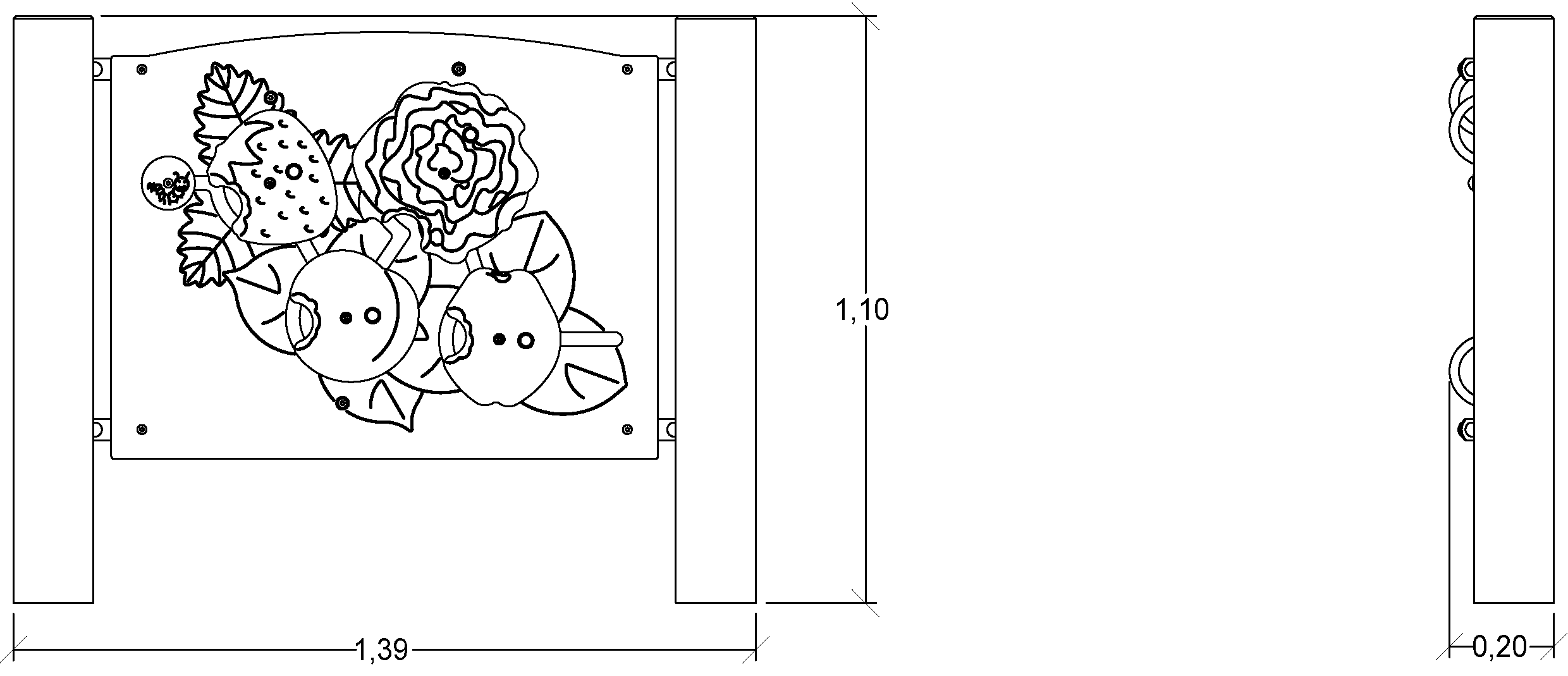

Freefall J3442 playgrounds educational & sensory play equipment fun panels & sound and musical games image side view

Freefall J3442 playgrounds educational & sensory play equipment fun panels & sound and musical games image view from above

Materials

The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
