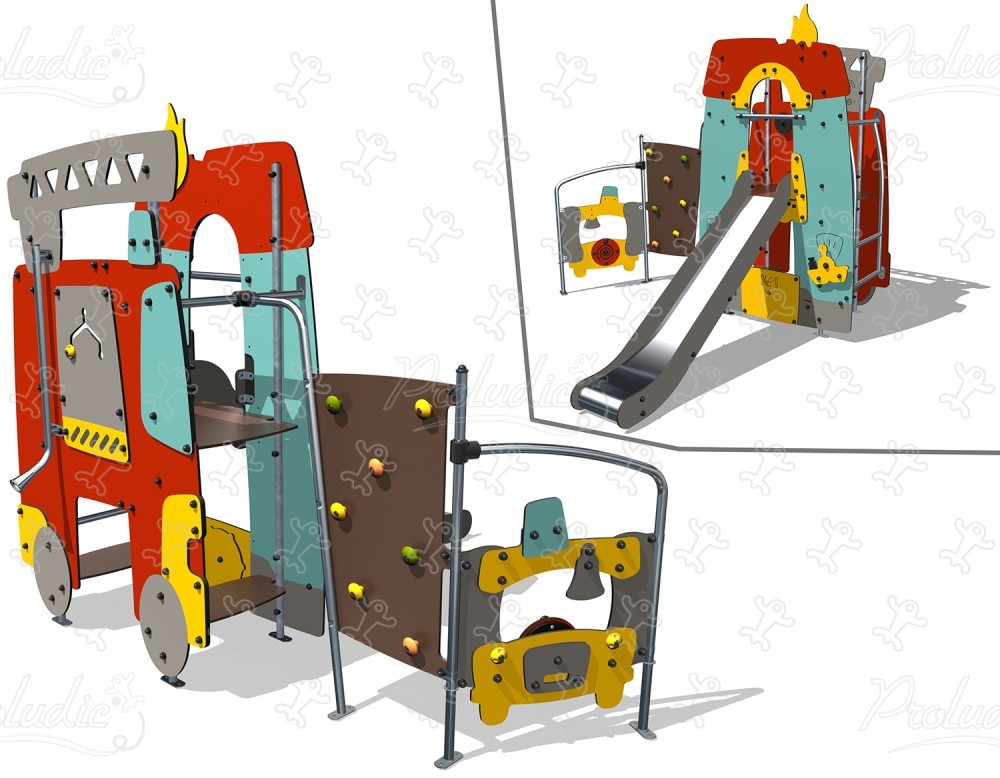

We have created the reference J4040 in our "City" range. This play equipment is accessible from 2 years. It can accommodate up to 16 users.
The size of the module is: 3.15 m length, 3.08 m width, 2.73 m. high. The free fall height (FFH) is 1.80 m.
14 play functions
Climbing
x1
Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.
Sliding
x1
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
Meeting
x2
By playing together, children learn how to interact with other personalities and behaviors.
Resting
x1
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
Handling
x1
A great exercise for developing motor skills and abilities in young children while having fun.
Hiding
x1
Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.
Sound stimulation
x1
Popular and often shared by numerous children, fun sound activities bring even more life to play areas!
Tactile stimulation
x1
Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.
Visual stimulation
x2
It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.
Climbing
x1
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
Specifications
| Age range: | 2+ |
| Number of users: | 16 users |
| FFH : | 1.80 m |

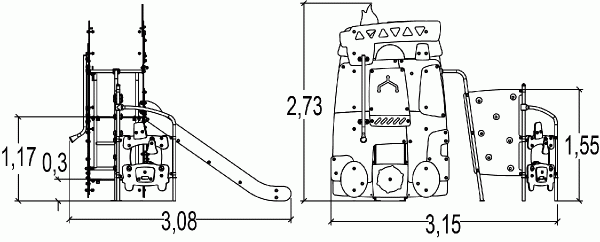

| Size: | 3.15 x 3.08 x 2.73 m |
Equipment installation
| Number of installers: | 2 |
| Installation time: | 08:00:00 |
| Concrete volume: | 0.30 m3 |

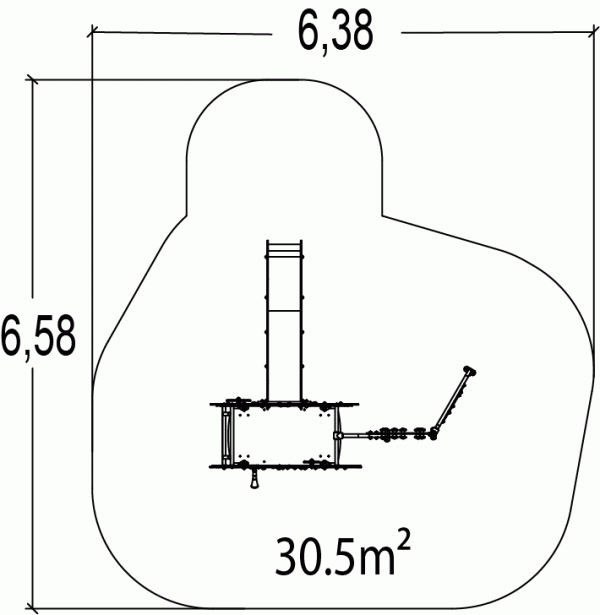

| Surface: | 30.50 m2 |
| Total weight: | 297.83 kg |
| Weight of the heaviest element: | 17.28 kg |
Environmental Indicators
Repairability
9.48 /10
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Materials
The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more
The climbing wall is made from a 12.5mm thick textured and non-slip compact material (HPL).
The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.
Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
The sliding surface is made of 2mm thick stainless steel, which is shaped, bent and rolled from one piece.
Plastic parts are made of injected polyamide.
The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
