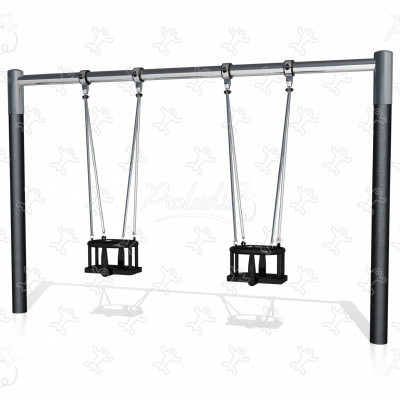

We have created the reference J480 in our "Swings" range. This play equipment is accessible from 1 year. It can accommodate up to 2 users.

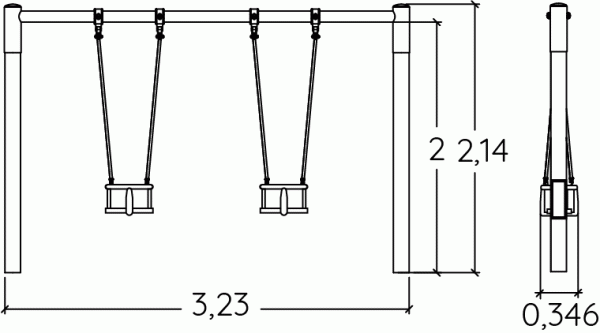

The size of the module is: 3.23 m length, 0.37 m width, 2.14 m. high. The free fall height (FFH) is 1.20 m.
3 play functions
Swinging
x1
To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.
Meeting
x1
By playing together, children learn how to interact with other personalities and behaviors.
Resting
x1
By resting, the child can recover from their exertions and improve their concentration before starting to play again.
Specifications
| Age range: | 1 - 3 |
| Number of users: | 2 users |
| FFH : | 1.20 m |
| Size: | 3.23 x 0.37 x 2.14 m |
Equipment installation
| Number of installers: | 2 |
| Installation time: | 01:30:00 |
| Concrete volume: | 0.50 m3 |

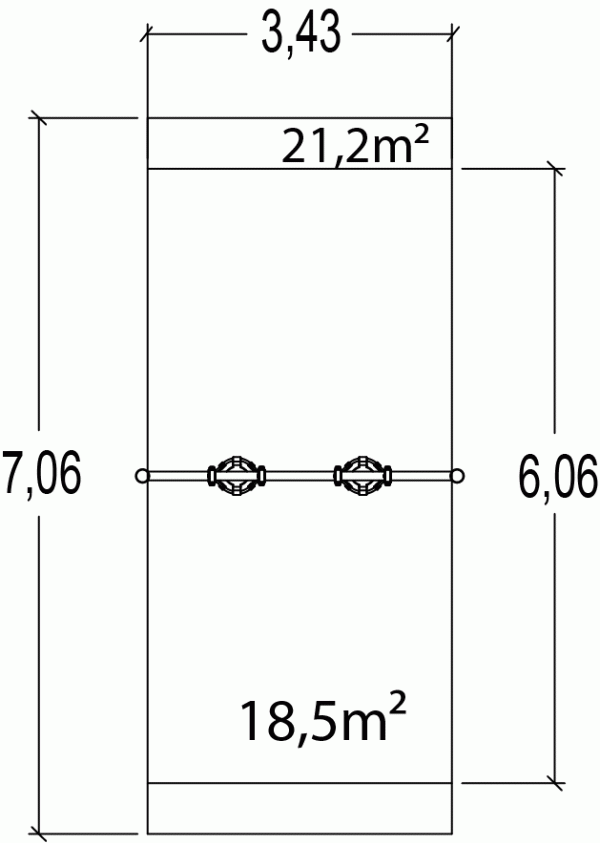

| Surface: | 18.50 m2 |
| Total weight: | 97.81 kg |
| Weight of the heaviest element: | 40.36 kg |
Environmental Indicators
Repairability
9.29 /10
Certification
The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Materials
The 125mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance.
The horizontal beam is made of non-painted galvanised steel.
The anti-wrapping system consists of polyamide parts and stainless steel collars. The swing bearings are made of stainless steel.
The pod swing seat for early childhood is made of polyurethane, which ensures a comfortable seating. The swing chains are made of stainless steel.
The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
