Wooden play structure for young children with slide, cabins, tunnel and sensory panels - J49254®

We have created the reference J49254® in our "Multi play structures" range. This play equipment is accessible from 0,5 years. It can accommodate up to 28 users.

The size of the module is: 5.28 m length, 4.84 m width, 2.63 m. high. The free fall height (FFH) is 1.00 m.

Standard Product

Complete documentation, TÜV certification issued.

17 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

By playing together, children learn how to interact with other personalities and behaviors.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Crawling x1

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Taking shelter x2

A refuge where the children can take shelter ensures that children have their own space.

Sound stimulation x1

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x1

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	0,5+
Number of users:	28 users
FFH :	1.00 m
Size:	5.28 x 4.84 x 2.63 m

Equipment installation

Surface:	48.50 m2
Total weight:	0.06 kg
Weight of the heaviest element:	0.01 kg

Environmental Indicators

Repairability

8.98 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

J49254® playgrounds multiplay equipment multi play structures image 3d

J49254® playgrounds multiplay equipment multi play structures image side view

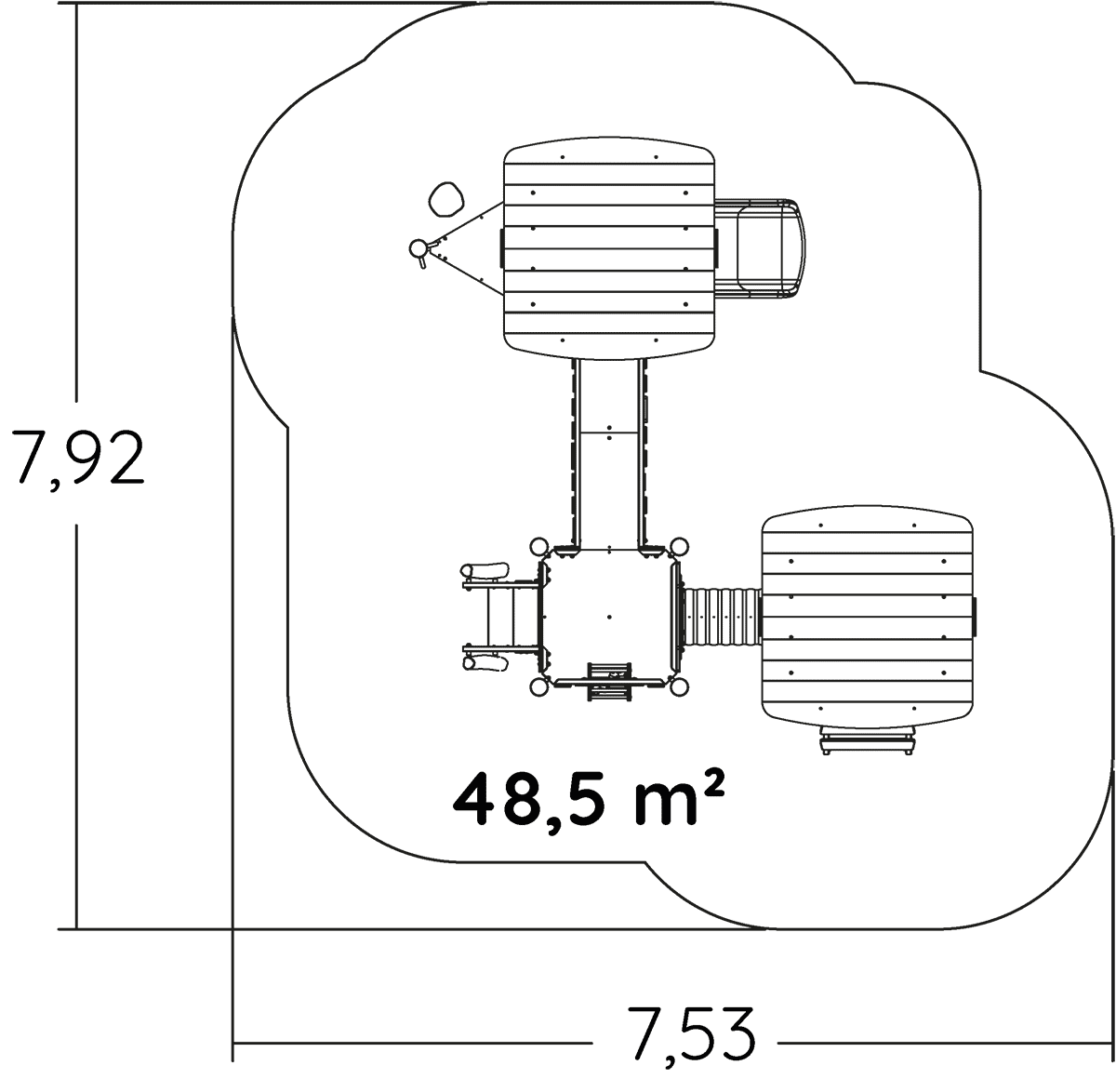

J49254® playgrounds multiplay equipment multi play structures image view from above

Materials

The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

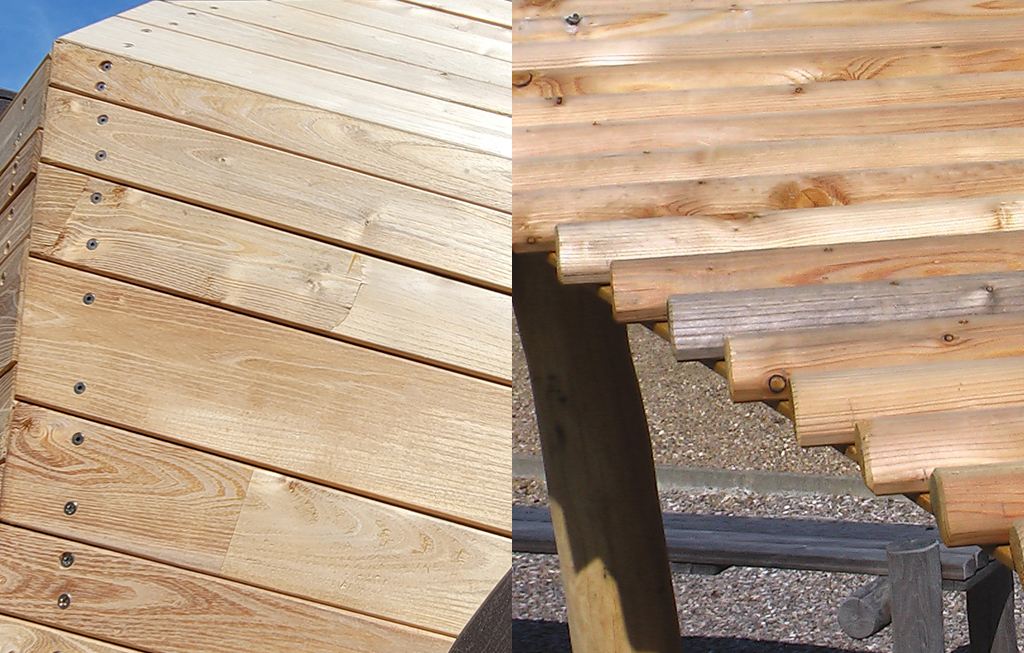

The boards and half-logs are made from natural robinia wood or Douglas fir (plank sizes: 22, 27 and 45mm). Robinia wood and Douglas fir are naturally rot proof and do not... require any additional chemical protection; they are equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The stair treads (with average diameter 25 to 30cm) are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof... and does not require any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more
