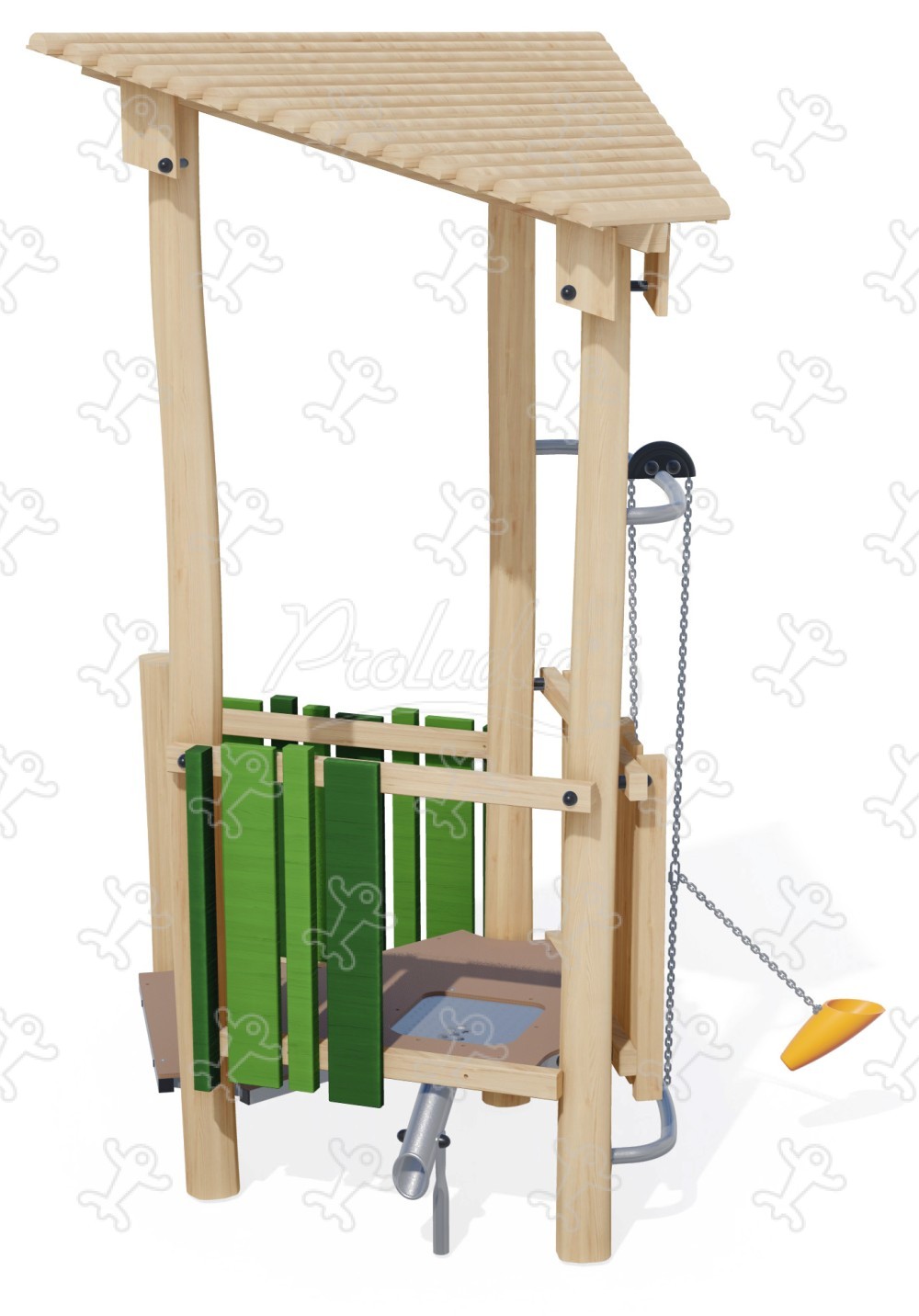

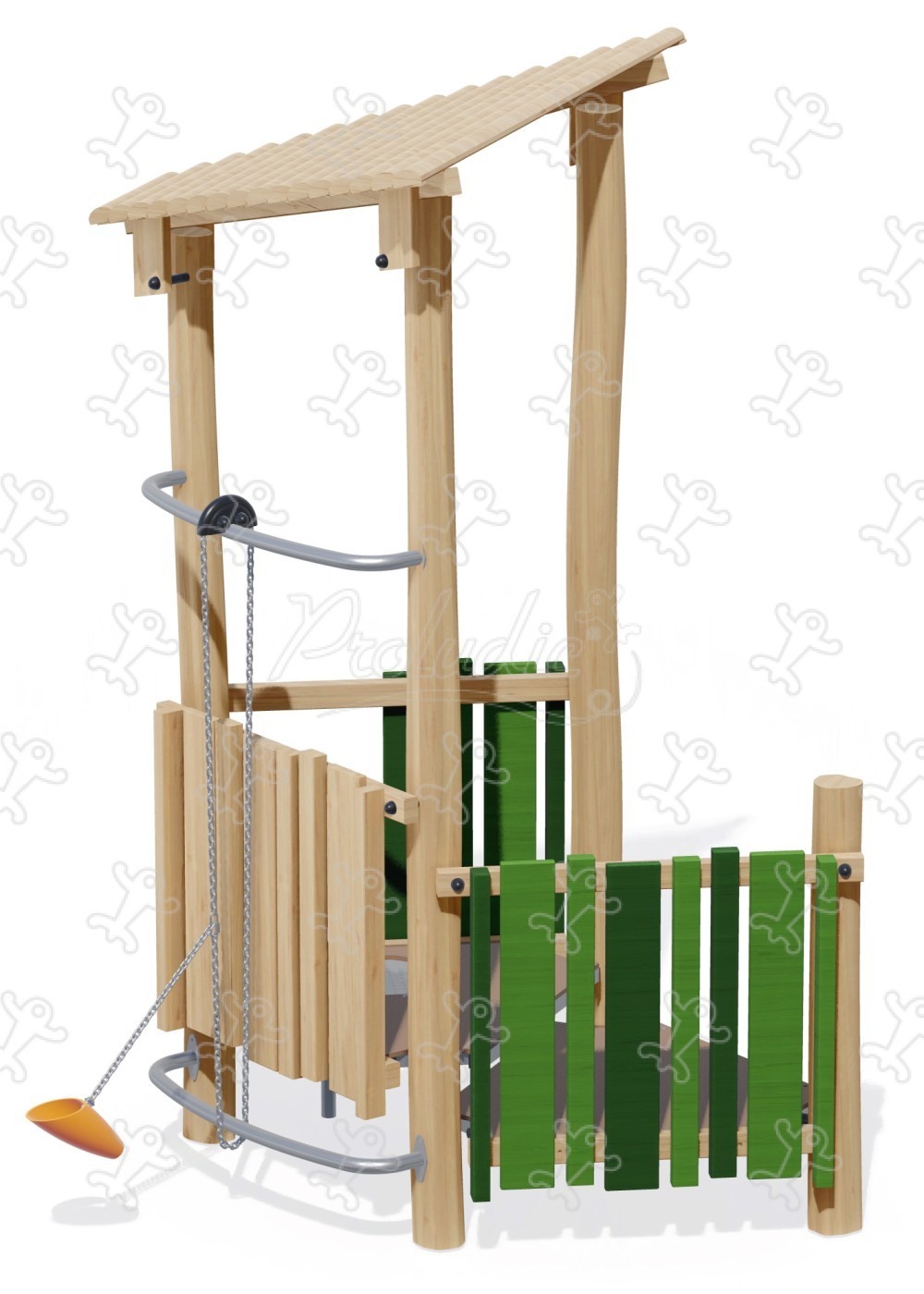

Multi play structures - The Hut - J4942-V

We have created the reference J4942-V in our "Multi play structures" range. This play equipment is accessible from 2 years. It can accommodate up to 4 users.

The size of the module is: 2.09 m length, 1.76 m width, 2.96 m. high. The free fall height (FFH) is 0.50 m.

Other finishes available

9 play functions

role play
Role play x1
Role plays promote the child's intellectual and social skills.
meeting
Meeting x1
By playing together, children learn how to interact with other personalities and behaviors.
taking shelter
Taking shelter x1
A refuge where the children can take shelter ensures that children have their own space.
handling
Handling x2
A great exercise for developing motor skills and abilities in young children while having fun.
hiding
Hiding x1
Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.
tactile stimulation
Tactile stimulation x2
Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.
climbing
Climbing x1
Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.
Show more

Specifications

Age range: 2+
Number of users: 4 users
FFH : 0.50 m
Size: 2.09 x 1.76 x 2.96 m

Equipment installation

Number of installers: 3
Installation time: 08:00:00
Concrete volume: 0.29 m3
Surface: 21.00 m2
Total weight: 302.01 kg
Weight of the heaviest element: 38.50 kg

Environmental Indicators

Repairability

Repairability

9.48 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

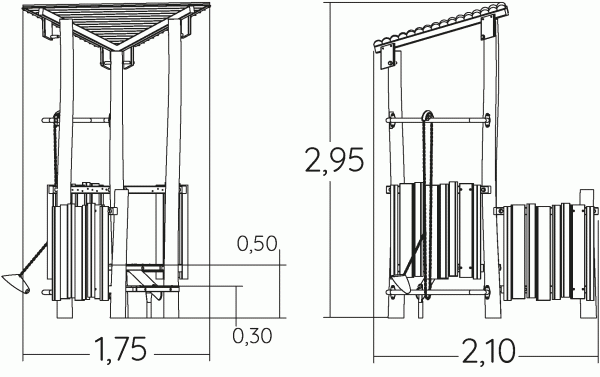

Side view
Side view

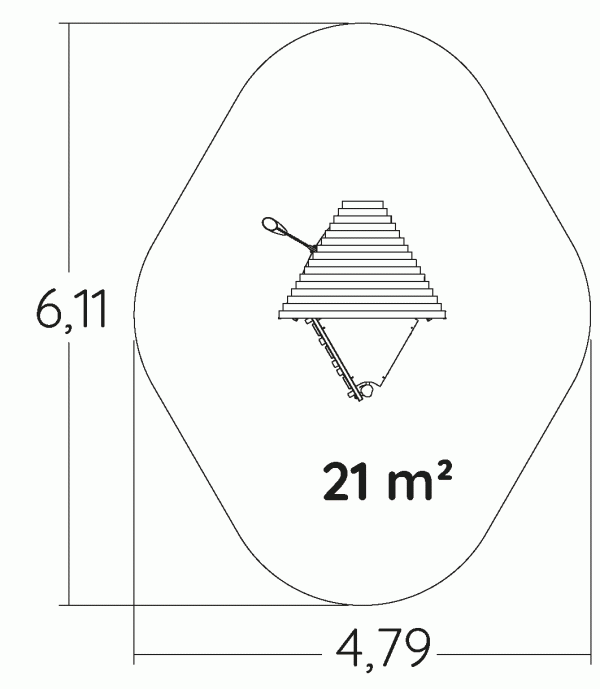

View from above
View from above

Materials

The posts with average diameter 120 to 140mm

The posts with average diameter 120 to 140mm are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The panels

The panels are made from larch (plank sizes 140 x 27mm / 45 x 68mm). Larch is naturally resistant and long lasting. The panels are coloured (shades of green)... using a staining process. Read more

The roof

The roof is made from larch logs (80 x 40 mm).

The platforms

The platforms are made from a 12.5mm thick, textured, non-slip compact material (HPL). Further reinforcement is provided by galvanised steel supports, located on... the underside of the platforms. Read more

The tubes

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The chains

The chains are made of stainless steel.

The buckets

The buckets are made of rotomoulded polyethylene.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
