Cableway for level ground

We have created the reference J518 in our "Cableways" range. This play equipment is accessible from 4 years. It can accommodate up to 1 user.

The size of the module is: 27.80 m length, 4.60 m width, 4.19 m. high. The free fall height (FFH) is 1.40 m.

4 play functions

meeting
Meeting x1
By playing together, children learn how to interact with other personalities and behaviors.
sliding
Sliding x1
Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.
hanging
Hanging x1
This fun activity allows you to explore a new way of playing, of managing space and the void below.
getting across
Getting across x1
 Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range: 4+
Number of users: 1 user
FFH : 1.40 m
Size: 27.80 x 4.60 x 4.19 m

Equipment installation

Number of installers: 2
Installation time: 20:00:00
Concrete volume: 2.80 m3
Surface: 115.00 m2
Total weight: 719.83 kg
Weight of the heaviest element: 357.00 kg

Environmental Indicators

Repairability

Repairability

9.06 /10

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.
Video - Cableways - Cableway for level ground - J518
Video - Cableways - Cableway for level ground - J518

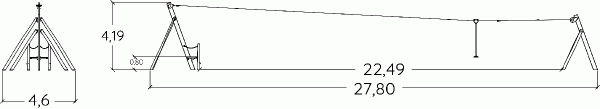

Side view
Side view

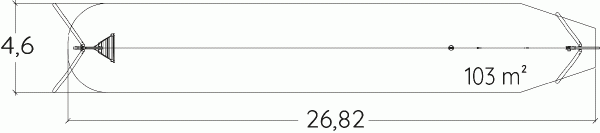

View from above
View from above

Materials

The cableway beams

The cableway beams , 250x100x4mm, are made of galvanised steel with the ends covered with a polyethylene cap. The correct tension of the 10mm diameter galvanized steel... cable is easily maintained via a ratchet system. Read more

The 120 to 140mm diameter posts

The 120 to 140mm diameter posts are made from sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require any additional... chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The trolley

The trolley is made of stainless steel ensuring its durability. The trolley wheels are made of polyamide, reducing noise levels during usage. The braking... mechanism of the pulley ensures that it rests in a stationary position when no force is applied. Read more

The cableway seat

The cableway seat is made of shock absorbing honeycomb rubber. The supporting chain is made from galvanised steel and covered with a protective plastic coating.

The board

The board is made from a a 27mm thick sap free robinia. The robinia is sanded and has had its bark removed. Robinia is naturally rot proof and does not require... any additional chemical protection; it is equally extremely resistant to attacks from external sources (insects, fungi, climatic variations), guaranteeing the long term durability of the playground equipment. Read more

The 16mm diameter rope

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

The fixings

The fixings are made of stainless or plated steel and protected by anti-vandalism polyamide caps.
