Combination - Street Workout Equipment - J5242

We have created the reference J5242 in our "ACTI’Street" range. This activity equipment is accessible from 14 years.

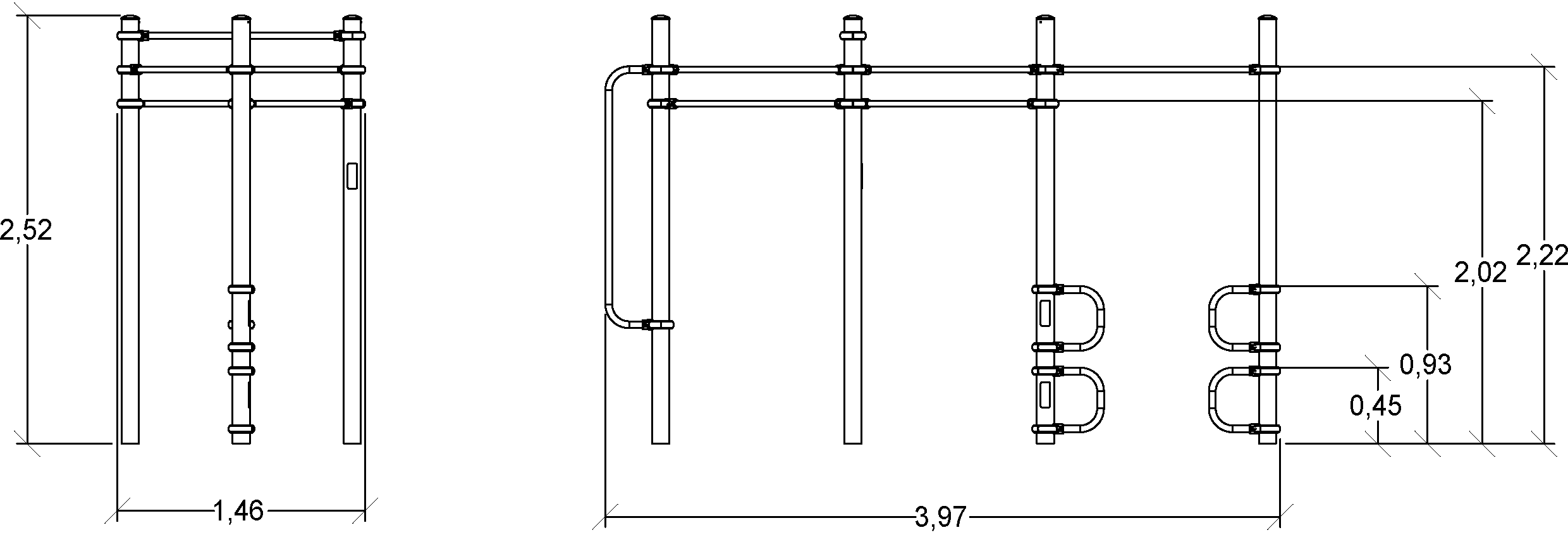

The size of the module is: 3.97 m length, 1.46 m width, 2.52 m. high. The free fall height (FFH) is 1.40 m.

In short

Sports Equation

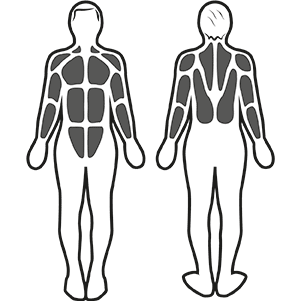

Muscle stimulation

14 sports activities

Hanging x6

Flag x1

Pull-ups x6

Push-ups x1

Specifications

Age range:	14+
FFH :	1.40 m
Size:	3.97 x 1.46 x 2.52 m

Equipment installation

Surface:	23.00 m2
Total weight:	171.02 kg
Weight of the heaviest element:	24.33 kg

Environmental Indicators

Repairability

9.17 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

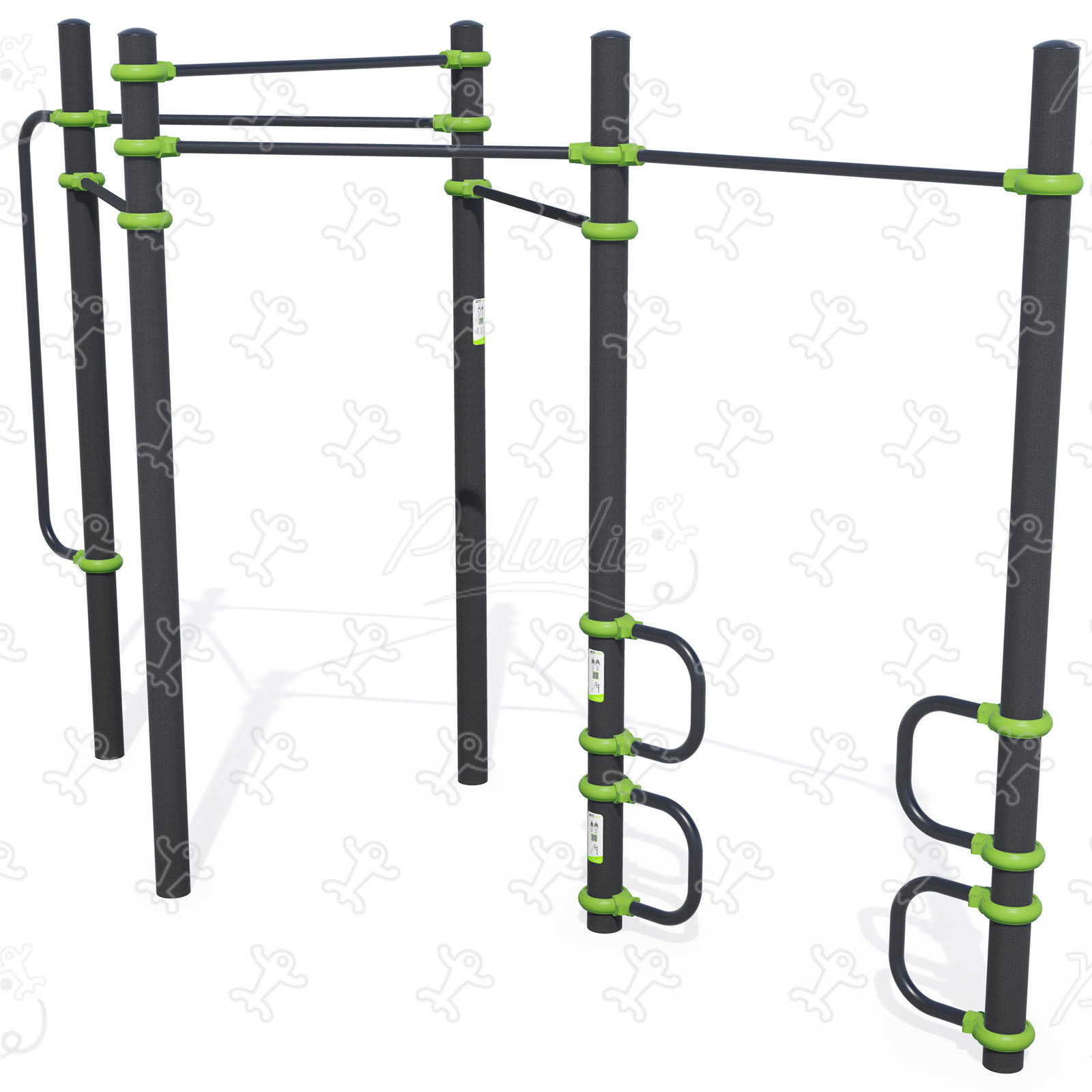

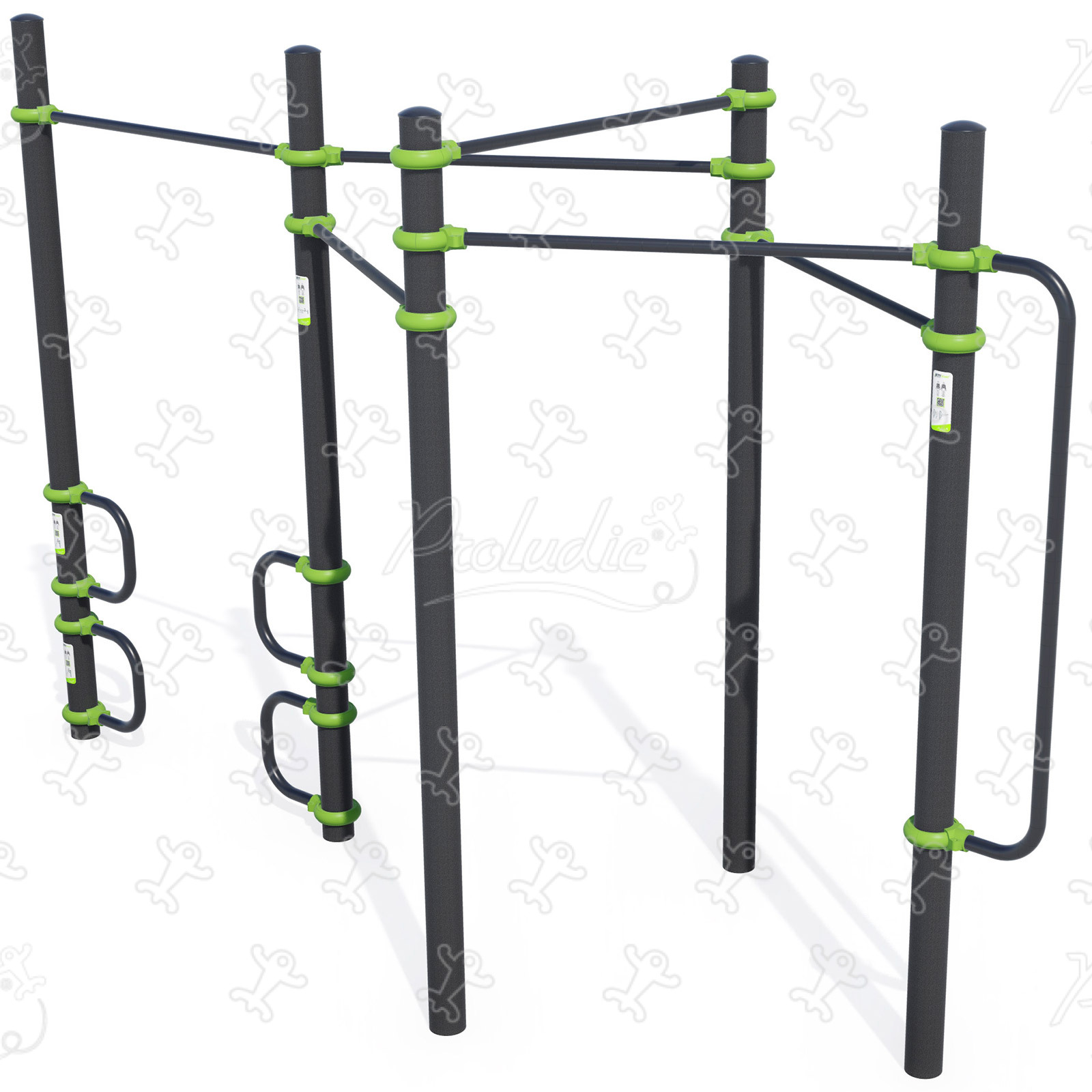

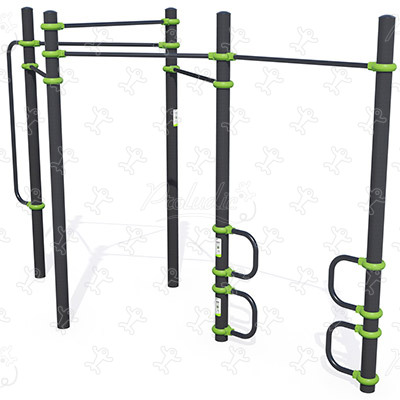

Combination J5242 sport and fitness acti’fun acti’street image 3d

Combination J5242 sport and fitness acti’fun acti’street image side view

Combination J5242 sport and fitness acti’fun acti’street image view from above

Materials

The 102mm diameter posts are made of painted galvanised steel. The grained finish has a slightly undulating surface for increased scratch resistance. The caps are made of... painted aluminium. Read more

The fixing collars are made of painted aluminium.

The tubes are made of electro-galvanized steel (diameter 34 mm) and stainless steel (diameter 40 mm), coated with epoxy paint. Electrogalvanization ensures... corrosion resistance and gives a high quality finish. Stainless steel guarantees the longevity and robustness of the equipment over time. The epoxy paint provides better grip. Read more
