Climbing equipment - Kairn - J6102-C®

We have created the reference J6102-C® in our "Climbing equipment" range. This play equipment is accessible from 6 years. It can accommodate up to 50 users.

The size of the module is: 6.05 m length, 3.90 m width, 3.05 m. high. The free fall height (FFH) is 3.00 m.

Other themes

J6102®

29 play functions

Climbing x1

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x1

Role plays promote the child's intellectual and social skills.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Crawling x9

Crawling is a fun exercise that allows young children to become aware of their bodies in small spaces.

Hiding x1

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Tactile stimulation x2

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Visual stimulation x4

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x9

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Specifications

Age range:	6+
Number of users:	50 users
FFH :	3.00 m

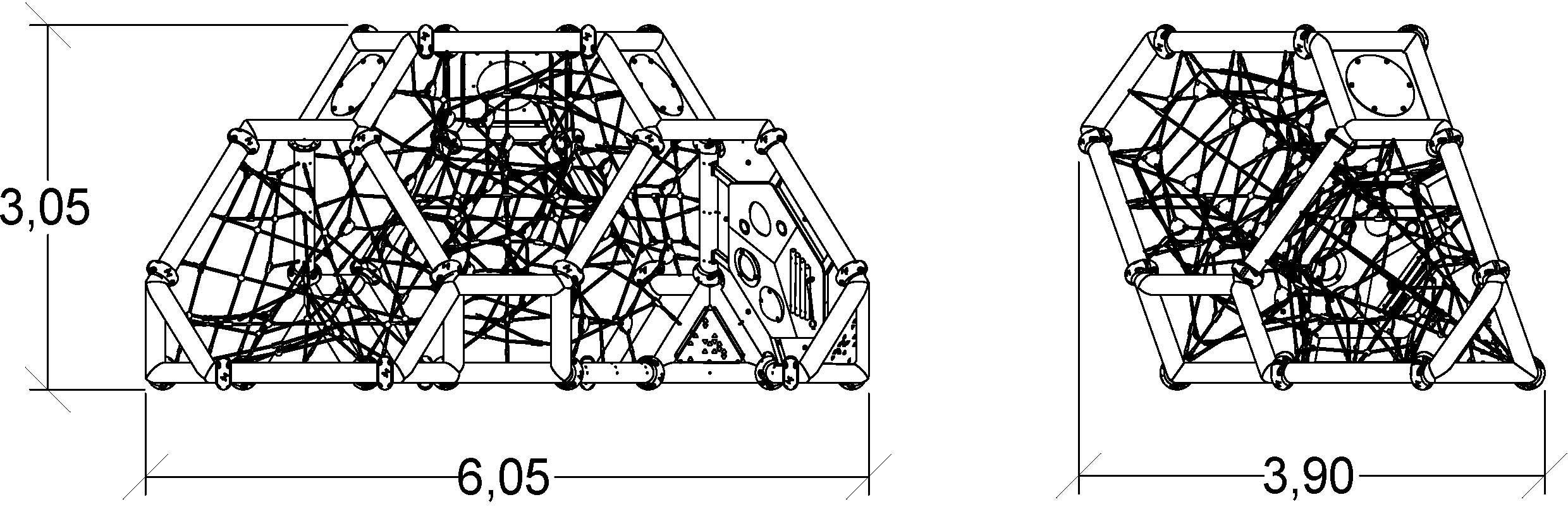

Size:	6.05 x 3.90 x 3.05 m

Equipment installation

Number of installers:	2

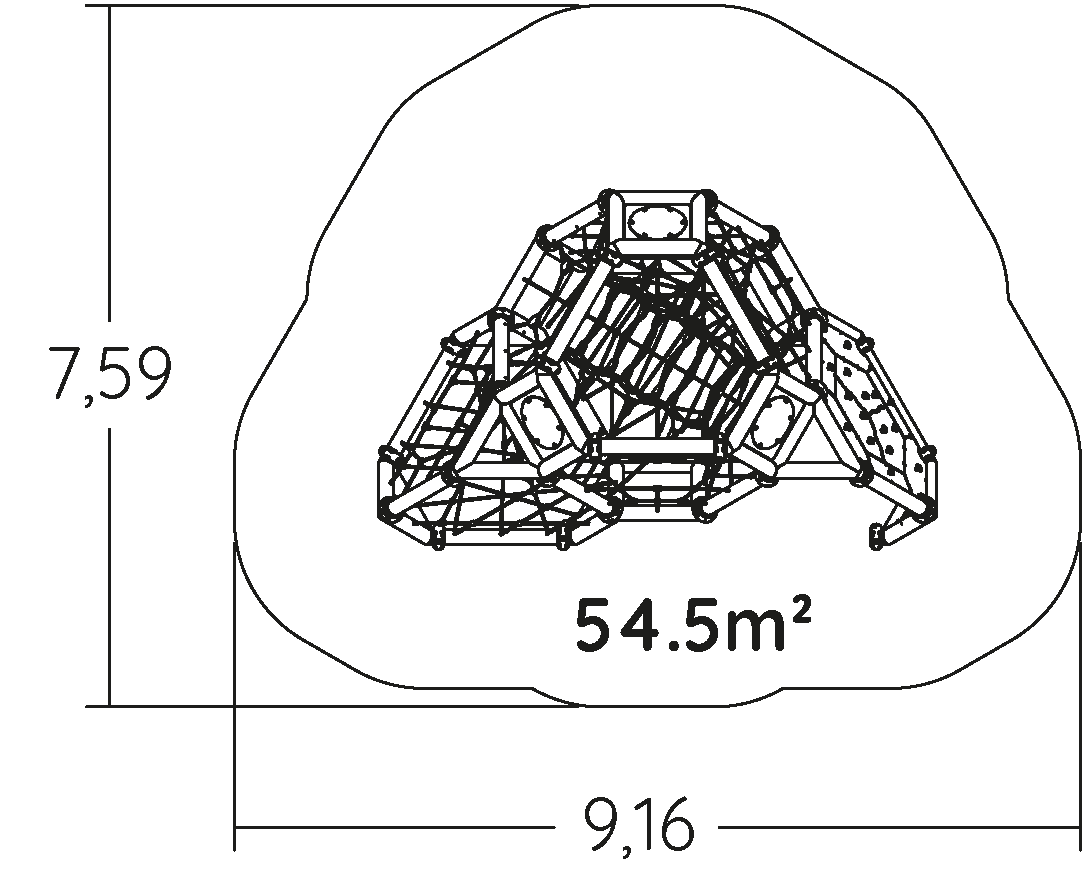

Surface:	54.50 m2
Total weight:	1304.57 kg
Weight of the heaviest element:	100.98 kg

Downloads

Technical fact sheet

Materials sheet

JPEG Image

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

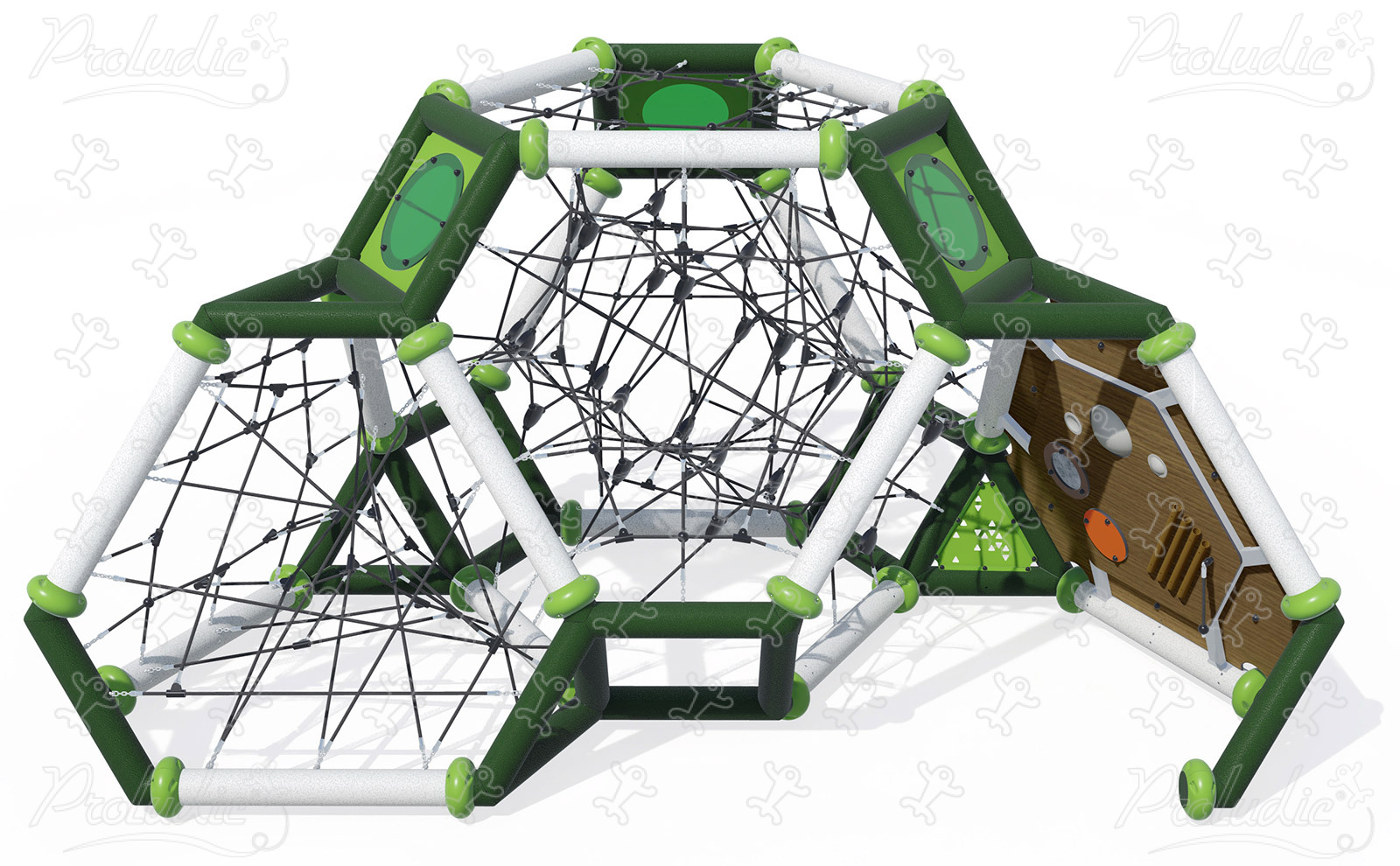

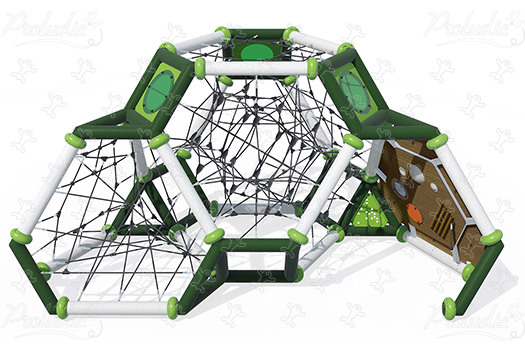

Kairn J6102-C® playgrounds climbing & balancing play equipment climbing equipment image 3d

Kairn J6102-C® playgrounds climbing & balancing play equipment climbing equipment image side view

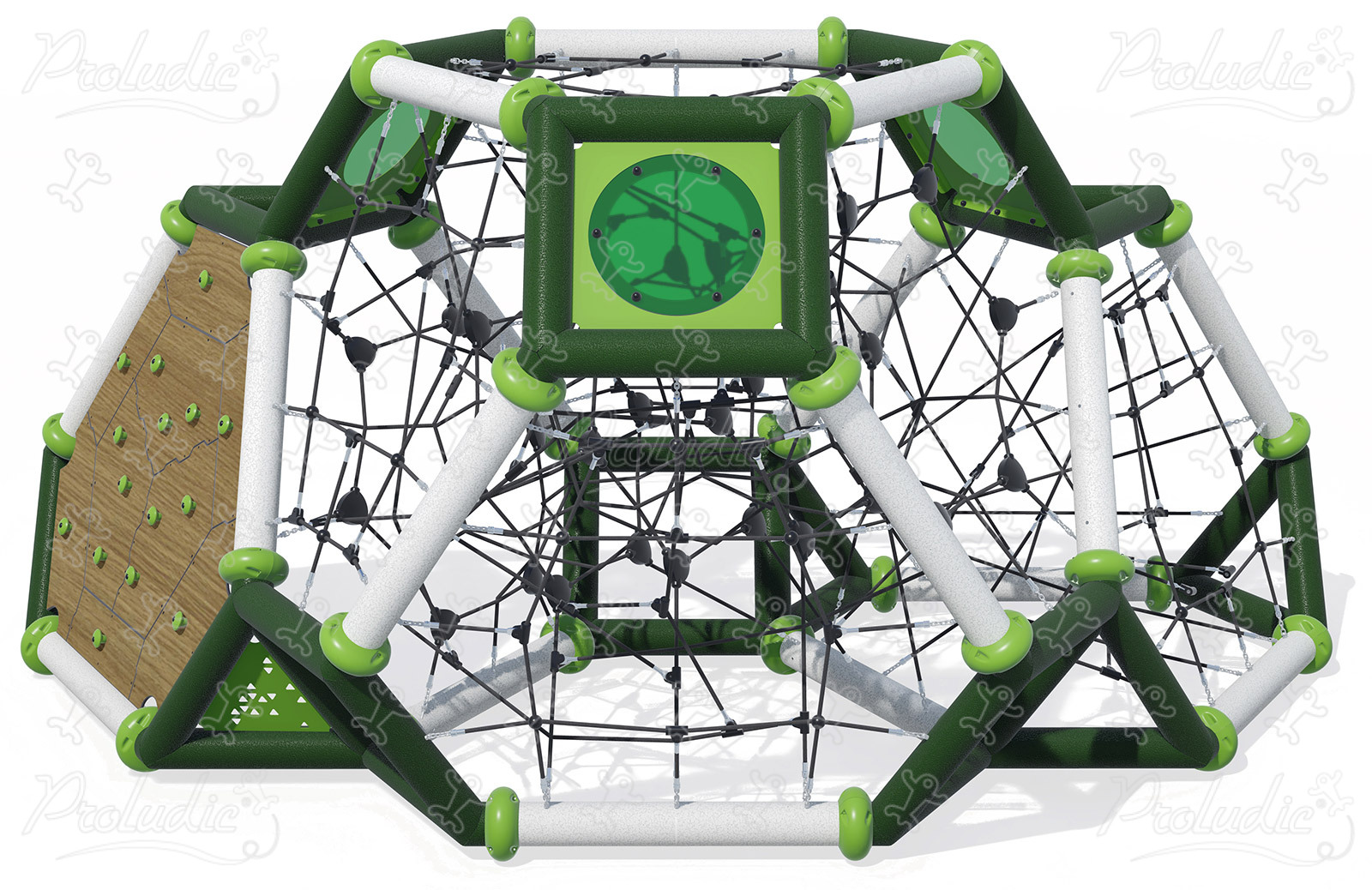

Kairn J6102-C® playgrounds climbing & balancing play equipment climbing equipment image view from above

Materials

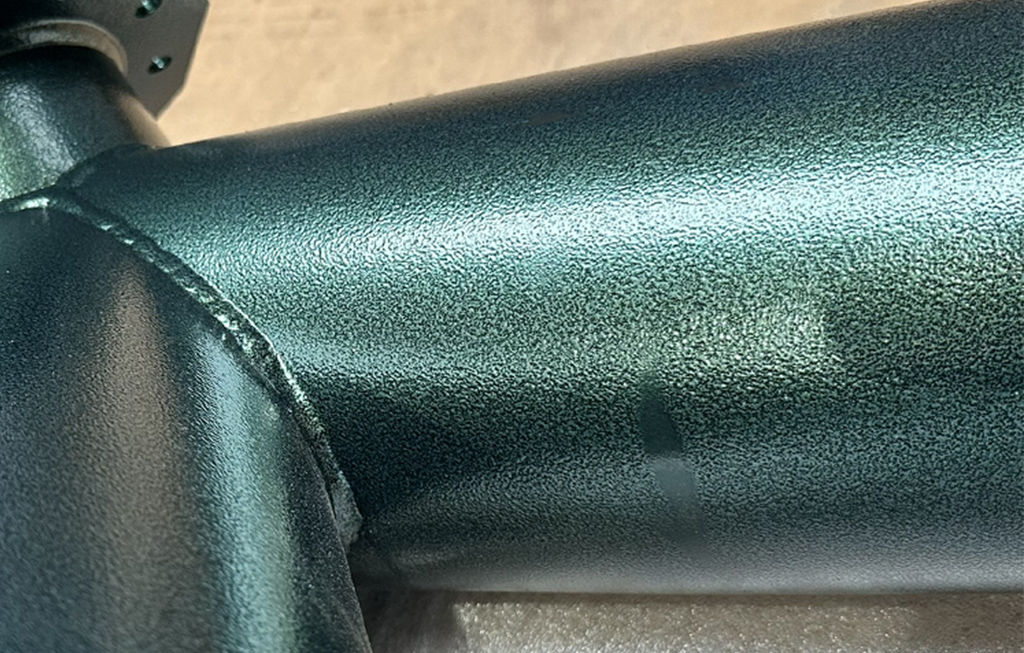

The 168,3mm diameter posts are made of painted galvanised steel.

The fixing collars are made of regenerated PA6 polyamide.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

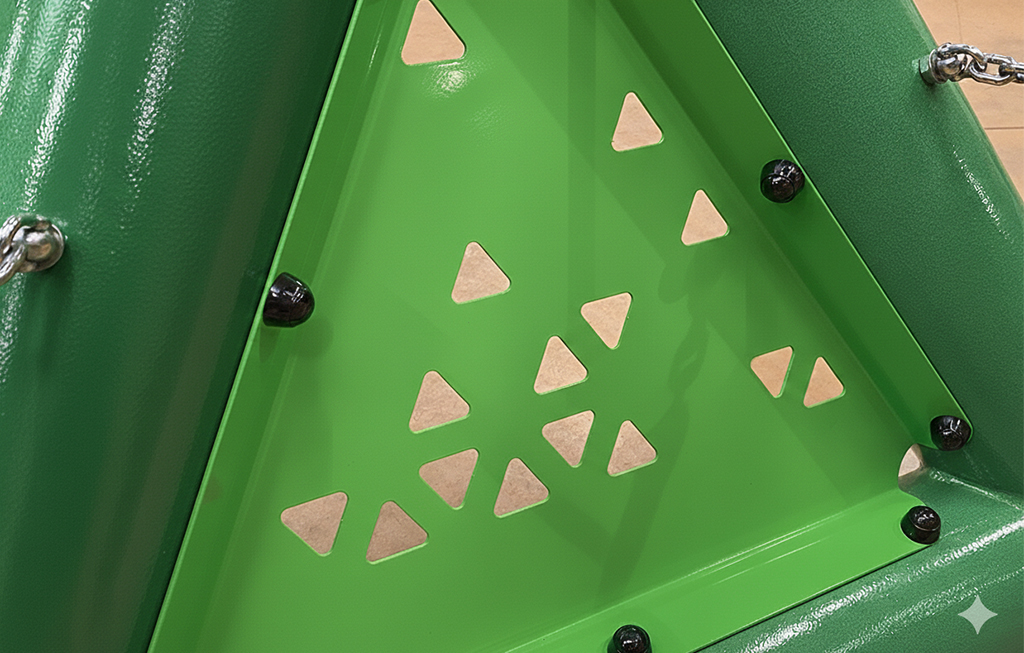

The closing elements are made of 3mm thick painted aluminium sheets.

The 16mm diameter rope is made of galvanised steel cable covered with polyester.

The net fittings are made of polyamide.

The net fittings are made of polyamide. The fittings are composed of two distinct parts for ease of maintenance of individual strands.

The chains are made of stainless steel.

The portholes are made from 8mm thick methacrylate (PMMA).

The play panel is composed of a polycarbonate mirror, a ribbed aluminum sheet and a grained polyethylene panel.

The tubes are made of anodised aluminium, which is a rust-proof material, resistant to climate changes.

The climbing holds are made of polypropylene. They are non-toxic, inflammable and shock and UV resistant. They give the units their strength and help to protect them... from vandalism. Read more
