Roll-Up

The Roll-Up is rotating play equipment that is set in
motion by users’ momentum. The hanging position and
centrifugal force create a real sense of flight.

This play equipment is accessible from 7 years. It can accommodate up to 8 users.

The size of the module is: 0.87 m length, 0.87 m width, 1.60 m. high. The free fall height (FFH) is 1.70 m.

4 sports activities

Rotating x1

Turning allows the child to experience thrills, to experience speed and to feel the exhilaration of their head and body turning uncontrollably.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

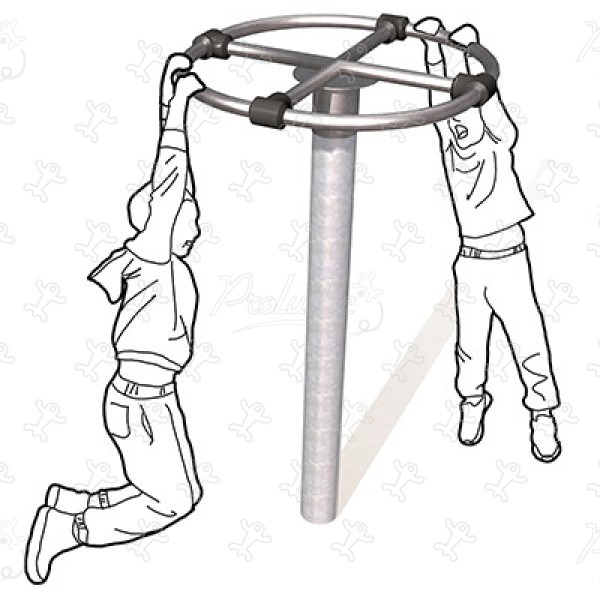

Hanging x1

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Swinging x1

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Specifications

Age range:	7+
Number of users:	8 users
FFH :	1.70 m
Size:	0.87 x 0.87 x 1.60 m

Equipment installation

Number of installers:	2
Installation time:	02:15:00
Concrete volume:	0.30 m3
Surface:	20.00 m2
Total weight:	51.91 kg
Weight of the heaviest element:	25.70 kg

Environmental Indicators

Repairability

8.65 /10

Downloads

Technical fact sheet

Materials sheet*

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

The products in our catalogues all comply with current European standards and are TÜV approved. Our website offers many additional configurations for which Proludic certifies compliance.

Materials

The 115mm diameter post is made of galvanised steel.

The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more
