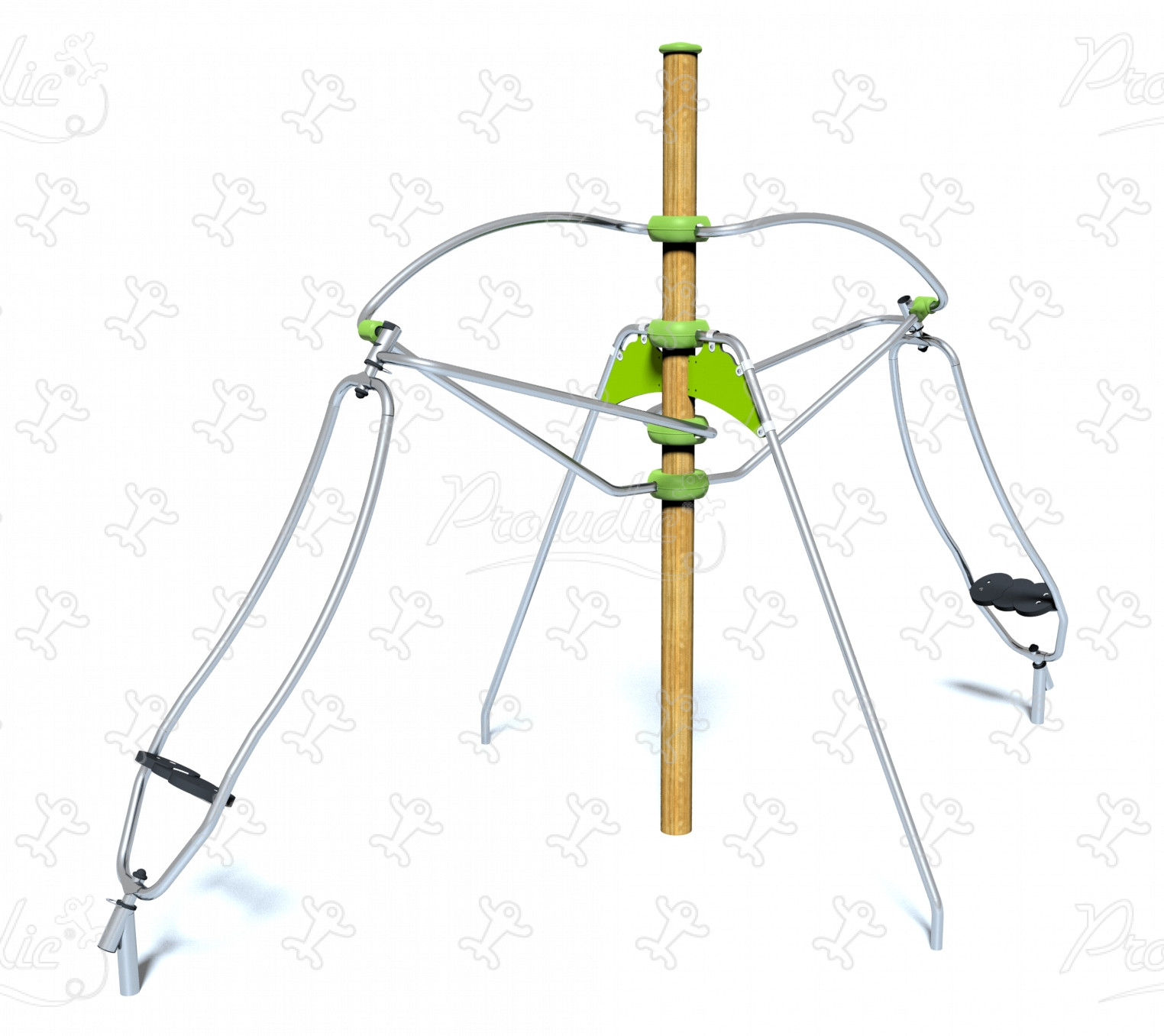

Gyrosat - Rotating playground equipment in steel 2 users – timber central post and stainless steel tubes - J2594

We have created the reference J2594 in our "Rotating equipment" range. This play equipment is accessible from 7 years. It can accommodate up to 2 users.

The size of the module is: 4.71 m length, 2.80 m width, 3.03 m. high. The free fall height (FFH) is 0.70 m.

Other finishes available

J2594-M

4 play functions

Rotating x1

Turning allows the child to experience thrills, to experience speed and to feel the exhilaration of their head and body turning uncontrollably.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Hanging x1

This fun activity allows you to explore a new way of playing, of managing space and the void below.

Balancing x1

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Specifications

Age range:	7+
Number of users:	2 users
FFH :	0.70 m

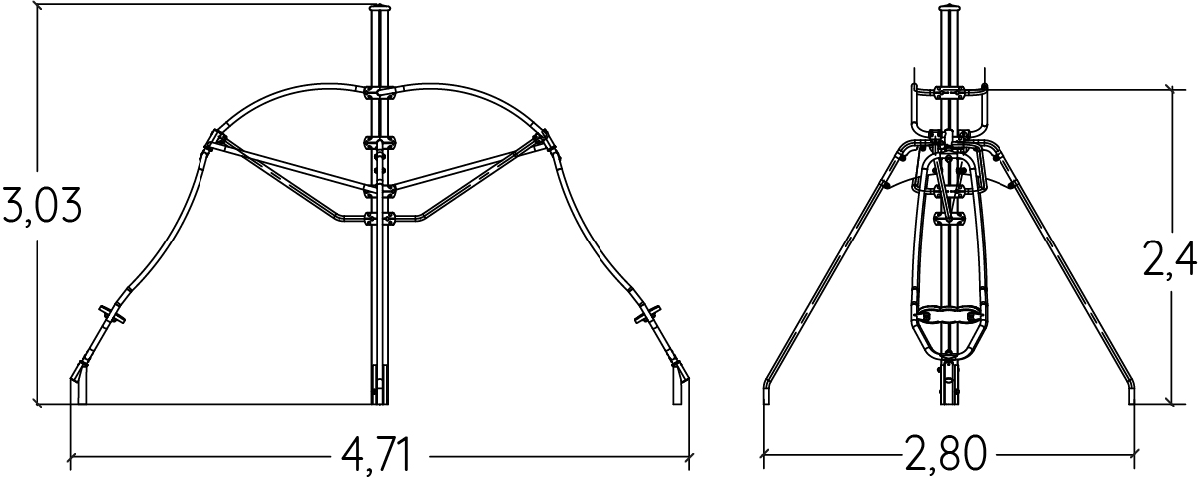

Size:	4.71 x 2.80 x 3.03 m

Equipment installation

Number of installers:	2
Installation time:	05:15:00
Concrete volume:	0.32 m3

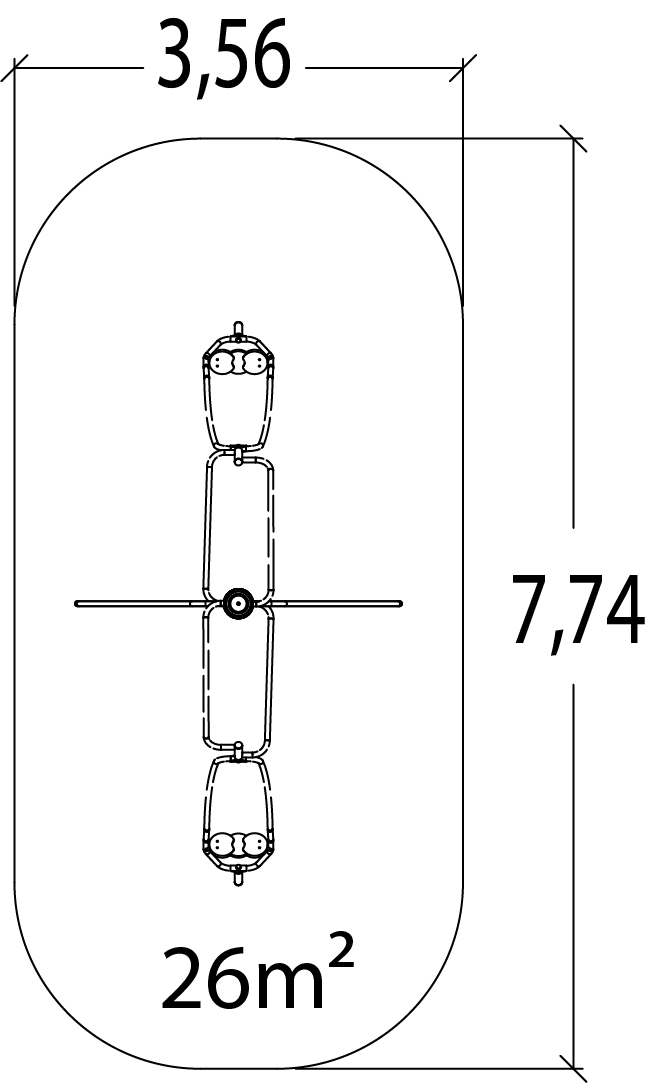

Surface:	26.00 m2
Total weight:	137.71 kg
Weight of the heaviest element:	20.85 kg

Environmental Indicators

Repairability

9.17 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

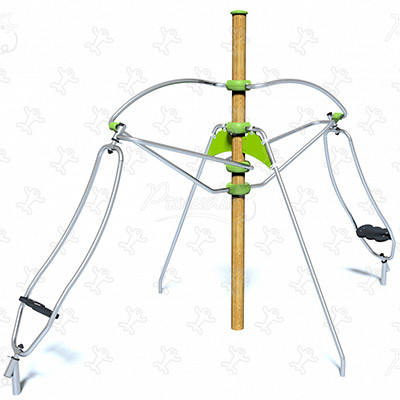

Gyrosat J2594 playgrounds moving equipment rotating equipment image 3d

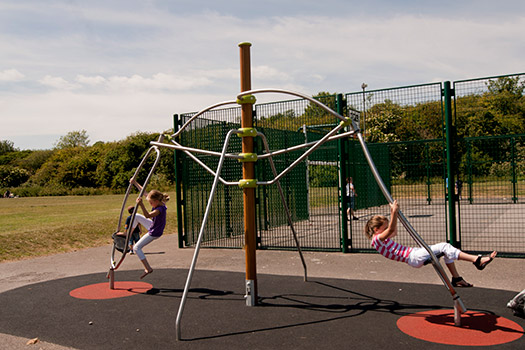

Gyrosat J2594 playgrounds moving equipment rotating equipment image photo

Gyrosat J2594 playgrounds moving equipment rotating equipment image side view

Gyrosat J2594 playgrounds moving equipment rotating equipment image view from above

Materials

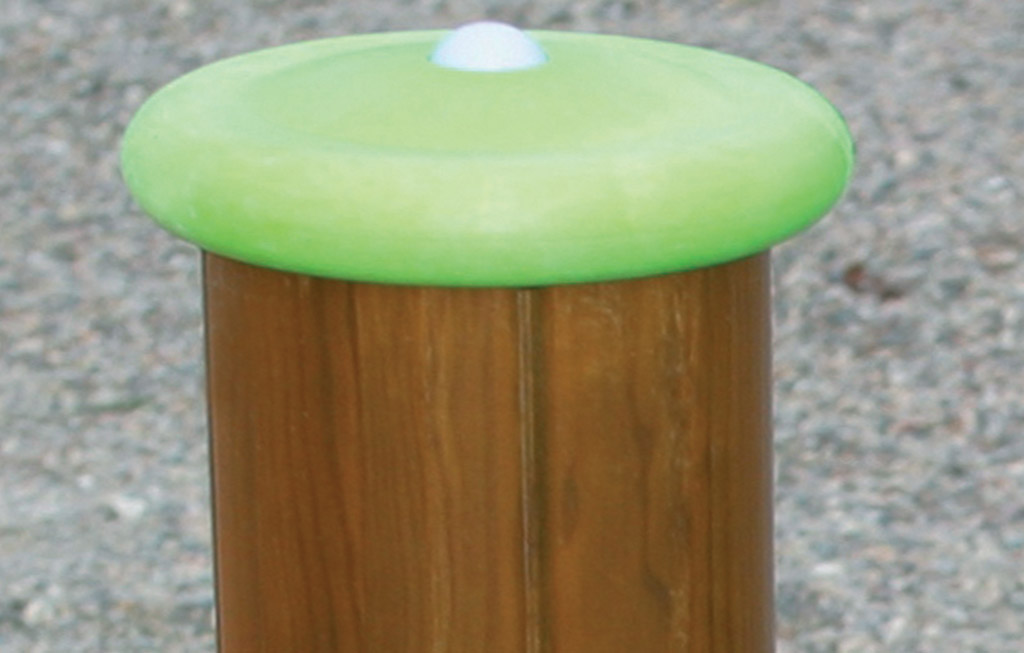

The 125mm round post is made of laminated timber, which has not been treated with chrome or arsenic. Splinter-free, the laminate provides great strength and dimensional... stability. The post is protected from wear and tear caused by fungi and insects. The cap is made of injection moulded polyamide. Read more

The tubes are made of stainless steel, guaranteeing lasting durability and reliability of the equipment.

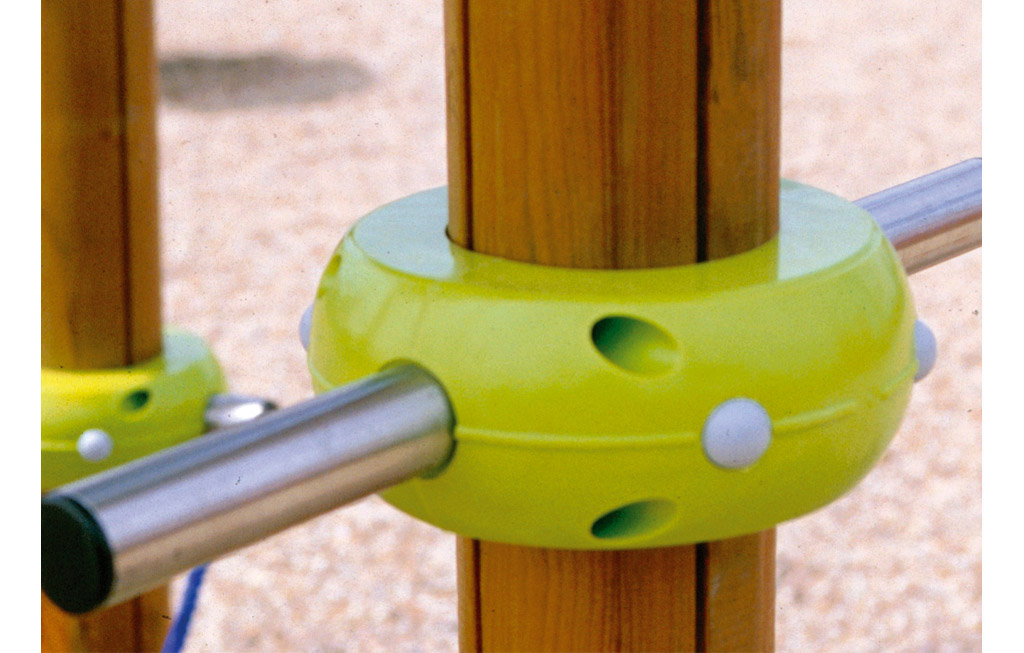

Injection moulded polyamide fixings connect the posts with the platforms and the various play features.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The seat is made of shock absorbing moulded honeycomb rubber.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.
