Multiplay equipment with slide, play table, and climbing activities in pastel and wood colours - J38105-C

We have created the reference J38105-C in our "Diabolo" range. This play equipment is accessible from 3 years. It can accommodate up to 23 users.

The size of the module is: 5.47 m length, 4.63 m width, 3.22 m. high. The free fall height (FFH) is 2.10 m.

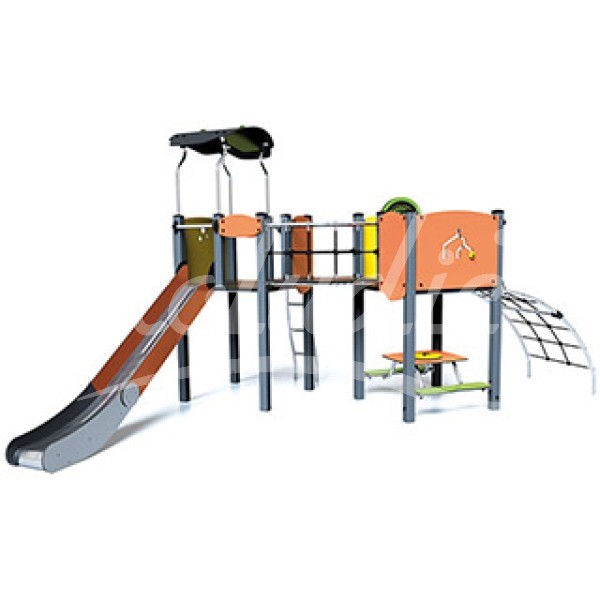

Other finishes available

J38105

19 play functions

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x3

By playing together, children learn how to interact with other personalities and behaviors.

Resting x2

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x3

A great exercise for developing motor skills and abilities in young children while having fun.

Taking shelter x1

A refuge where the children can take shelter ensures that children have their own space.

Thinking x2

Thinking helps children become more independent and gain self-confidence through a sense of increased self-awareness.

Tactile stimulation x3

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Climbing x2

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x1

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Specifications

Age range:	3+
Number of users:	23 users
FFH :	2.10 m
Size:	5.47 x 4.63 x 3.22 m

Equipment installation

Number of installers:	2
Installation time:	18:00:00
Concrete volume:	0.40 m3
Surface:	42.50 m2
Total weight:	547.19 kg
Weight of the heaviest element:	29.08 kg

Environmental Indicators

Repairability

9.43 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

J38105-C playgrounds multiplay equipment diabolo image 3d

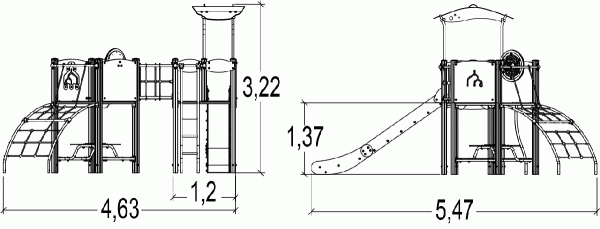

J38105-C playgrounds multiplay equipment diabolo image side view

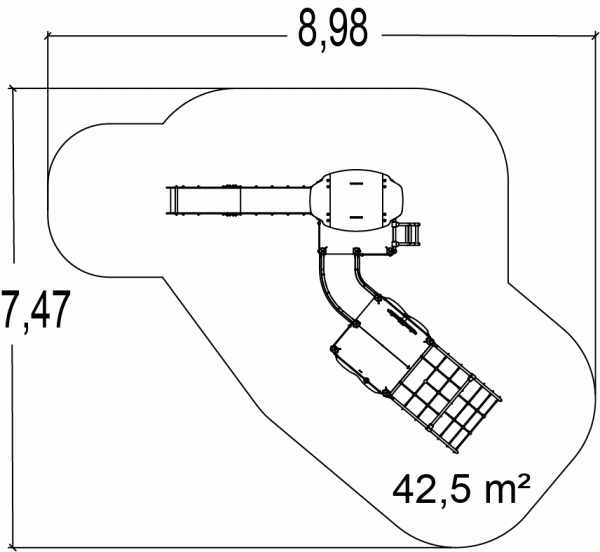

J38105-C playgrounds multiplay equipment diabolo image view from above

Materials

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The 95 x 95mm posts are made of painted galvanised steel, ensuring robustness and durability. The caps are made of injection moulded polyamide.

The platforms are made from a 12.5mm thick textured and non-slip compact material (HPL).

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

Injection moulded polyamide fixings connect the posts with the platforms and the various play features. They are non-toxic, flameproof and U.V. resistant. The thickness of the polyamide... makes the equipment both strong and vandal resistant. Read more

The roof is made of 10mm thick polyethylene plates.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
