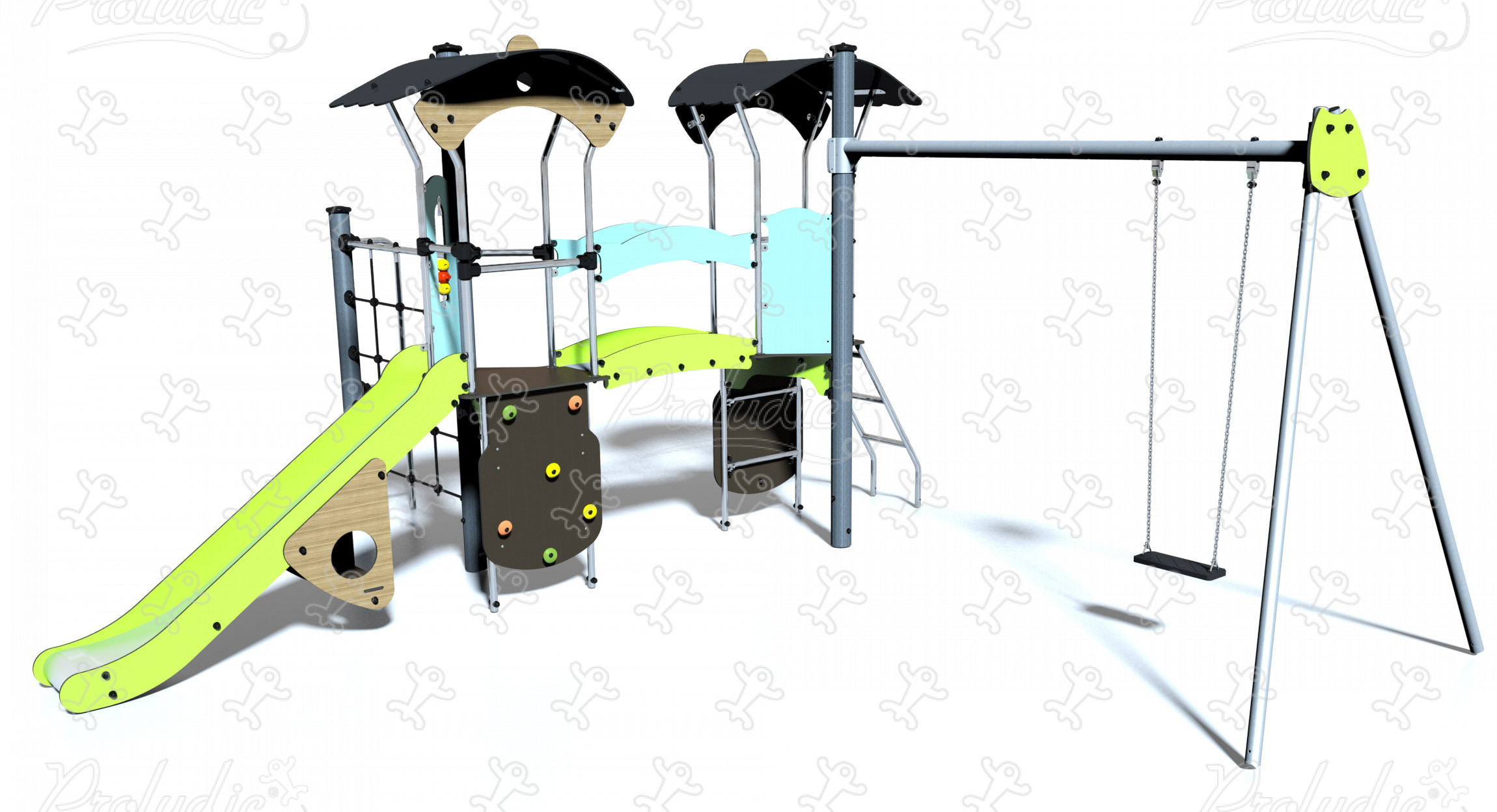

Multiplay equipment with elevated playhouses, climbing activities, swing set, and slide, in pastel and wood colours - J3871-C®

We have created the reference J3871-C® in our "Diabolo" range. This play equipment is accessible from 3 years. It can accommodate up to 20 users.

The size of the module is: 5.92 m length, 5.38 m width, 2.94 m. high. The free fall height (FFH) is 1.80 m.

Other finishes available

J3871®

19 play functions

Climbing x2

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Sliding x1

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x2

By playing together, children learn how to interact with other personalities and behaviors.

Resting x1

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x2

A great exercise for developing motor skills and abilities in young children while having fun.

Swinging x1

To create movement, a child must be able to mobilise their arms, legs and torso in a coordinated fashion.

Taking shelter x2

A refuge where the children can take shelter ensures that children have their own space.

Climbing x4

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x2

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Tactile stimulation x2

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Specifications

Age range:	3+
Number of users:	20 users
FFH :	1.80 m

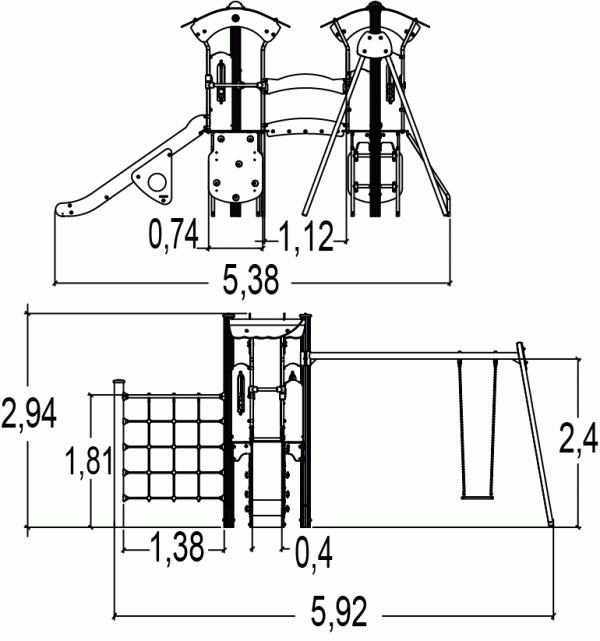

Size:	5.92 x 5.38 x 2.94 m

Equipment installation

Number of installers:	2
Installation time:	20:00:00
Concrete volume:	0.31 m3

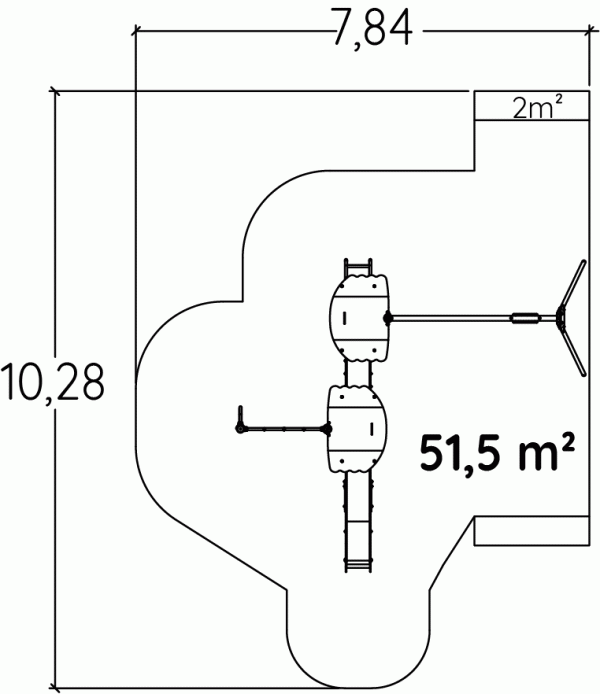

Surface:	51.50 m2
Total weight:	386.55 kg
Weight of the heaviest element:	26.00 kg

Environmental Indicators

Repairability

9.43 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

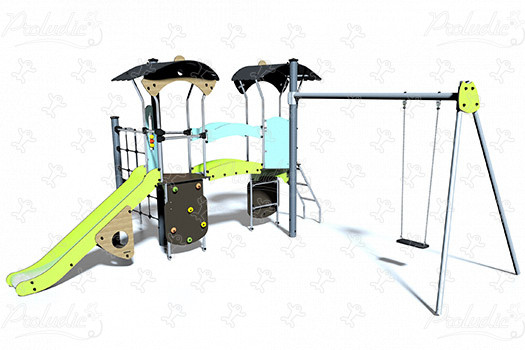

J3871-C® playgrounds multiplay equipment diabolo image 3d

J3871-C® playgrounds multiplay equipment diabolo image side view

J3871-C® playgrounds multiplay equipment diabolo image view from above
