Tower with climbing extension - Giant play tower with rope play activities, slides, and rope bridge - J56105

We have created the reference J56105 in our "Kanopé" range. This play equipment is accessible from 5 years. It can accommodate up to 55 users.

The size of the module is: 17.52 m length, 12.64 m width, 6.87 m. high. The free fall height (FFH) is 2.10 m.

41 play functions

Climbing x2

Climbing develops the motor and psychomotor skills of the child who must show balance and assess risk to progress in their movement.

Role play x1

Role plays promote the child's intellectual and social skills.

Sliding x2

Slipping never goes out of style. On a classic slide or a sliding pole, on your stomach, on your back, as you please.

Meeting x1

By playing together, children learn how to interact with other personalities and behaviors.

Resting x8

By resting, the child can recover from their exertions and improve their concentration before starting to play again.

Handling x1

A great exercise for developing motor skills and abilities in young children while having fun.

Hiding x4

Feel the excitement of being hidden somewhere to be found and the pleasure of finally being discovered is a joy.

Taking shelter x5

A refuge where the children can take shelter ensures that children have their own space.

Sound stimulation x1

Popular and often shared by numerous children, fun sound activities bring even more life to play areas!

Visual stimulation x3

It awakens curiosity and memorisation further helping the child to concentrate to better assimilate the details or to succeed in the associations of colors.

Climbing x5

Climbing promotes dexterity, balance and coordination of movements. On the way up, the child learns to deal with height.

Getting across x4

Succeeding in this activity allows the child to gain self-confidence and make them want to progress in more complex traversing movements.

Balancing x3

Balancing involves learning to manage empty space in activities at height, hanging or on narrow surfaces.

Tactile stimulation x1

Each touch-stimulating activity allows children to refine their manual skills as well as the coordination of their gestures.

Specifications

Age range:	5+
Number of users:	55 users
FFH :	2.10 m
Size:	17.52 x 12.64 x 6.87 m

Equipment installation

Number of installers:	3
Installation time:	45:00:00
Concrete volume:	2.00 m3
Surface:	116.50 m2
Total weight:	3067.26 kg
Weight of the heaviest element:	78.34 kg

Environmental Indicators

Repairability

9.43 /10

Downloads

Technical fact sheet

Materials sheet

JPEG Image

2D DXF

2D DWG

3D DWG

Certification

All Play and Sports equipment in our standard offer are certified by an independent laboratory.

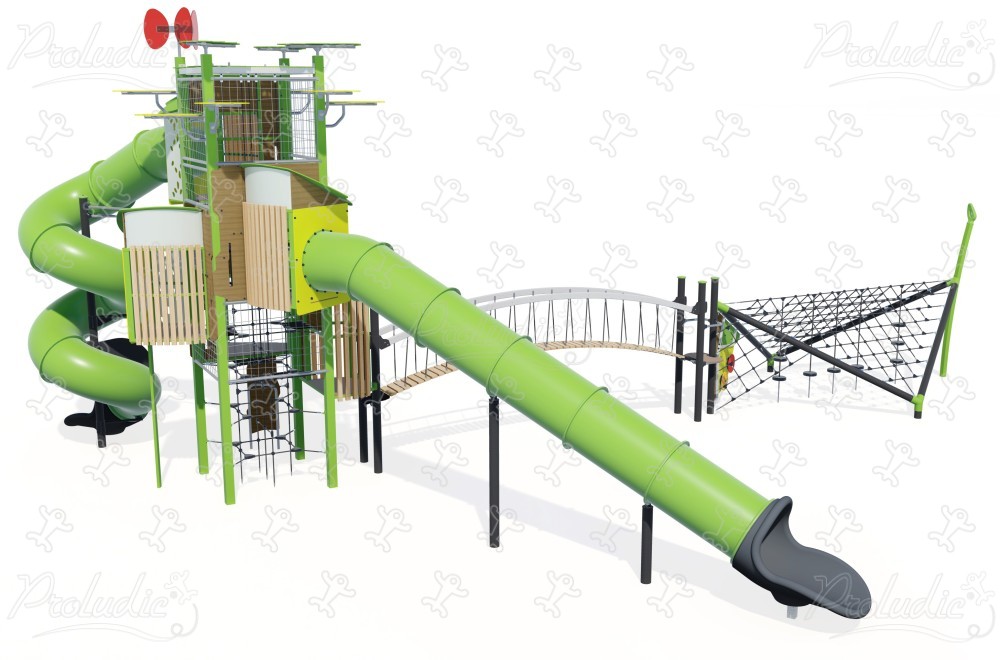

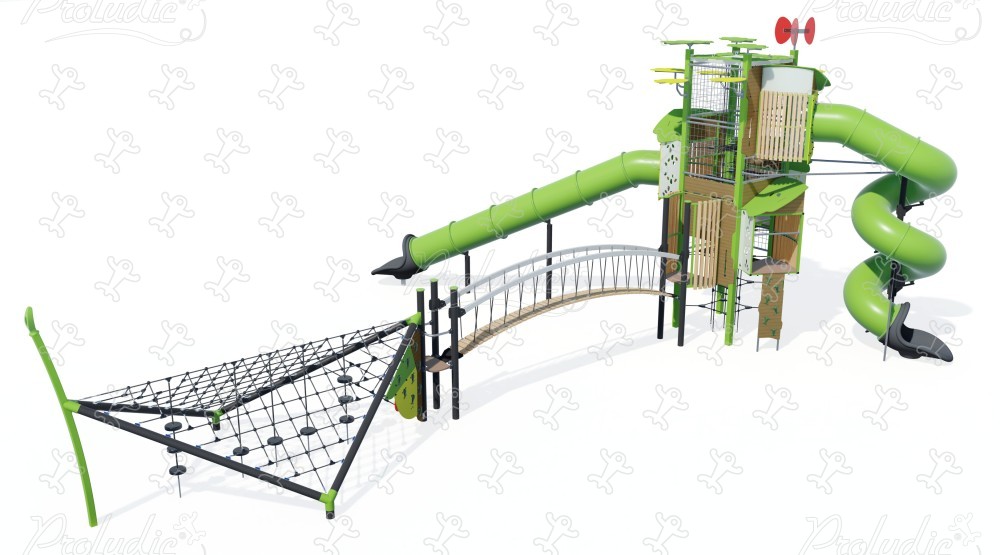

Tower with climbing extension J56105 playgrounds multiplay equipment kanopé image 3d

Tower with climbing extension J56105 playgrounds multiplay equipment kanopé image photo

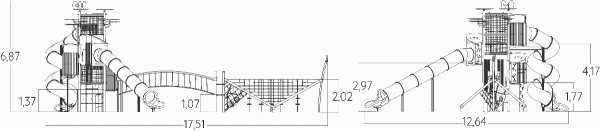

Tower with climbing extension J56105 playgrounds multiplay equipment kanopé image side view

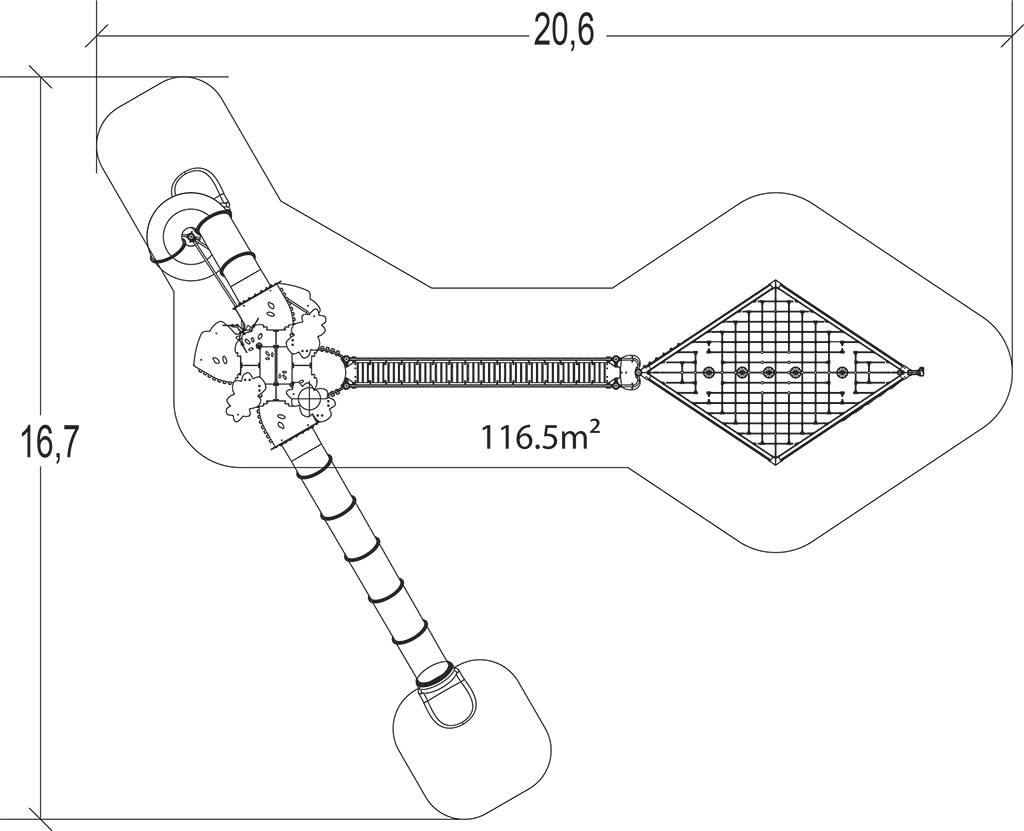

Tower with climbing extension J56105 playgrounds multiplay equipment kanopé image view from above

Materials

The 125mm diameter posts are made of painted galvanised steel. The two-tone grey grained finish has a slightly undulating surface for increased scratch resistance. The caps... are made of injection moulded polyamide. Read more

The 120 x 120mm posts are made of painted galvanised steel, ensuring robustness and durability.

The coloured panels are made from a 13mm thick compact material (HPL). Robust in construction, it has excellent weather and vandal resistance properties.

The slatted fences are produced using post-consumer waste, mainly recycled food and drinks containers (polyethylene, aluminium). This environmental impact reducing... material is an inert and robust compound which is hard-wearing, resistant to UV light and fluctuations in temperature, and able to retain its shape over time. It is also rot-proof, making it a reliable option for outdoor applications. Read more

The wall panels are made of 3mm perforated aluminium sheet coated with a polyester epoxy lacquer.

The tubes are made of 40mm diameter stainless steel, guaranteeing lasting durability and reliability of the equipment.

The panels are made of stainless steel mesh netting, Ø 6mm.

The 16mm diameter ropes are made of galvanised steel cable covered with polyester. The cables are linked together and held in place by injected polyamide spheres.
